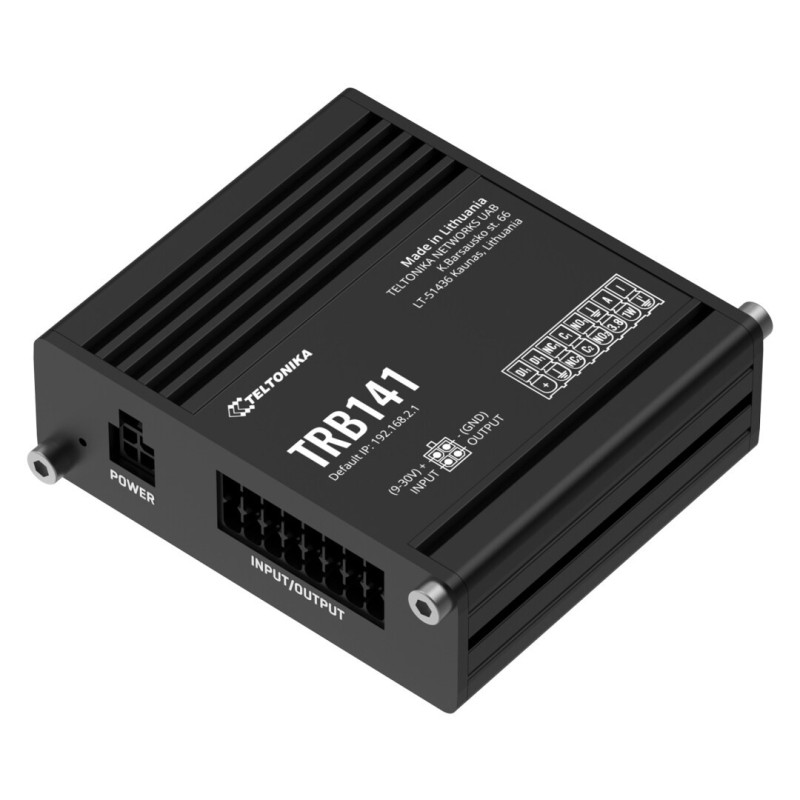

Gateway Teltonika TRB141
Product reference: 26-4779027312620
  • Type: Network adapter
  • Brand: Teltonika
  • Model: TRB141
  • Interface: LTE
  • Connection type: 4G/LTE (Cat1), 3G, 2G
  • Protocols: TCP, VPN
  • Software: RutOS
  • Control: RMS
  • Inputs/outputs: 2× In/Out
  • SIM slot: Yes
  • Connector: SMA
  • Protection class: IP30
  • Industrial
Gateway Teltonika TRB141

Gateway Teltonika TRB141

Product reference: 26-4779027312620
  • Type: Network adapter
  • Brand: Teltonika
  • Model: TRB141
  • Interface: LTE
  • Connection type: 4G/LTE (Cat1), 3G, 2G
  • Protocols: TCP, VPN
  • Software: RutOS
  • Control: RMS
  • Inputs/outputs: 2× In/Out
  • SIM slot: Yes
  • Connector: SMA
  • Protection class: IP30
  • Industrial
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
150,43 €
Last product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • General
  • Mobile module 4G LTE Cat 1 up to 10 DL/5 UL Mbps; 3G up to 384 DL/384 UL kbps; 2G up to 296 DL/236.8 UL kbps
  • 3GPP version Release 12
  • Status IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC
  • SMS SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
  • USSD Supports sending and reading Unstructured Supplementary Service Data messages
  • Block/Allow list Operator block/allow list (by country or individual operators)
  • Multiple PDN Use of multiple PDNs for network access and services
  • Group management Band lock, used band status display
  • SIM PIN code management Setting, changing or disabling SIM PIN
  • APN Auto APN
  • Bridge Direct mobile ISP-to-LAN device connection
  • Transfer Gateway assigns mobile WAN IP to LAN device
  • Route selection Static routing
  • Protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT
  • VoIP gateway support H.323 and SIP-alg NAT helpers for VoIP routing
  • Communication monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP link inspection
  • Firewall Port forward, traffic rules, custom rules, TTL target customization
  • Firewall status page Displays Firewall statistics, rules, and counters
  • Port management View and control device ports, speed, and auto-configuration
  • Network topology Visual network layout showing connected devices
  • DHCP Static/dynamic IP allocation, relay, server configuration, leases with MAC wildcards
  • QoS/SQM Traffic priority by source/destination, service, protocol, port; WMM, 802.11e
  • DDNS Supports > 77 providers, manual configuration available
  • DNS over HTTPS Secure DNS via HTTPS proxy
  • Network backups Mobile, VRRP, Wired auto failover options
  • SSHFS Mount remote file system via SSH
  • Traffic management Real-time monitoring, signal charts, traffic history
  • Authentication Pre-shared key, digital/X.509 certificates, TACACS+, RADIUS, IP/login blocking, time-based login blocking, random password generator
  • Firewall configuration Preconfigured via WebUI, full CLI access, DMZ, NAT, NAT-T, NAT64
  • Burglary prevention DDOS, SSH/HTTP/HTTPS attack prevention, port scan defense
  • VLANs Port and tag-based VLAN separation
  • Mobile quota control Data limits, custom period/start, warnings, phone number
  • WEB filter Blacklist, whitelist for web access control
  • Access control Control access to SSH, Web UI, CLI, Telnet
  • Certificate Manager Create CA, server, client, Let's Encrypt, SCEP certificates
  • OpenVPN Multiple client/server support, 27 encryption methods
  • OpenVPN encryption Supports DES, RC2, DES-EDE, AES (128/192/256-bit) in CBC, CFB, OFB, GCM modes, CAST5, BF, DESX
  • IPsec XFRM, IKEv1/v2 with 14 encryption methods
  • GRE GRE tunnel, GRE over IPsec supported
  • PPTP, L2TP Client/server instances, L2TPv3, L2TP over IPsec
  • Stunnel TLS proxy encryption for clients/servers without code changes
  • DMVPN Scalable IPsec VPN, Phase 2/3, Dual Hub support
  • SSTP SSTP client support
  • ZeroTier ZeroTier VPN client support
  • WireGuard WireGuard VPN client and server support
  • Tinc Encrypted/authenticated/compressed tunnels, client/server support
  • OPC UA Client and Server modes
  • OPC UA connection types TCP
  • Modbus MQTT Gateway Send/receive MODBUS Server data via MQTT
  • MODBUS modes Server, Client
  • MODBUS connection types TCP
  • Custom registers MODBUS TCP block requests for file read/write to extend client functions
  • MODBUS data formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB/LSB); 32-bit: float, INT, UINT (ABCD, DCBA, CDAB, BADC), HEX, ASCII
  • Data to Server protocols HTTP(S), MQTT, Azure MQTT
  • Data to Server features Extract and send parameters from different protocols to one server; LUA scripting support
  • DNP3 fashion Station, Outstation
  • DNP3 connection types TCP
  • DLMS/COSEM protocol DLMS standard for utility meter data exchange
  • DLMS fashions Client
  • DLMS connection types TCP
  • Web API support Teltonika Networks Web API (beta); endpoint documentation available
  • WEB UI HTTP/HTTPS access, status, config, firmware update, CLI, logs
  • PHOTO Firmware update from server, auto-notification
  • SSH SSH v1/v2
  • SMS management SMS status, configuration
  • Call functions Reboot, status, mobile data toggle, output control, answer/hang-up with timer
  • TR-069 Support for OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
  • MQTT features MQTT Broker and Publisher
  • SNMP support SNMP v1/v2/v3, SNMP Trap, brute force protection
  • JSON-RPC HTTP/HTTPS management API
  • RMS Teltonika Remote Management System
  • ThingWorx platform WAN type, IP, operator name, signal strength, network type monitoring
  • Cumulocity platform Monitors model, revision, WAN/IP, Cell ID, ICCID, IMEI, operator, signal, reboots, firmware updates
  • Azure IoT Hub Send parameters to cloud, direct API methods, zero-touch provisioning
  • AWS IoT Core Device API via AWS Jobs support
  • CPU ARM Cortex-A7 1.2 GHz
  • RAM 128 MB DDR2
  • FLASH storage 512MB SPI Flash
  • WEB UI features Update/config profiles, backups, firmware check
  • FOTA update Firmware update supported
  • RMS firmware management Remote firmware/config updates
  • Remembering settings Firmware update without configuration loss
  • Factory reset Restores default settings including IP, PIN, and user data
  • Firmware customization RutOS (OpenWrt based), branding, logos, colors
  • Languages Busybox, Lua, C, C++, Python
  • Developer tools SDK package provided
  • GPL customization Create custom firmware and Web UI
  • Package Manager Install additional device software
  • Inputs 2 x Digital (passive/active), 1 x Isolated, 1 x Analog (4-20 mA), 1 x Configurable; Logic Low: 0-5V, High: 8-30V
  • Outputs 2 x Relay (latching/non-latching), 1 x Configurable open collector (max 30 V, 300 mA)
  • Event trigger Email, RMS, SMS
  • I/O switch Set I/O conditions to trigger events
  • Power connector 4-pin industrial DC socket
  • Power input 9-30 VDC, reverse polarity and surge protection > 31 VDC 10 µs max
  • Energy consumption < 5W
  • Physical interfaces 3 x Digital Inputs, 1 x Analog input, 2 x Relays (16-pin), 2 x I/O pins (4-pin power), 1 x SMA for LTE, 1 x micro USB, 1 x SIM slot (Mini SIM - 2FF), 1 x 1-Wire
  • Status indicators LED 3 x Connection type, 5 x Signal strength, 1 x Power
  • Reset button Reboot, user reset, factory reset
  • Housing material Aluminum housing
  • Dimensions (W × H × D) 74.5 x 25 x 64.4 mm
  • Weight 136 g
  • Installation options DIN rail, wall, flat surface (kits required)
  • Operating temperature -40°C to 75°C
  • Operating humidity 10% to 90% non-condensing
  • Protection against dust and moisture IP30
  • Regulatory certifications CE, UKCA, EAC, UCRF, ANRT, Kenya, ICASA, Anatel, NOM, RCM, Giteki
  • Approved operator Deutsche Telekom AG
  • EMC compliance Draft EN 301 489-1 V2.2.0, EN 301 489-52 V1.1.0
  • EMC immunity EN 61000-4-2:2009 (ESD), EN IEC 61000-4-3:2006+A1+A2 (Radiated), EN 61000-4-4:2012 (EFT), EN 61000-4-5:2014 (Surge), EN 61000-4-6:2014 (CS), EN 61000-4-11:2004 (DIP)
  • RF standards EN 301 511 V12.5.1, EN 301 908-1/2/13 V13.1.1
  • Safety standards EN 62368-1:2014+A11:2017, EN IEC 62232:2017, EN 50385:2017, AS/NZS 62368.1:2018, IEC 62368-1:2018

ManufacturerTeltonika Networks
Manufacturer codeLTETRB141
Weight0.232 kg
