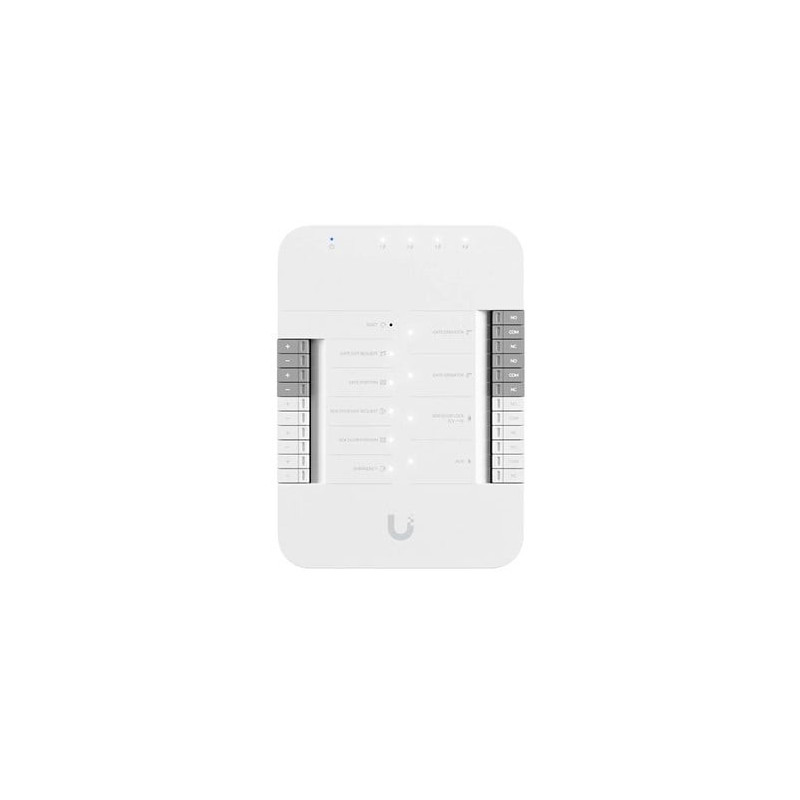

Gateway controller Ubiquiti UniFi UA-Hub-Gate
Product reference: 26-UBIQUAHUBGATE
  • Type: Gate controller
  • Model: UA-Hub-Gate
  • Brand: UBIQUITI
  • Connectors: 5x10/100/1000 Base-T
  • PoE power: PoE++ (22W with PoE, 50W without PoE)
  • Power supply: 50V DC, 1A
  • Operating temperature: -30...+60°C
Gateway controller Ubiquiti UniFi UA-Hub-Gate

Gateway controller Ubiquiti UniFi UA-Hub-Gate

Product reference: 26-UBIQUAHUBGATE
  • Type: Gate controller
  • Model: UA-Hub-Gate
  • Brand: UBIQUITI
  • Connectors: 5x10/100/1000 Base-T
  • PoE power: PoE++ (22W with PoE, 50W without PoE)
  • Power supply: 50V DC, 1A
  • Operating temperature: -30...+60°C
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
301,66 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • Home
  • Size 175 x 126 x 26 mm (6.9 x 5 x 1")
  • Weight 460g (1lb)
  • Housing material Polycarbonate
  • Installation Din rail (Included)
  • Network interface (5) 10/100/1000 Base-T
  • Power method PoE++
  • Energy certificates UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU
  • Maximum power consumption Without PoE output: 22W, With PoE output: 50W
  • PoE input 50V DC, 1A
  • PoE output PoE passthrough, (4) PoE, 50V DC, Max. 28W
  • LED White/blue (Learn more)
  • Button (1) Factory reset
  • Digital input Gate exit request, gate position, side door exit request, side door position, emergency
  • De-energized output relay (2) Operator: rated 30V DC, up to 1A, (1) Aux: rated 30V DC, up to 1A
  • Output relay Side door lock: 12V DC, up to 1A
  • Recommended max. cable length for door locks UACC-Cable-DoorLockRelay: 18 AWG = 100 m (328 ft), 20 AWG = 66 m (217 ft), 22 AWG = 42 m (138 ft), 24 AWG = 25 m (82 ft)
  • Cable length UA-Lock-Electric (400mA) 18 AWG = 100 m (328 ft), 20 AWG = 66 m (217 ft), 22 AWG = 42 m (138 ft), 24 AWG = 25 m (82 ft)
  • Cable length UA-Lock-Magnetic-270kg (800mA) 18 AWG = 46 m (151 ft), 20 AWG = 30 m (98 ft), 22 AWG = 20 m (66 ft), 24 AWG = 12 m (29 ft)
  • Cable length UA-Lock-Magnetic-540kg (500mA) 18 AWG = 80 m (262 ft), 20 AWG = 51 m (167 ft), 22 AWG = 32 m (105 ft), 24 AWG = 20 m (66 ft)
  • Cable length for other locks (1A) 18 AWG = 36 m (118 ft), 20 AWG = 24 m (79 ft), 22 AWG = 15 m (49 ft), 24 AWG = 9 m (30 ft)
  • PoE Cable Requirements Cable 5e cabling is the minimum performance category recommended. The performance category used should match the transmission speed required at the installation site. The minimum conductor gauge allowed to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm²) for patch cords; 24 AWG (0.21 mm²) for horizontal or riser cable.
  • Work environment Indoor use only with device itself, Outdoor use with waterproof junction box
  • Operating ambient temperature -30 to 60° C (-22 to 104° F)
  • Ambient humidity 5 to 90% non-condensing
  • Software information The software version of a product can be checked at https://unifi.ui.com
  • UL 294 level Destructive attack: Level I, Line security: Level I, Endurance: Level I, Standby power: Level I
  • UL 294 Statement Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
  • CAN/ULC-60839-11-1 class Grade assignment: I
  • Certificates CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

ManufacturerUbiquiti
Manufacturer codeUBIQUAHUBGATE
Weight0.478 kg
