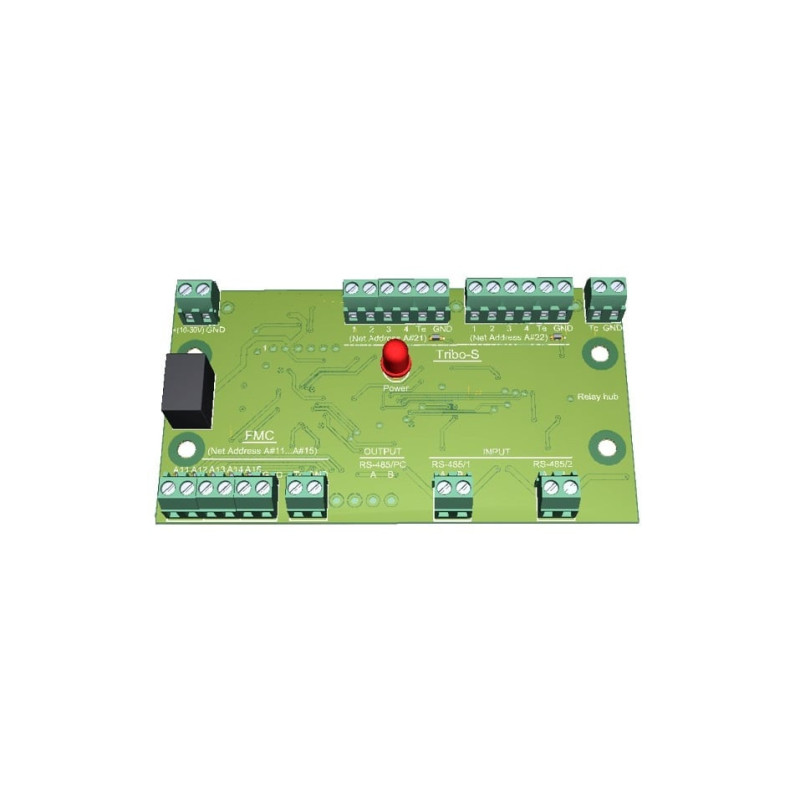

Forteza Relay hub is designed to connect FMC 24 Pro and TRIBO-S to a centralized security system
Product reference:
26-RELAYHUB
- Relay hub is designed to connect FMC 24 Pro and TRIBO-S to a centralized security system
- Uses the RS-485 interface
- The device allows you to control seven UPSs via two independent RS-485 interface lines up to 1200 m long (using category 5 UTP/FTP cable)
Forteza Relay hub is designed to connect FMC 24 Pro and TRIBO-S to a centralized security system
Product reference:
26-RELAYHUB
- Relay hub is designed to connect FMC 24 Pro and TRIBO-S to a centralized security system
- Uses the RS-485 interface
- The device allows you to control seven UPSs via two independent RS-485 interface lines up to 1200 m long (using category 5 UTP/FTP cable)
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
- Home
- Number of RS-485 interface lines 2 pcs.
- Information transfer rate 57600
- The amount of A in the RS-485 interface lines 7
- Rs-485 interface line length (without repeater) By 1200m
- Supply voltage 10-30V
- Consumption current 20mA
- Standby time after power supply 20s
- Dimensions 95x50x20mm
- Weight 40g
- Average product life 8 years old
| Manufacturer | Forteza |
| Manufacturer code | RELAYHUB |
| Weight | 0.000000 kg |
