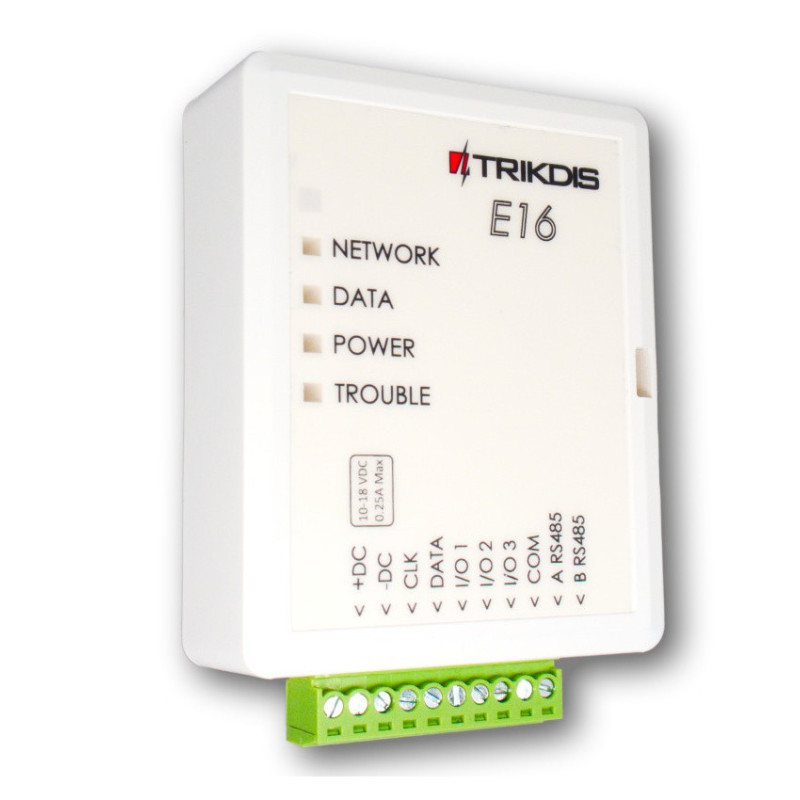

Ethernet communicator E16 Trikdis
Product reference:
26-REME16
- The Ethernet communicator E16 can be directly connected to the DSC, Paradox, UTC Interlogix (CADDX), Innerrange, Texecom, Honeywell,Crow and Pyronix security panels.
- The communicator can transmit complete event information to the security service monitoring station receiver.
- The communicator works with the Protegus app. With Protegus, users can control their alarm system remotely and receive notifications about events.
Ethernet communicator E16 Trikdis
Product reference:
26-REME16
- The Ethernet communicator E16 can be directly connected to the DSC, Paradox, UTC Interlogix (CADDX), Innerrange, Texecom, Honeywell,Crow and Pyronix security panels.
- The communicator can transmit complete event information to the security service monitoring station receiver.
- The communicator works with the Protegus app. With Protegus, users can control their alarm system remotely and receive notifications about events.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
| Parameters | Description |
| Dual-purpose terminal [input/output] | 3, can be set as either NC; NO; NC/EOL; NO/EOL; NC/DEOL; NO/DEOL (2.2 kΩ) type inputs or open collector (OC) type outputs with current up to 0.15 A, 30 VDC max. Expandable with OK series expanders. |
| Power source voltage | 10-18 V DC |
| Current consumption | 100 mA (on standby) Up to 250 mA (while sending data) |
| Ethernet connection | IEEE802.3, 10 Base-T, RJ45 socket |
| Transfer protocols | TRC, DC-09_2007, DC-09_2012 |
| Memory | Up to 60 messages |
| Change settings | With TrikdisConfig computer program remotely or locally via USB Mini-B port |
| Operating environment | Temperature from -10 °C to 50 °C, relative humidity - up to 80% at +20 °C |
| Dimensions | 88 x 65 x 26 mm |
| Weight | 80 g |
| Manufacturer | Trikdis |
| Manufacturer code | REME16 |
| Weight | 0.076 kg |
