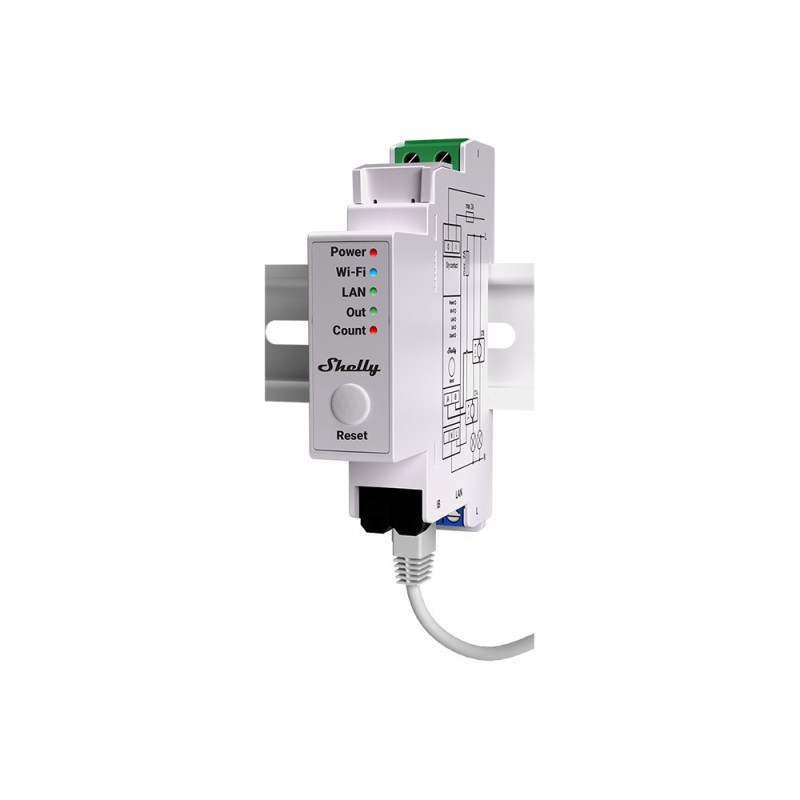

Energy meter Shelly Pro EM-50 (Wi-Fi, LAN, BT, 2 channels, DIN)
Product reference: 26-3800235268148
  • Type: Energy meter
  • Brand: Shelly
  • Model: Pro EM-50
  • Channels: 2
  • Phases: 1
  • Connection: Wi-Fi, LAN, Bluetooth
  • Mounting: DIN rail
  • Contactor control
Energy meter Shelly Pro EM-50 (Wi-Fi, LAN, BT, 2 channels, DIN)

Energy meter Shelly Pro EM-50 (Wi-Fi, LAN, BT, 2 channels, DIN)

Product reference: 26-3800235268148
  • Type: Energy meter
  • Brand: Shelly
  • Model: Pro EM-50
  • Channels: 2
  • Phases: 1
  • Connection: Wi-Fi, LAN, Bluetooth
  • Mounting: DIN rail
  • Contactor control
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
65,29 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • Specifications
  • Type Value
  • Physical
  • Size (Height × Width × Depth) 94x19x69 ±0.5 mm / 3.70x0.75x2.71 ±0.02 in
  • Weight 63 ±1g / 2.22 ±0.05oz
  • Installation DIN rail
  • Maximum torque of screw terminals 0.4 Nm / 4.43 lbin
  • Wire cross-sectional area 0.5 to 2.5 mm² / 20 to 14 AWG (solid, stranded and bootlace lugs)
  • Length of stripped wire insulation 6 to 7 mm / 0.24 to 0.28 in
  • Housing material Plastic
  • Color White
  • Environmental
  • Ambient temperature -20 °C to 40 °C / -5 °F to 105 °F
  • Humidity 30% to 70% RH
  • Maximum height 2000 m / 6562 ft
  • Electrical
  • Power supply voltage AC 100 - 260V, 50/60Hz
  • Power supply voltage DC N/A
  • Energy consumption < 3W
  • Output circuit ratings
  • Max switching voltage AC 240V
  • Max switching voltage DC N/A
  • Max switching current 2 A
  • Sensors, meters
  • Internal temperature sensor Yes
  • Voltmeter (RMS) 100 - 260V
  • Voltmeter accuracy ±1%
  • Ammeters (RMS via CT) 0 - 50A
  • Ammeter accuracy ±1% (5 - 50 A), ±2% (0 - 5 A)
  • Power and energy meters Active and apparent power Active and apparent energy Power factor
  • Measurement data storage At least 60 days of 1 min data resolution
  • Data export CSV for PQ recorded values JSON format export through RPC
  • Radio
  • RF band 2400 - 2495 MHz
  • Max. RF power lt;20 dBm
  • Wi-Fi protocol 802.11 b/g/n
  • Wi-Fi range Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
  • Bluetooth protocol 4.2
  • Bluetooth operating range Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
  • MCU
  • CPU ESP32-D0WDQ6
  • Flash (memory) 16MB
  • Firmware capabilities
  • Webhooks (URL actions) 20 with 5 URLs per hook
  • Scripting Yes
  • MQTT Yes
  • CoAP No

ManufacturerShelly
Manufacturer codeSHELLYPROEM50
Weight0.16 kg
