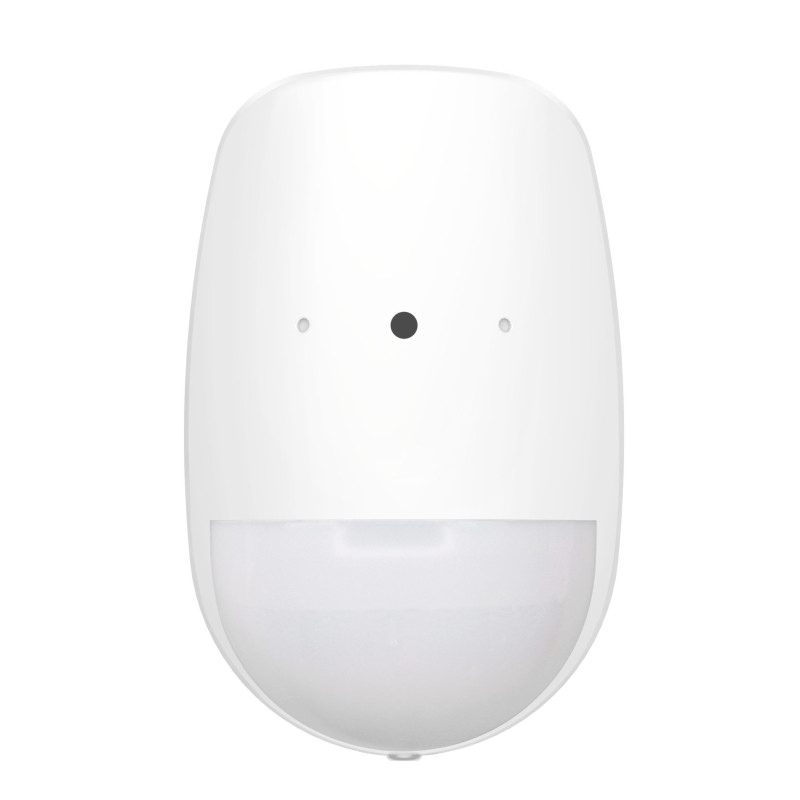

Ellipse motion sensor with glass break detector Hikvision ALARM DS-PDPG12P-EG2
Product reference: 26-6931847127930
  • PIR Detection Range: 12m / 85.9°
  • Glass breaking range: 8m / 120°
  • Up to 30 kg animal protection
  • Reliable EOL resistors
  • 9V -16 V wide voltage range with reverse polarity protection
Ellipse motion sensor with glass break detector Hikvision ALARM DS-PDPG12P-EG2

Ellipse motion sensor with glass break detector Hikvision ALARM DS-PDPG12P-EG2

Product reference: 26-6931847127930
  • PIR Detection Range: 12m / 85.9°
  • Glass breaking range: 8m / 120°
  • Up to 30 kg animal protection
  • Reliable EOL resistors
  • 9V -16 V wide voltage range with reverse polarity protection
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
22,87 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
Not available
  • Fixing
  • Fixing method Passive Infrared; Acoustic Sensor
  • Capture range 12m
  • Locking angle 85.9°
  • Capture zones 52
  • Capture speed 0.3～2m/s
  • Protection against animal capture 30Kg
  • PIR sensitivity Car,Pet
  • White filter 6500lux
  • Glass type Float; Plate; Tampered; Wired; Laminated Leaded; Double Glazing
  • Glass breakage range 8m
  • Glass thickness 2.4mm to 6.4mm
  • Glass break sensor Potentiometer Adjustment
  • Digital temperature compensation Support
  • Glass size 0.3m x 0.3m to 3m x 3m
  • Protection against ground-crawling creatures Support
  • Features
  • Digital processing Support
  • Closed optics Support
  • Protection against counterfeiting Front
  • Interface
  • Alarm output Normally Closed
  • LED indicator Green(PIR),Red(BG),Blue(alarm)
  • Transmission
  • Transmission method Wired
  • Electrical characteristics
  • Energy consumption 36mA Max
  • Power supply 9 to 16 VDC
  • Rated voltage 12VDC
  • Home
  • Working conditions (temperature) -10 °C to 55 °C (14 °F to 131 °F)
  • Storage conditions (temperature) -20 °C to 60 °C (-4 °F to 140 °F)
  • Working conditions (humidity) 10% to 90%
  • Size 65.5mm×103mm×48.5mm
  • 98.5g
  • Mounting height 1.8 to 2.4m
  • Installation method Wall
  • Application Indoor
  • Holder Optional Wall Ceiling Accessory

ManufacturerHikvision
Manufacturer codeDSPDPG12PEG2
Weight0.1 kg
