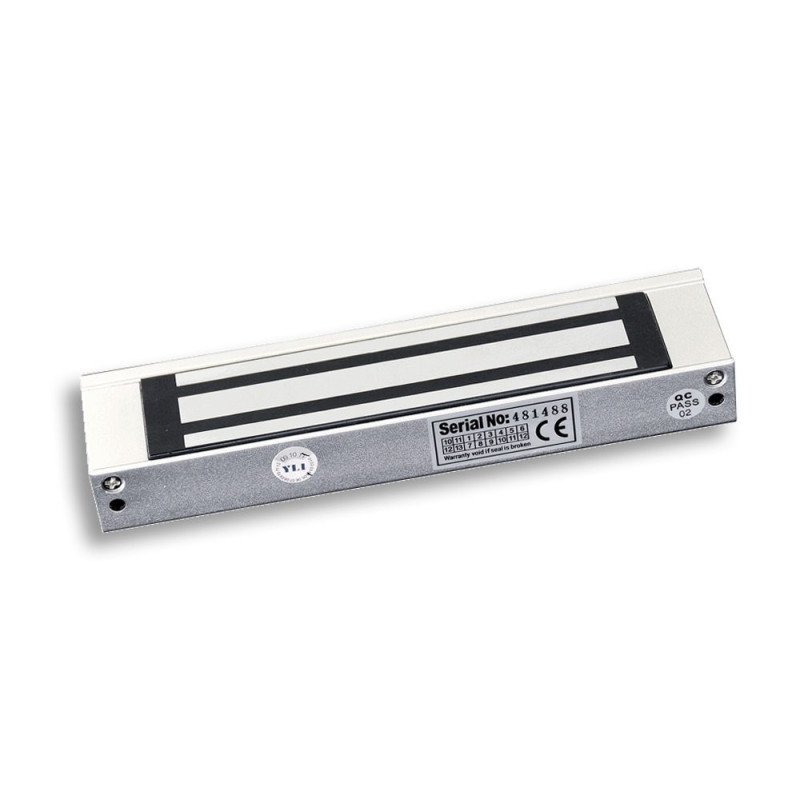

Electromagnet YM-180 (180kg)
Product reference:
26-PSMGYM180
- Electromagnetic lock
- Attached
- Maintained traction force 180kg
- Aluminum body
Electromagnet YM-180 (180kg)
Product reference:
26-PSMGYM180
- Electromagnetic lock
- Attached
- Maintained traction force 180kg
- Aluminum body
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
Not available
- Home
- Electromagnet measurements 170Lx41.4Wx20.5H(mm)
- Plate dimensions 130Lx33Wx9.3H(mm)
- Holding force 180kg(350Lbs)
- Input voltage 12/24VDC+10%
- Current 12V/300mA 24V/150mA
- Suitability Wooden door, Glass door, Metal door, Fireproof door
- Surface temperature ≤+20
- Working temperature -10~+55 (14-131F)
- Relative humidity 0~90%(non-condensing)
- Cover surface Anodized aluminum
- Lock surface Zinc
- Plate surface Zinc
- Weight 1.2 kg
| Manufacturer | Power Bubble |
| Manufacturer code | PSMGYM180 |
| Weight | 1.2 kg |
