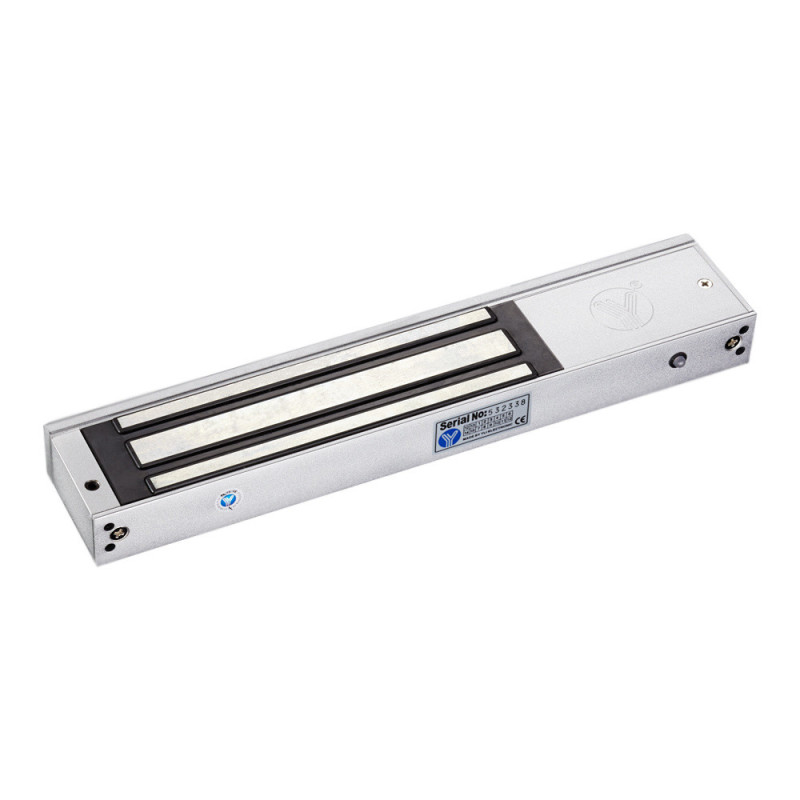

Electromagnet PBM-350(LED) (350kg)
Product reference: 26-PSMGYM350
  • Single door electromagnet lock, suitable for wooden, glass, metal doors, small dimensions and easy to install.
  • IP65
Electromagnet PBM-350(LED) (350kg)

Electromagnet PBM-350(LED) (350kg)

Product reference: 26-PSMGYM350
  • Single door electromagnet lock, suitable for wooden, glass, metal doors, small dimensions and easy to install.
  • IP65
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
51,65 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
Measurements285Lx55Wx27.5H(mm)
Plate dimensions190Lx45Wx11H(mm)
Traction force350kg(800Lbs)
Input voltage12 or 24VDC
Current12V/480mA or 24V/240mA
Signal outputDry Contact, Max Rating of Contact Current 3A
LEDRed indicates the door is unlocked, Green indicates the door is locked
SuitableWooden door, Glass door, Metal door, Fireproof door
Surface temp.≤+20
Working temperature-10～+55 (14-131F)
Relative humidity0~95%(non-condensing)
Cover surfaceAnodized aluminum
Lock surfaceZinc
Plate surfaceZinc
Weight2.7kg

ManufacturerPower Bubble
Manufacturer codePSMGYM350
Weight2.441 kg
