Door access controller Ubiquiti UniFi UA-Hub-Door
Product reference:
26-UBIQUAHUBDOOR
- Type: Door access controller
- Model: UBIQUITI UA-Hub-Door
- Network ports: 5x 10/100/1000 Base-T
- Power supply: PoE++
- Power consumption: Without PoE - 30W, with PoE - 50W
- Input voltage: 50V DC, 1A
- PoE outputs: 4x PoE, 50V DC
- Operating temperature: 0°C to 40°C
Door access controller Ubiquiti UniFi UA-Hub-Door
Product reference:
26-UBIQUAHUBDOOR
- Type: Door access controller
- Model: UBIQUITI UA-Hub-Door
- Network ports: 5x 10/100/1000 Base-T
- Power supply: PoE++
- Power consumption: Without PoE - 30W, with PoE - 50W
- Input voltage: 50V DC, 1A
- PoE outputs: 4x PoE, 50V DC
- Operating temperature: 0°C to 40°C
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
- Home

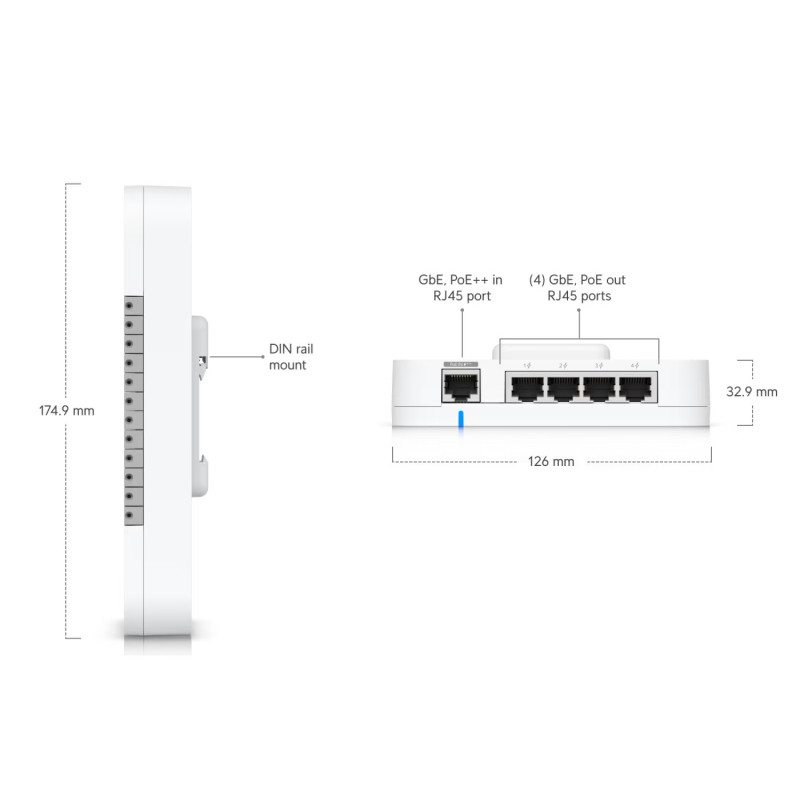

- Size 174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3")
- Weight 363g (12.8oz)
- Housing material Polycarbonate
- Mounting material Polycarbonate
- Network interface (5) 10/100/1000 Base-T
- Power method PoE++, UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU
- Maximum power consumption Without PoE output: 30W, With PoE output: 50W
- PoE input 50V DC, 1A
- PoE output PoE passthrough, (4) PoE, 50V DC, total 20W
- LED White/blue (Learn more)
- Button (1) Factory reset
- Digital input Request to exit/request to enter/remote release/door position sensor
- De-energized output relay Lock: 30V DC, 1A, Aux: 30V DC, 1A
- Powered output relay Lock: 12V DC, 1A, Aux: 12V DC, 0.33A
- 12V DC, 0.33A PoE cabling requirements Cable 5e cabling is the minimum performance category recommended. The performance category used should match the transmission speed required at the installation site. The minimum conductor gauge allowed to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm²) for patch cords; 24 AWG (0.21 mm²) for horizontal or riser cable.
- Work environment Indoor use only
- Operating ambient temperature 0 to 40°C (32 to 104°F)
- Ambient humidity 5 to 95% non-condensing
- UL 294 level Destructive attack: Level I, Line security: Level I, Endurance: Level I, Standby power: Level I
- UL 294 Statement Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
| Manufacturer | Ubiquiti |
| Manufacturer code | UBIQUAHUBDOOR |
| Weight | 0.426 kg |
