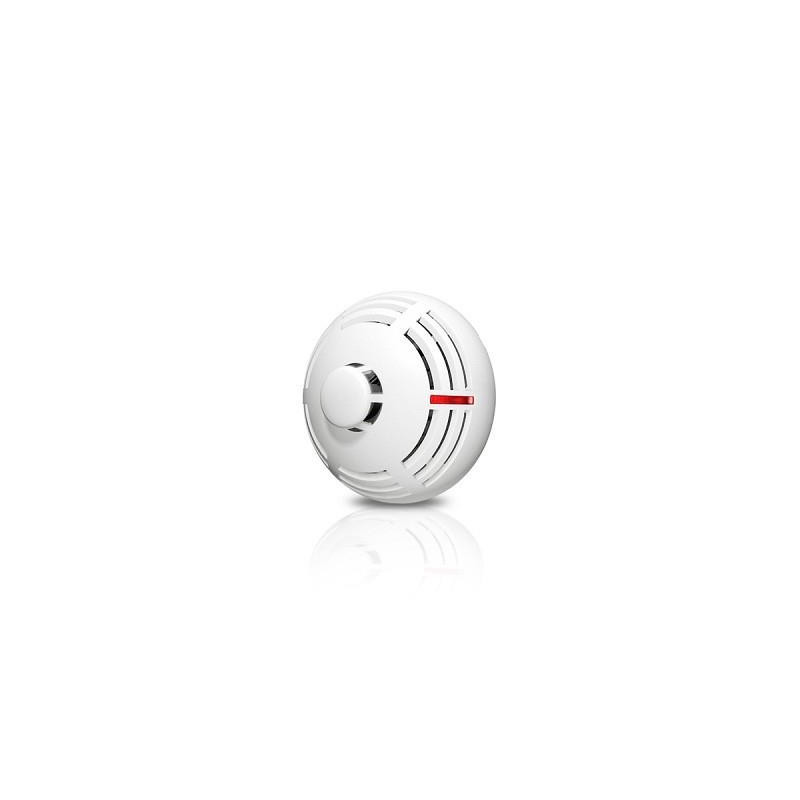

DETECTOR SMOKE FIRE TEMP. / TSD-1 SATEL

The TSD-1 is a point detector designed to detect the early stages of a developing fire. For this purpose, it is equipped with a photoelectric sensor of visible smoke, as well as rate of rise temperature sensor. The unique design of the measuring chamber provides high sensitivity and omni-directionality, while a precise Hexamesh stainless steel filter protects the chamber from ingress of contamination and small insects. Detector configuration with DIP-switches and built-in parametric end of line resistors facilitate connection of the detector to virtually any control panel with a 12 V power supply.

• unique Swirl chamber for increased smoke sensitivity
• selectable operating mode (smoke, heat, multisensor)
• line type configuration (NO/NC/2EOL) with DIP switches
• precision stainless steel Hexamesh filter
• smoke chamber dirt build-up indicator
• easy installation with detachable base
• compatible with all 12 V alarm panels
• IP code: IP20
