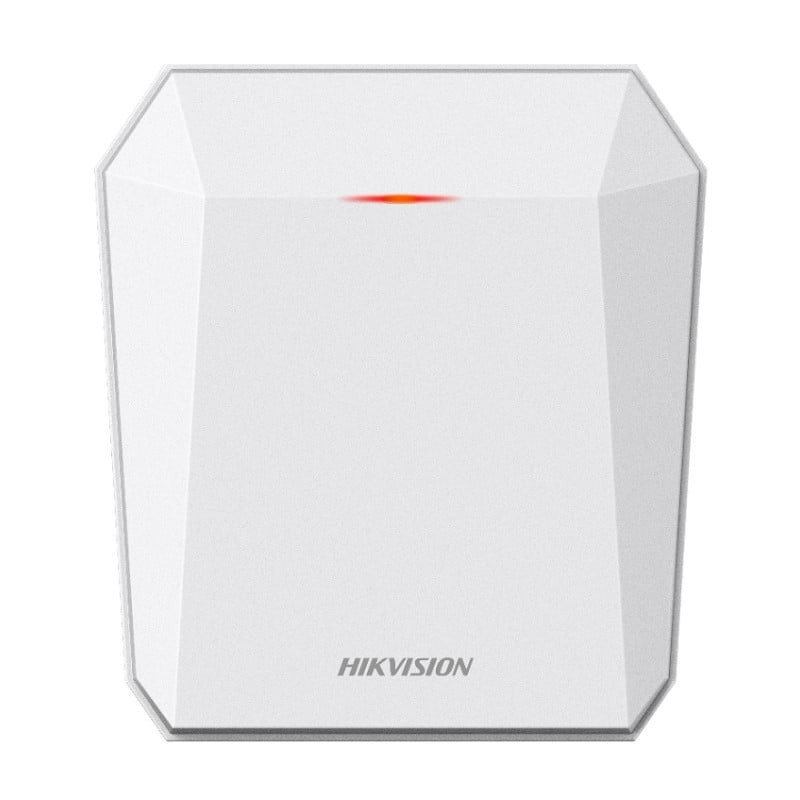

Detector Hik-vision DS-PRP100
Product reference: 26-6941264032601
  • Detector Hik-vision DS-PRP100
  • Type: Radar detector
  • Number of objects: Up to 32 objects
  • Outputs: 4 relay outputs
  • Maximum distance: 100m
  • Viewing angle: 6.2°
  • PTZ support: Up to 4 PTZ
  • Frequency: 24GHz
  • Operating temperature: -40°C ~ 65°C
  • Protection class: IK09, IP67

Detector Hik-vision DS-PRP100

Product reference: 26-6941264032601
  • Detector Hik-vision DS-PRP100
  • Type: Radar detector
  • Number of objects: Up to 32 objects
  • Outputs: 4 relay outputs
  • Maximum distance: 100m
  • Viewing angle: 6.2°
  • PTZ support: Up to 4 PTZ
  • Frequency: 24GHz
  • Operating temperature: -40°C ~ 65°C
  • Protection class: IK09, IP67
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
3 427,58 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • Detection performance
  • Velocity range -8.8 to 8.8 m/s
  • Range measurement accuracy ± 1.2m
  • Radar transmit power ＜20dBm
  • Date fresh rate 10 frames/s
  • Detection angle 6.2°
  • Detection distance 100m
  • Microwave frequency 24.05 ~ 24.25 GHz
  • Max. Target number 32
  • Software features
  • Schedule Auto Arm/Disarm Schedule
  • Trigger line Up to 4 Trigger Lines
  • Configuration tools Web / iVMS-4200
  • Firmware update tools Web / iVMS-4200
  • Network encryption AES-128 encryption
  • Exception detection Communication failure alarm, anti-moving alarm and tampering alarm
  • Hardware features
  • Serial port RS232
  • Protection against counterfeiting Tamper alarm
  • Network interface 1 RJ45 10M/100M self-adaptive, PoE
  • Electrical characteristics
  • Power supply Standard PoE / 12VDC
  • Power interface 802.3at standard PoE or 12VDC
  • Working conditions humidity 10% to 90%
  • Working condition temperature -40 to 65
  • Energy consumption ≤ 8W
  • Screen
  • Indicator Dual-color LED
  • Home
  • In the circle IK09
  • IP rating IP67
  • Installation method Multiple installations with different brackets
  • Mounting height

    Installation height: 1.2m to 4m;

    Recommended height: 2.5m
  • Dimension(WxHxD) 206 mm × 228 mm × 61 mm (8.11" × 8.98" × 2.40")
  • Anti-corrosion NEMA 4X
  • Application scenario Outdoor
  • Housing

    Front panel: plastic

    Rear panel: metallic aluminum
  • Color White
  • Holder Multiple brackets
  • Weight 1.74 kg
  • Device management
  • Alarm output 4 Relay Outputs(NO/NC)
  • Zones 16
  • Relay output 4-ch: 0.5A/125VAC or 1A/30VDC
  • Report method
  • Protocols HTTP, DNS, NTP, TCP, UDP, DHCP, ARP, SSH

ManufacturerHikvision
Manufacturer codeDSPRP100
Weight2.4 kg
