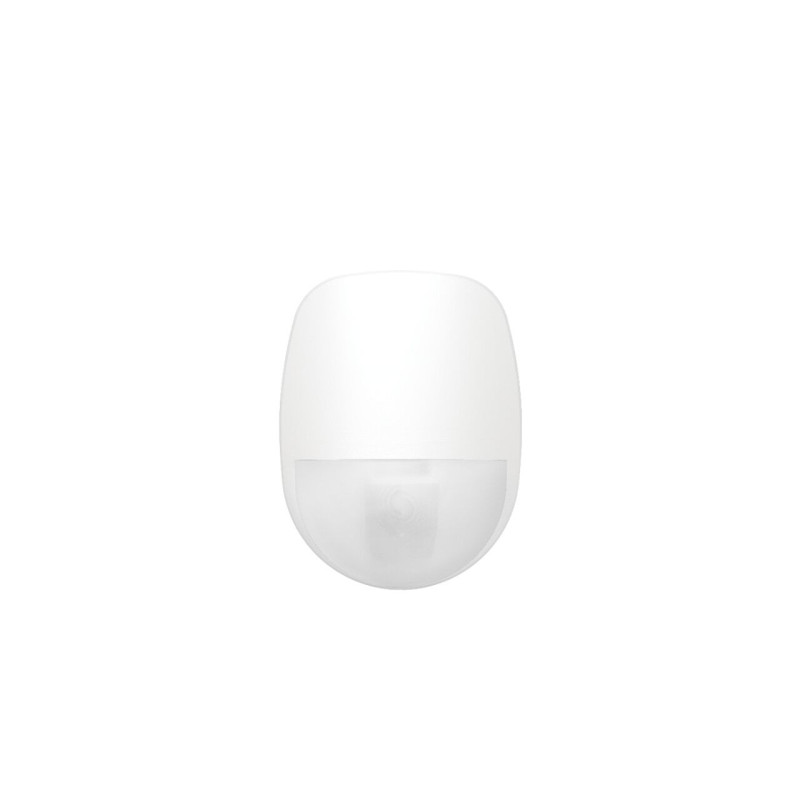

Curtain motion sensor Hik-vision Ellipse ALARM DS-PDC15-EG2
Product reference: 26-DSPDC15EG2B
  • Up to 15 m capture range
  • Digital temperature compensation
  • Optional EOL resistors for signaling and anti-tamper wiring
  • Enclosed optics to protect against insects
  • Approvals (EN Grade2/CE/FCC/CB/IC/RCM)
  • 9 to 16 V wide voltage range with reverse polarity protection
  • New
Užuolaidinis judesio jutiklis Hik-vision Ellipse ALARM DS-PDC15-EG2

Curtain motion sensor Hik-vision Ellipse ALARM DS-PDC15-EG2

Product reference: 26-DSPDC15EG2B
  • Up to 15 m capture range
  • Digital temperature compensation
  • Optional EOL resistors for signaling and anti-tamper wiring
  • Enclosed optics to protect against insects
  • Approvals (EN Grade2/CE/FCC/CB/IC/RCM)
  • 9 to 16 V wide voltage range with reverse polarity protection
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
749 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
Not available
  • Fiksavimas
  • Fiksavimo metodas Passive Infrared
  • Fiksavimo diapazonas 15m
  • Fiksavimo kampas 6.3°
  • Fiksavimo zonos 18
  • Fiksavimo greitis 0.3～2m/s
  • Baltos šviesos filtras 6500lux
  • Skaitmeninis tempratūros kompesavimas Support
  • Apsauga nuo klastojimo Support
  • Funkcjos
  • Skaitmeninis kompensavimas Support
  • Uždara optika Support
  • Apsauga nuo klastojimo Front
  • Sąsaja
  • Signalizacijos išvestis Normally Closed
  • LED indikatorius Blue(Alarm)
  • Perdavimas
  • Perdavimo metodas Wired
  • Elektrinės charakteristikos
  • Maitinimo šaltinis 9 - 16 VDC
  • Įtampa 12 VDC
  • Energijos sunaudojimas 11mA Max
  • Pagrindinis
  • Darbo sąlygos (temperatūra) -10 °C to 55 °C (14 °F to 131 °F)
  • Sandėliavimo sąlygos -20 °C to 60 °C (-4 °F to 140 °F)
  • Darbo sąlygos (drėgmė) 10% to 90%
  • Dydis(WxHxD) 65.4mm x 86.8mm x 45.5mm
  • Svoris 68 g
  • Montavimo auštis 2.4 m to 3.6 m
  • Montavimo metodas Wall
  • Naudojimas Indoor
  • Laikiklis Optional wall & ceiling accessory

Gamintojo kodas DSPDC15EG2B
Gamintojas Hikvision
Svoris 0.067 kg
