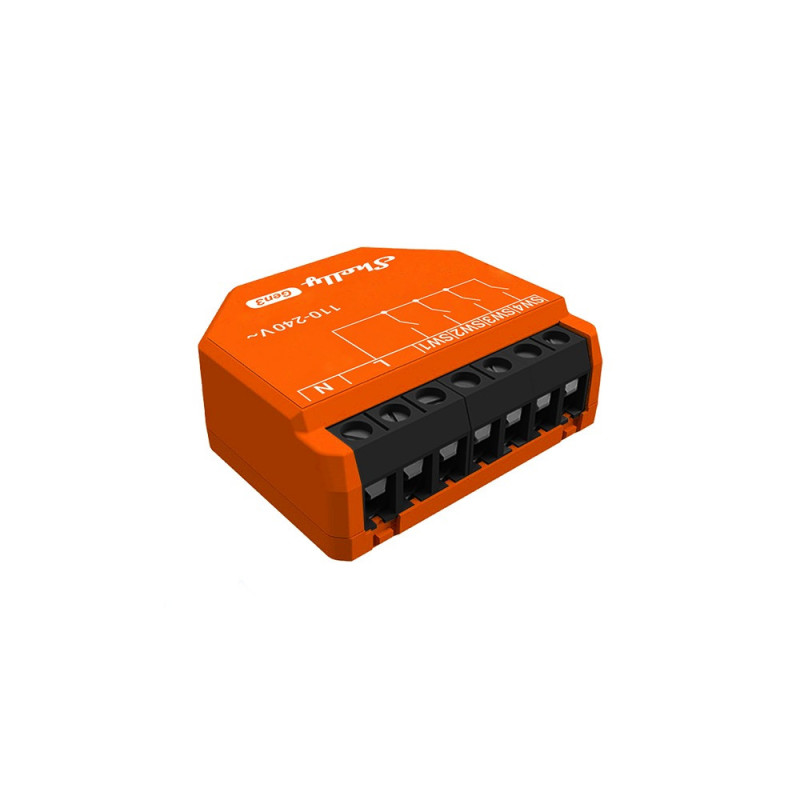

Controller Shelly i4 Gen3 (Wi-Fi, BT, 4 inputs)
Product reference:
26-SHELLYI4HEN3
- Type: Controller
- Brand: Shelly
- Model: i4 Gen3
- Inputs: 4 digital
- Connectivity: Wi-Fi, Bluetooth
Controller Shelly i4 Gen3 (Wi-Fi, BT, 4 inputs)
Product reference:
26-SHELLYI4HEN3
- Type: Controller
- Brand: Shelly
- Model: i4 Gen3
- Inputs: 4 digital
- Connectivity: Wi-Fi, Bluetooth
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
Not available
- Physical
- Size (Height × Width × Depth) 37x42x16 / 1.46x1.65x0.63
- Weight 19g / 0.67oz
- Maximum torque of screw terminals 0.4 Nm / 3.5 lbin
- Wire cross-sectional area 0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules)
- Length of stripped wire insulation 6 to 7 mm / 0.24 to 0.28 in
- Installation Wall box
- Housing material Plastic
- Body color Orange
- Terminal Color Black
- Environmental
- Ambient operating temperature -20 °C to 40 °C / -5 °F to 105 °F
- Humidity 30% to 70% RH
- Maximum height 2000 m / 6562 ft
- Electrical
- Power supply 110 - 240 V~ 50/60 Hz
- Energy consumption < 1W
- Sensors, meters
- Internal temperature sensor Yes
- Wi-Fi
- Protocol 802.11 b/g/n
- RF band 2401 - 2483 MHz
- Max. RF power < 20 dBm
- Distance Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
- Bluetooth
- Protocol 4.2 with BLE
- RF band 2400 - 2483.5 MHz
- Max. RF power < 4 dBm
- Distance Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
- Microcontroller unit
- CPU ESP-Shelly-C38F
- Flash (memory) 8MB
- Firmware capabilities
- Webhooks (URL actions) 20 with 5 URLs per hook
- Scripting Yes
- MQTT Yes
| Manufacturer | Shelly |
| Manufacturer code | SHELLYI4HEN3 |
| Weight | 0.017 kg |
