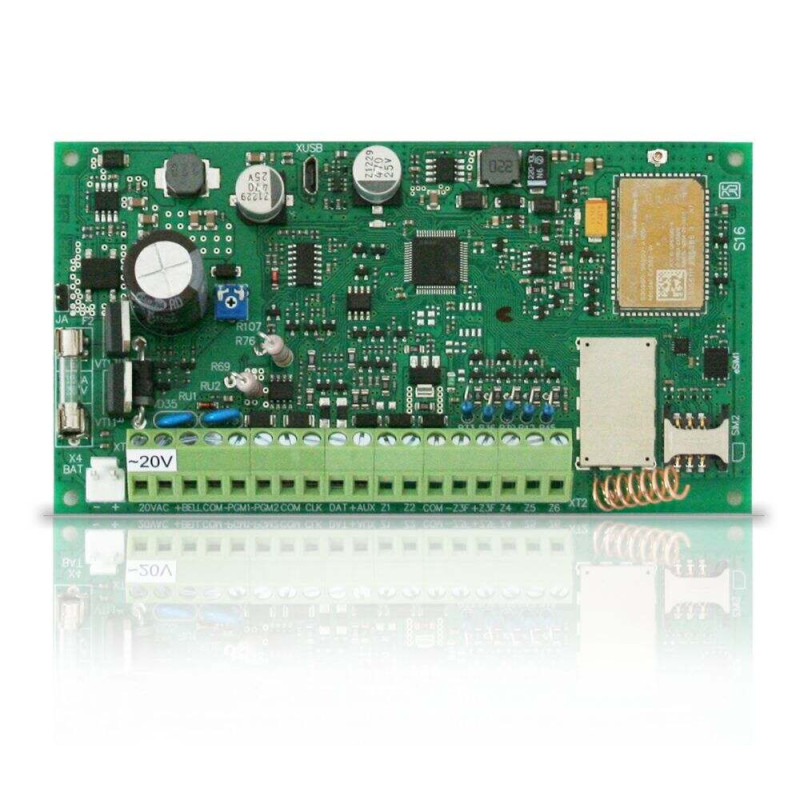

Control panel S32eT SECOLINK
Product reference:
26-CASS32ET
- 5/10 zones
- Maximum 32 zones
- 3PGM
- 4 areas
- 16 timers
- Integrated GSM modem with eSIM card and 2-year plan
Control panel S32eT SECOLINK
Product reference:
26-CASS32ET
- 5/10 zones
- Maximum 32 zones
- 3PGM
- 4 areas
- 16 timers
- Integrated GSM modem with eSIM card and 2-year plan
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
- Home
- Security system concept Hybrid modular
- Number of wired zones on the board 5/10 (doubling)
- Fire zone for connecting two-wire smoke detectors 1
- Number of integrated wireless zones 32
- Maximum number of zones in the system 32
- Number of PGM outputs on the board 3
- Maximum number of PGM outputs in the system 16
- Number of users + installer codes 31+1
- Attack code There is
- User and installer code recovery There is
- Key/push-button switch zone (key-switch) There is
- Areas 4
- Common corridor area There is
- Number of timers in the system 16
- Maximum number of control panels/modules in the system 5
- Compatibility with control panels All SECOLINK control panels
- Event log volume In the control panel - 256, in the set with the control panel - 512
- Interface with transmitters and communicators from other manufacturers None
- Data bus protocol CRBUS
- Roller blinds lifting sensor zone There is
- Vibration detection sensor area There is
- Vibration detection zone sensitivity (speed) 0.01 - 0.25 sec.
- Sensor zone sensitivity (speed) 0.1 - 2.5 seconds
- Sensor connection loop types NC, NO, NC/EOL, NO/EOL, NC/DEOL, NO/DEOL, Roller, Vibration, Wireless
- Security modes Gone, gone for a long time, night, at home.
- Modem versions The modem is designed for the 2G network and the Cat-M1 subnet of the LTE network.
- Has an integrated SIM card (hereinafter referred to as eSIM) Yes
- Has a slot to insert a separate user SIM card Yes (size: micro SIM)
- Nominal power supply voltage of the control panel (AC) ~20V
- Minimum control panel power supply voltage (AC) (note: at a voltage of ~16 V, the maximum direct current generated by the control panel power supply is 0.5 A) ~16V
- Maximum control panel supply voltage (AC) (note: voltage higher than ~22 V may damage the control panel) ~22
- Requirements for power transformer ≥30 VA Attention: S32 series control panels are designed to be installed in a CAS6 plastic box. These control panels cannot be installed in a CAS4 plastic box due to the low-power transformer used in it.
- Maximum continuous control panel output current (I+AUX + I+BELL + IBATTERY CHARGING) ≤1A
- Maximum current of the AC primary circuit slow-blow fuse 250 mA
- Maximum current consumed from the AC mains 150mA
- Minimum voltage of +AUX, +BELL outputs 12V
- Maximum +AUX, +BELL output voltage 13.9V
- Maximum +AUX drain current +0.8A
- Maximum short-term leakage current +BELL (with battery) +2 A
- Maximum inflowing current -PGM1 -0.15A
- Maximum inflowing current -PGM2 -0.15A
- +BELL, +AUX short circuit, overload protection Electronic
- Battery charging, +BELL, +AUX current measurement There is
- Disconnecting a faulty battery There is
- Maximum battery charging current +0.2A
- Maximum current of the battery circuit fast-acting fuse 3.15A
- The control panel disconnects the battery when the battery voltage is lower than 9.5V
- Product compliance with standards EN50131, Grade2
- Backup power supply recommended 12 V, 2.2 - 7Ah
- Overall dimensions W x H mm 145 x 77
- Product compliance with environmental standards ROHS
- Operating temperature From -10oC to +50oC
- Remote programming of control panel settings There is
- Product status Produced
- Interface with a computer (programming, firmware update) USB micro-B
| Manufacturer | Secolink |
| Manufacturer code | CASS32ET |
| Weight | 0 kg |
