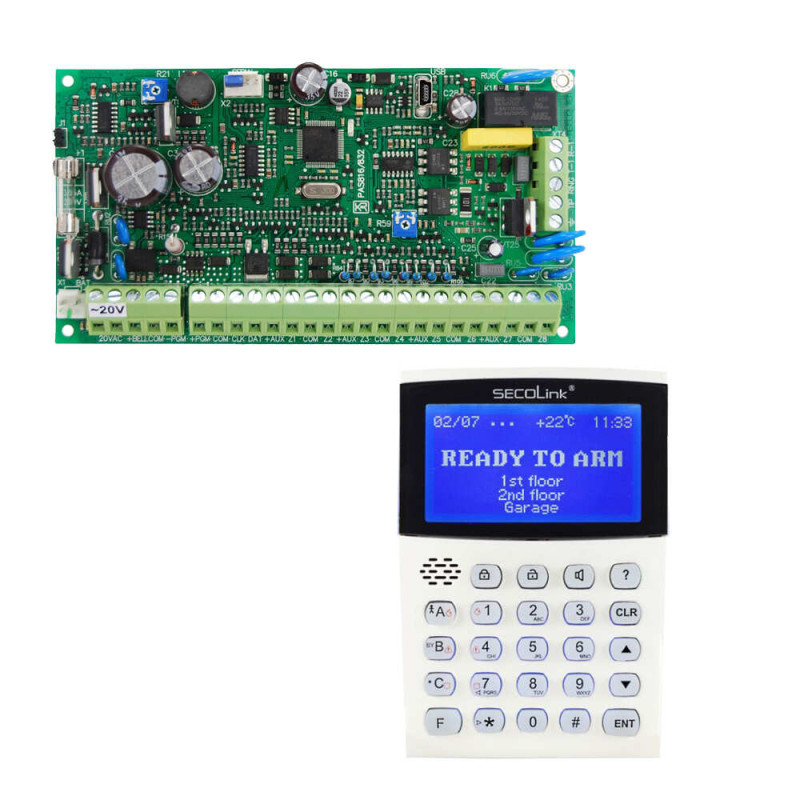

Control panel and keypad set SECOLINK PAS832+KM24A
Product reference: 26-CASPAS832KM24ALT
  • 32 wired zones on the board
  • 16 PGM outputs
  • 4 areas
  • 31 users
  • Up to 15 keyboards
  • PSTN communicator
Control panel and keypad set SECOLINK PAS832+KM24A

Control panel and keypad set SECOLINK PAS832+KM24A

Product reference: 26-CASPAS832KM24ALT
  • 32 wired zones on the board
  • 16 PGM outputs
  • 4 areas
  • 31 users
  • Up to 15 keyboards
  • PSTN communicator
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
97,72 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
Central office
Number of wired zones on the board8/16 (doubling)
Two-wire smoke detector terminal-
Number of integrated wireless zones-
Maximum number of zones in the system32
Number of PGM outputs on the board3
Maximum number of PGM outputs in the system16
Number of users + installer codes31+1
Attack code
Restoring service and user codesThere is
Key/push-button switch zone (key-switch)There is
Areas4
Common corridor areaThere is
Number of timers in the system16
Maximum number of control panels/modules in the system15
Event log volume (displayed on the control panel)512
PSTN communicatorIntegrated
Interface with transmitters, communicatorsTTL Serial
Data bus protocolCRBUS
Total, maximum number of reporting phone numbers4
Number of telephone numbers for reporting to the security serviceUp to 4
Number of phone numbers for calling the user's phoneUp to 4
Reporting format to the security serviceContact ID, 4x2
Voice guide for remote control via PSTN lineOnly PAS832 V3
Voice guide for remote system programming via PSTN lineOnly PAS832 V3
Roller blinds lifting sensor zoneThere is
Vibration detection sensor areaThere is
Vibration detection zone sensitivity (speed)0.01 - 0.25 sec.
Area sensitivity (speed) of conventional sensors0.1 - 2.5 sec.
Sensor connection loop typesNC, NO, NC/EOL, NO/EOL, NC/DEOL, NO/DEOL, vibration, blinds
Security modesGone, gone for a long time, night, at home.
Zone functionsEnter/exit, forced entry/exit, internal, internal protected in "night" mode, passage zone, passage zone protected in "night" mode, perimeter, without delay, control;
24h: burglary, silent panic, loud panic, sabotage - tamper, fire, smoke, fire button, medical button, fire technical control, low water level, radio frequency (RF) interference, gas detected, water leak, high temperature, low temperature.
Zone attributesZone bypass permission, no alarm, arming when closed, exit route, entry route, fire confirmation, limit number of alarms, limit number of reports, warning, night guard.
PGM output functionsFire alarm, fire/burglary alarm, burglary alarm, trig alarm, technical alarm, optional alarms, chime, zone activation, zone bypass status, system trouble, exit/entry delay warning, exit delay/arm status, all protected, confirmations, power supply, regenerative power supply, fire detector power supply, timer, Mono/Bi Switch.
PGM attributesOpposite, pulsed, with fixation, warning, failed security arming message, security arming confirmation, security disarming confirmation.
Nominal power supply voltage of the control panel (AC)~20V
Minimum control panel power supply voltage (AC)
(note: at a voltage of ~16 V, the maximum direct current generated by the control panel power supply is 0.7 A)		~16V
Maximum control panel supply voltage (AC)
(note: voltage higher than ~22 V may damage the control panel)		~22V
Maximum continuous output current of the control panel (I +AUX + I +BELL + I +PGM + battery charging)≤1.5A
Maximum current of the AC primary circuit slow-blow fuse250 mA
Maximum current consumed from the AC mains150mA
Minimum voltage of +AUX, +BELL, +PGM outputs12V
Maximum voltage of +AUX, +BELL, +PGM outputs13.9V
Maximum +AUX drain current+1 A
Maximum +BELL leakage current+2.0A
Maximum incoming -PGM current-0.05A
Maximum +PGM leakage current+0.9A
+BELL, +PGM, +AUX short circuit, overload protectionElectronic
Battery charging, +BELL, +AUX current measurementThere is
Disconnecting a faulty batteryThere is
Maximum battery charging current+0.4A
Maximum current of the battery circuit fast-acting fuse3.15A
The control panel disconnects the battery when the battery voltage is lower than9.5V
Backup battery recommended12V, 7Ah / 20Hr
Product compliance with standardsEN50131, Grade2
Overall dimensions W x H mm145 x 77
Product compliance with environmental standardsROHS
Operating temperatureFrom -10 oh C to +50 oh C
Product statusV2 is no longer produced, V3 is produced
Latest firmware version V2: firmw_832_v2.03b
V3: firmw_832_v3.02
Firmware update via USBOnly PAS832 V3
Keyboard
Number of wired zones on the board2
Number of PGM outputs on the board1 (open collector up to 15 mA)
Ambient temperature measurementThere is
LCD typeGraphic: 128 x 64 pixels
Number of keys on the keyboard24
Number of fast function keys (F-Keys)32
Data bus protocolCRBUS
Sensor connection loop typesNC, NO, NC/EOL, NO/EOL, NC/DEOL, NO/DEOL
Maximum distance of the communication cable between the control panel and the control panel300 m
Supply voltage (DC)9 - 14V
Measuring voltage on the keyboardThere is
Current consumptionWith lighting 80 mA, without lighting lt;68 mA.
Speaker typeMicro speaker
Lighting colorScreen = blue, keyboard = blue
Character setThe main sets of world symbols.
User interface typeNavigation menu with a short explanation system.
Overall dimensions W x H mm92 x 133
Product compliance with environmental standardsROHS
Operating temperatureFrom 0 oh C to +50 oh C
Control panel settings programming interfaceUSB
Control panel firmware update interfaceUSB

ManufacturerSecolink
Manufacturer codeCASPAS832KM24ALT
Weight0.33 kg
