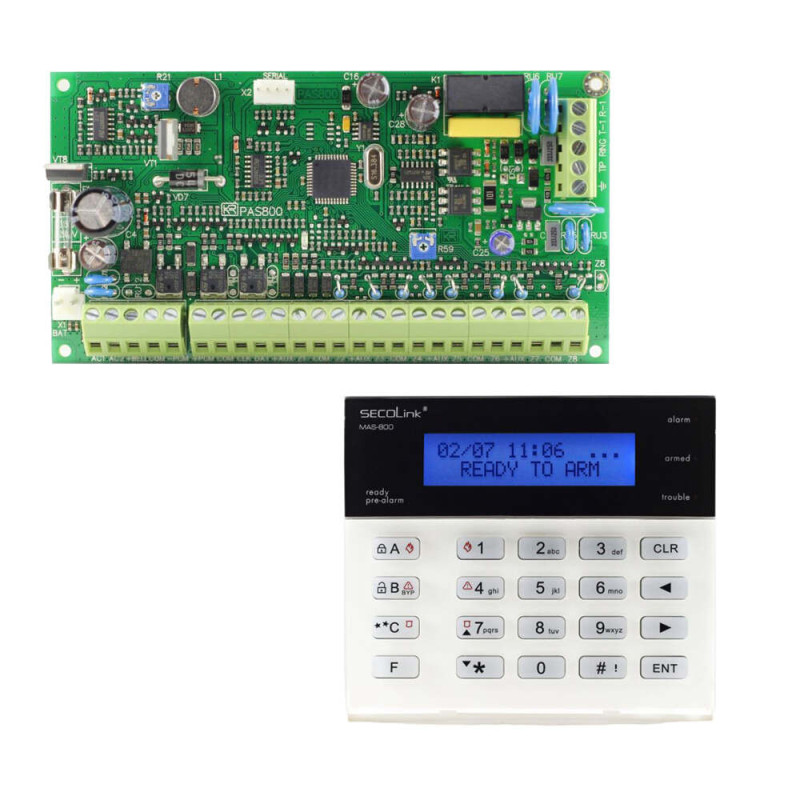

Control panel and keypad set SECOLINK PAS808+KM20B
Product reference: 26-CASPAS808KM20B
  • 8 wired zones on the board
  • 3 PGM outputs
  • 4 areas
  • 5 users
  • Up to 7 keyboards
  • PSTN communicator
Control panel and keypad set SECOLINK PAS808+KM20B

Control panel and keypad set SECOLINK PAS808+KM20B

Product reference: 26-CASPAS808KM20B
  • 8 wired zones on the board
  • 3 PGM outputs
  • 4 areas
  • 5 users
  • Up to 7 keyboards
  • PSTN communicator
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
75,26 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
Central office
Number of wired zones on the board8
Two-wire smoke detector terminal-
Number of integrated wireless zones-
Maximum number of zones in the system8
Number of PGM outputs on the board3
Maximum number of PGM outputs in the system8
Number of users + installer codes5+1
Attack codeX1, X2, X3, X4 (when X4 = X4 + 1)
Restoring service and user codesThere is
Key/push-button switch zone (key-switch)-
Areas4
Common corridor area-
Number of timers in the system-
Maximum number of control panels/modules in the system7
Event log volume (displayed on the control panel)512
PSTN communicatorIntegrated
Interface with transmitters, communicatorsTTL Serial
Data bus protocolCRBUS
Total, maximum number of reporting phone numbers4
Number of telephone numbers for reporting to the security serviceUp to 4
Number of phone numbers for calling the user's phoneUp to 4
Reporting format to the security serviceContact ID
Voice guide for remote control via PSTN line-
Voice guide for remote system programming via PSTN line-
Roller blinds lifting sensor zone-
Vibration detection sensor areaThere is
Vibration detection zone sensitivity (speed)0.01 - 0.25 sec.
Area sensitivity (speed) of conventional sensors0.1 - 2.5 sec.
Sensor connection loop typesNC, NO, NC/EOL, NO/EOL, NC/DEOL, NO/DEOL, vibration
Security modesGone, gone for a long time, night, at home.
Zone functionsEnter/exit, forced entry/exit, internal, internal protected in "night" mode, passage zone, passage zone protected in "night" mode, perimeter, without delay, control;
24h: burglary, silent panic, loud panic, sabotage - tamper, fire, smoke, fire button, medical button, fire technical control, low water level, radio frequency (RF) interference, gas detected, water leak, high temperature, low temperature.
Zone attributesZone bypass permission, no alarm, arming when closed, exit route, entry route, fire confirmation, limit number of alarms, limit number of reports, warning.
PGM output functionsFire alarm, fire/burglary alarm, burglary alarm, trig alarm, technical alarm, optional alarms, chime, zone activation, zone bypass status, system trouble, exit/entry delay warning, exit delay/arm status, all protected, confirmations, power supply, regenerative power supply, fire detector power supply, timer, Mono/Bi Switch.
PGM attributesOpposite, pulsed, with fixation, warning, failed security arming message, security arming confirmation, security disarming confirmation.
Nominal power supply voltage of the control panel (AC)~20V
Minimum control panel power supply voltage (AC)
(note: at a voltage of ~16 V, the maximum direct current generated by the control panel power supply is 0.7 A)		~16V
Maximum control panel supply voltage (AC)
(note: voltage higher than ~22 V may damage the control panel)		~22V
Maximum continuous output current of the control panel (I +AUX + I +BELL + I +PGM + battery charging)≤1.2A
Maximum current of the AC primary circuit slow-blow fuse250 mA
Maximum current consumed from the AC mains150mA
Minimum voltage of +AUX, +BELL, +PGM outputs12V
Maximum voltage of +AUX, +BELL, +PGM outputs13.9V
Maximum +AUX drain current+0.8A
Maximum +BELL leakage current+0.8A
Maximum incoming -PGM current-0.05A
Maximum +PGM leakage current+0.8A
+BELL, +PGM, +AUX short circuit, overload protectionElectronic
Battery charging, +BELL, +AUX current measurement-
Disconnecting a faulty battery-
Maximum battery charging current+0.4A
Maximum current of the battery circuit fast-acting fuse3.15A
The control panel disconnects the battery when the battery voltage is lower than9.5V
Backup battery recommended12V, 7Ah / 20Hr
Product compliance with standardsEN50131, Grade2
Overall dimensions W x H mm145 x 77
Product compliance with environmental standardsROHS
Operating temperatureFrom -10 oh C to +50 oh C
Product statusProduced
Latest firmware versionv0.03
Firmware update via USB-
Keyboard
Number of wired zones on the board2
Number of PGM outputs on the board-
Ambient temperature measurement-
LCD type2 lines of 16 characters each
Number of keys on the keyboard20
Number of fast function keys (F-Keys)32
Data bus protocolCRBUS
Sensor connection loop typesNC, NO, NC/EOL, NO/EOL, NC/DEOL, NO/DEOL
Maximum distance of the communication cable between the control panel and the control panel300 m
Supply voltage (DC)9 - 14V
Measuring voltage on the keyboardThere is
Current consumptionWith lighting 100 mA, without lighting lt;50 mA.
Speaker typeBuzzer
Lighting colorScreen = blue, keyboard = yellow
Character setLatin, Russian, Greek, Eastern European, Western European, Azerbaijani, Turkish, Scandinavian.
User interface typeAdvanced, simplified, Baltic, Asian.
Overall dimensions W x H mm115 x 95
Product compliance with environmental standardsROHS
Operating temperatureFrom 0 oh C to +50 oh C
Control panel settings programming interfaceUSB
Control panel firmware update interfaceUSB

ManufacturerSecolink
Manufacturer codeCASPAS808KM20B
Weight0.297 kg
