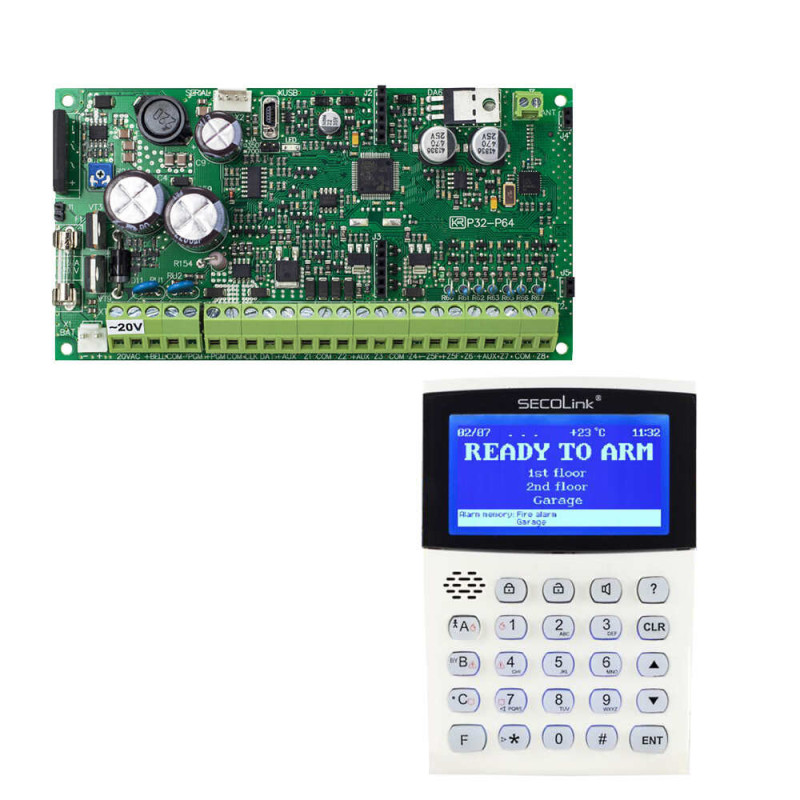

Control panel and keypad set SECOLINK P64+KM24G
Product reference: 26-CASP64KM24G
  • 7/14 wired zones
  • Connecting two-wire smoke detectors
  • 64 wireless zones
  • 3 PGM outputs
  • 63 users
  • 4 areas
  • Up to 15 keyboards
  • 512 event memory
  • Contact ID
  • EN50131, Grade2
Control panel and keypad set SECOLINK P64+KM24G

Control panel and keypad set SECOLINK P64+KM24G

Product reference: 26-CASP64KM24G
  • 7/14 wired zones
  • Connecting two-wire smoke detectors
  • 64 wireless zones
  • 3 PGM outputs
  • 63 users
  • 4 areas
  • Up to 15 keyboards
  • 512 event memory
  • Contact ID
  • EN50131, Grade2
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
133,40 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • Home
  • Number of wired zones on the board 7/14 (doubling)
  • Two-wire smoke detector terminal 1
  • Number of integrated wireless zones 64
  • Maximum number of zones in the system 64
  • Number of PGM outputs on the board 3
  • Maximum number of PGM outputs in the system 16
  • Number of users + installer codes 63+1
  • Attack code X1, X2, X3, X4 (when X4 = X4 + 1)
  • Restoring service and user codes There is
  • Key/push-button switch zone (key-switch) There is
  • Areas 4
  • Common corridor area There is
  • Number of timers in the system 16
  • Maximum number of control panels/modules in the system 15
  • Keyboard compatibility Only KM24G
  • Event log volume (displayed on the control panel) 512
  • PSTN communicator Connectable
  • Interface with transmitters, communicators TTL Serial
  • Data bus protocol CRBUS
  • Total, maximum number of reporting phone numbers 9
  • Number of telephone numbers for reporting to the security service Up to 4
  • Number of phone numbers for calling the user's phone Up to 5
  • Reporting format to the security service Contact ID
  • Voice guide for remote control via PSTN line There is
  • Voice guide for remote system programming via PSTN line There is
  • Roller blinds lifting sensor zone There is
  • Vibration detection sensor area There is
  • Vibration detection zone sensitivity (speed) 0.01 - 0.25 sec.
  • Area sensitivity (speed) of conventional sensors 0.1 - 2.5 sec.
  • Sensor connection loop types NC, NO, NC/EOL, NO/EOL, NC/DEOL, NO/DEOL, vibration, blinds
  • Security modes Gone, gone for a long time, night, at home.
  • Zone functions Enter/exit, forced entry/exit, internal, internal protected in "night" mode, passage zone, passage zone protected in "night" mode, perimeter, without delay, control; 24h: burglary, silent panic, loud panic, sabotage - tamper, fire, smoke, fire button, medical button, fire technical control, low water level, radio frequency (RF) interference, gas detected, water leak, high temperature, low temperature.
  • Zone attributes Zone bypass permission, no alarm, arming when closed, exit route, entry route, fire confirmation, limit number of alarms, limit number of reports, warning, night guard.
  • PGM output functions Fire alarm, fire/burglary alarm, burglary alarm, trig alarm, technical alarm, optional alarms, chime, zone activation, zone bypass status, system trouble, exit/entry delay warning, exit delay/arm status, all protected, confirmations, power supply, regenerative power supply, fire detector power supply, timer, Mono/Bi Switch.
  • PGM attributes Opposite, pulsed, with fixation, warning, failed security arming message, security arming confirmation, security disarming confirmation.
  • Minimum voltage of +AUX, +BELL, +PGM outputs 12V
  • Maximum voltage of +AUX, +BELL, +PGM outputs 13.9V
  • Maximum +AUX drain current +1 A
  • Maximum +BELL leakage current +2.0A
  • Maximum incoming -PGM current -0.3A
  • Disconnecting a faulty battery There is
  • Maximum battery charging current 0.35A
  • Maximum current of the battery circuit fast-acting fuse 3.15A
  • Backup battery recommended 12V, 7Ah / 20Hr
  • Product compliance with standards EN50131, Grade2
  • Overall dimensions W x H mm 145 x 77
  • Product compliance with environmental standards ROHS
  • Operating temperature From -10oC to +50oC
  • Product status Produced
  • Latest firmware version v0.03
  • Firmware update via USB There is
  • Number of wired zones on the board 2
  • Number of PGM outputs on the board 1 (open collector up to 15 mA)
  • Ambient temperature measurement There is
  • LCD type Graphic: 240 x 120 pixels
  • Number of keys on the keyboard 24
  • Number of fast function keys (F-Keys) 32
  • Data bus protocol CRBUS
  • Sensor connection loop types NC, NO, NC/EOL, NO/EOL, NC/DEOL, NO/DEOL
  • Maximum distance of the communication cable between the control panel and the control panel 300 m
  • Supply voltage (DC) 9 - 14V
  • Measuring voltage on the keyboard There is
  • Current consumption With lighting 80 mA, without lighting lt;68 mA.
  • Speaker type Micro speaker
  • Lighting color Screen = blue, keyboard = blue
  • Character set The main sets of world symbols.
  • User interface type Navigation menu with a short explanation system.
  • Overall dimensions W x H mm 92 x 133
  • Product compliance with environmental standards ROHS
  • Operating temperature From 0oC to +50oC
  • Control panel settings programming interface USB
  • Control panel firmware update interface USB

ManufacturerSecolink
Manufacturer codeCASP64KM24G
Weight0.32 kg
