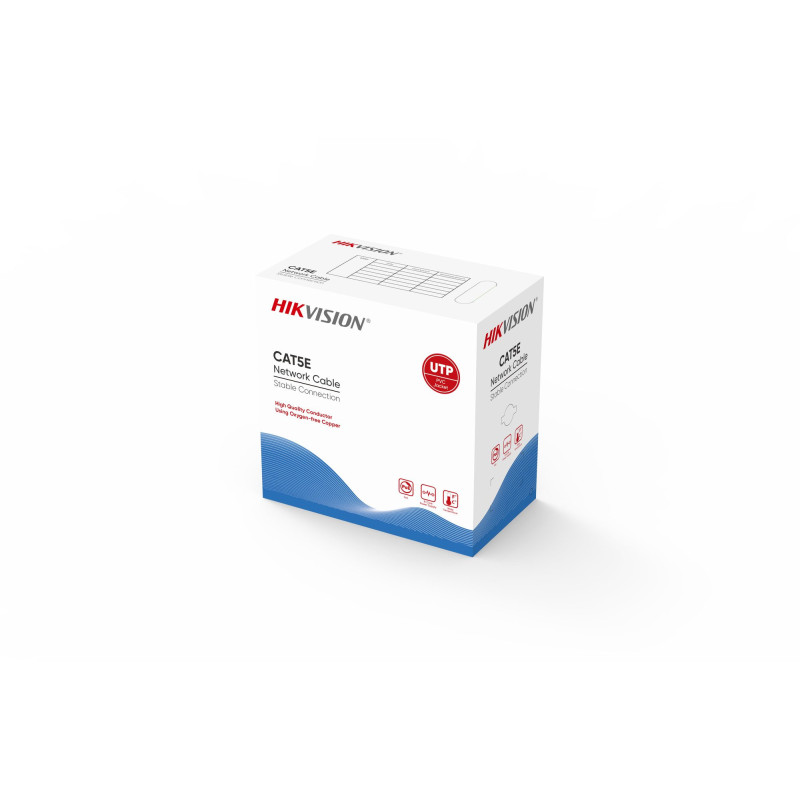

Cable for communication Hikvision UTP 5E Hikvision DS-1LN5E-E / E (305m.)
Product reference: 26-6954273666842
  • 305 m CAT5E network cable
  • Excellent transmission performance using oxygen-free copper
  • Quality confirmed by Fluke test
  • Guaranteed long PoE transmission distance
  • Excellent PVC fire resistance
Cable for communication Hikvision UTP 5E Hikvision DS-1LN5E-E / E (305m.)

Cable for communication Hikvision UTP 5E Hikvision DS-1LN5E-E / E (305m.)

Product reference: 26-6954273666842
  • 305 m CAT5E network cable
  • Excellent transmission performance using oxygen-free copper
  • Quality confirmed by Fluke test
  • Guaranteed long PoE transmission distance
  • Excellent PVC fire resistance
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
84,83 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • Conductor
  • Material Solid-Bare Copper, Content 99.95%,
  • Nominal outer diameter (mm) 0.450±0.005
  • General
  • Box dimensions By request
  • Core color 1 White- Blue /Blue 2 White-Orange /Orange,3 White- Green /Green 4 White- Brown /Brown,
  • Drainage cable No
  • Electrical characteristics (20 ) 1.0-100.0MHz Impedance(Ω) 100±15,1.0-100.0MHz Delay Shew (ns/100m) ≤45,DC Resistance Ω/100m) max 14.8,DC Conductor Resistance Unbalance(%) max 5.0,
  • Packaging Wooden Tray Carton
  • Package length 305±1.5m/80±0.5m
  • Copy cable Yes
  • Physical properties of the shell Before Aging Tensile Strength (Mpa) ≥13.5, Elongation(%) ≥150,Aging Period( ×hrs) 100 ×24h×7d,After Aging Tensile Strength(Mpa) ≥12.5, Elongation(%) ≥125,Cold bend(-20±2 ×4h) 8×Cable OD，No visible cracks,
  • Insulation
  • Diameter 0.82±0.04mm
  • Material HDPE
  • Shell
  • Color Grey ZLC1003
  • Outer diameter 4.7±0.4mm
  • Material PVC(RoHS compliant),CMX
  • Surface Clean, Frap, Satiety
  • Thickness 0.50±0.05mm
  • Surface
  • Color Black
  • Letter height 3.0±0.3mm
  • Printing error and gaps ≤±0.5%，1m

ManufacturerHikvision
Manufacturer codeKRUTP5HIK045
Weight7.99 kg
