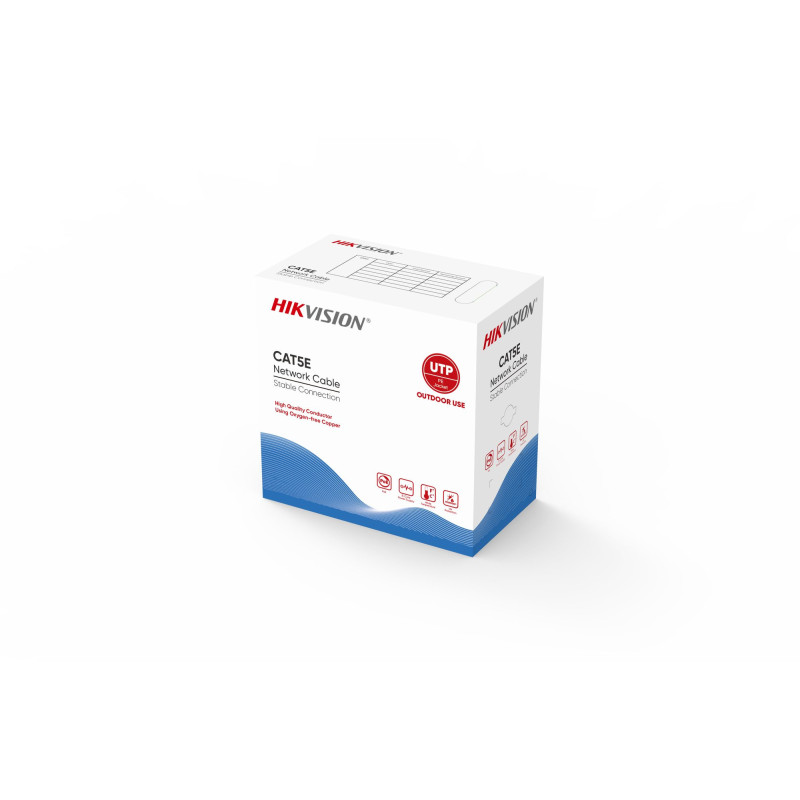

Cable for communication Hik-vision UTP 5E DS-1LN5EO-UU / E (Core-0.50mm, reel 305m, outdoor, black)
Product reference:
26-6941264021292
- Cable for communication Hik-vision UTP 5E (Gysla-0.50mm)
- Coil 305m
- Outdoor cable DS-1LN5EO-UU/E
- FCA class.
Cable for communication Hik-vision UTP 5E DS-1LN5EO-UU / E (Core-0.50mm, reel 305m, outdoor, black)
Product reference:
26-6941264021292
- Cable for communication Hik-vision UTP 5E (Gysla-0.50mm)
- Coil 305m
- Outdoor cable DS-1LN5EO-UU/E
- FCA class.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
- Home
- Core colors 1 White- Blue /Blue 2 White-Orange /Orange,3 White-Green /Green 4 White- Brown /Brown,
- Packaging Wooden Tray Carton
- Package size By request
- Package length 305±0.5m
- Copy cable Yes
- Discharge cable No
- Shell specification Before Aging Tensile Strength (Mpa) ≥10, Elongation(%) ≥300,Aging Period ( ×hrs) 100 ×24h×10d,After Aging Tensile Strength(Mpa) ≥12.5, Elongation(%) ≥125,Cold bend(-20±2 ×4h) 8×Cable OD，No visible cracks,
- Electrical characteristics (20 ) 1.0-100.0MHz Impedance ((Ω) 100±15,1.0-100.0MHz Delay Skew (ns/100m) ≤552,DC Resistance (Ω/100m) max 9.5,DC Conductor Resistance Unbalance (%) max 2.0,
- Conductor
- Material SOLID-Bare Copper, Content 99.99%,
- Nominal OD(mm) 0.500±0.001
- Insulation
- Material HDPE
- Diameter 0.88±0.03mm
- Shell
- Thickness 0.55±0.03mm
- Outer OD 5.0±0.3mm
- Surface Clean, Frap, Satiety
- Material PE
- Color Black
- Surface wrapping
- Letter height 2.8mm
- Color White
- typos spaces ≤±0.5%，1m
| Manufacturer | Hikvision |
| Manufacturer code | KRUTP5LHIK |
| Weight | 8.29 kg |
