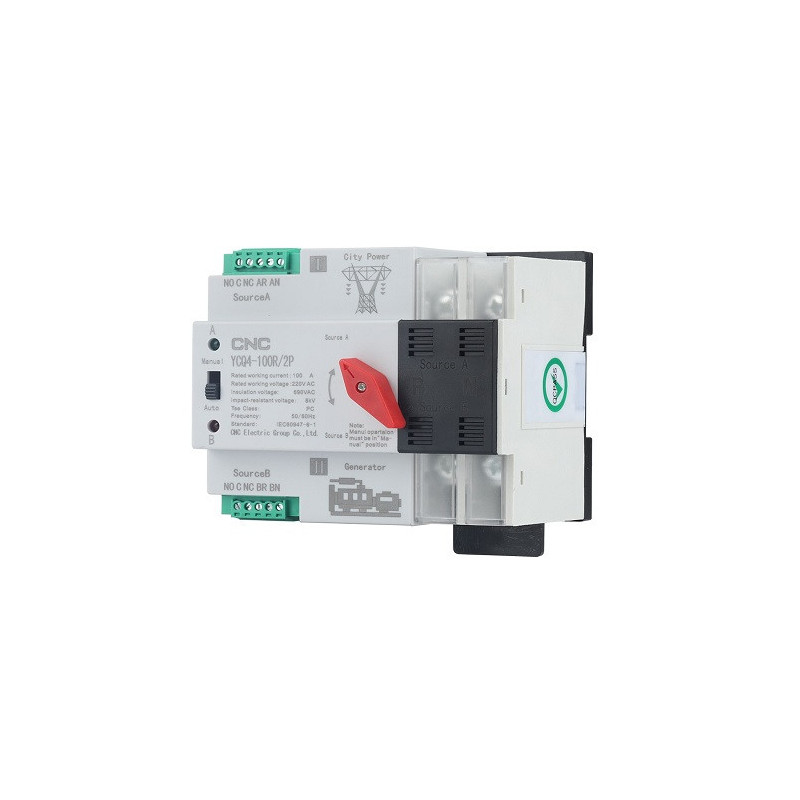

Automatic transfer switch CNC 2P 220V 100A

Automatic transfer switch YCQ4-100R/2P 220V 100A
Features:
Automatic transfer switch 220VAC, 100A for emergency power supply system 50/60Hz, switching time <50ms.
The switch can also be operated manually.
Complies with the requirements for low-voltage switchgear and controlgear according to IEC 60947-6-1.
Compact design, reliable switching, easy installation on DIN rail.
Applicable in various areas where power supply disruption is not possible.
Technical data:
Voltage: AC 220V.
Current: 100A.
Frequency: 50/60Hz.
Number of contacts: 2.
Insulation voltage (Ui): AC 690V.
Rated voltage (Ue): AC 400V.
Rated conditional short-circuit current: 50 kA.
SCPD (fuse): RT16-00-63A.
Nominal impulse withstand voltage: 8 kV.
Mains voltage: AC 220V.
Auxiliary circuit: AC 220V.
Contact transfer time: <50 ms.
Operation transfer time: <50 ms.
Return time: <50 ms.
Shutdown time: <50 ms.
Installation: on DIN rail.
Dimensions: 108x96x76 mm.
Mechanical life: 5000 times.
Electrical life: 2000 times.
Weight: 560g.
Warranty: 24 months
