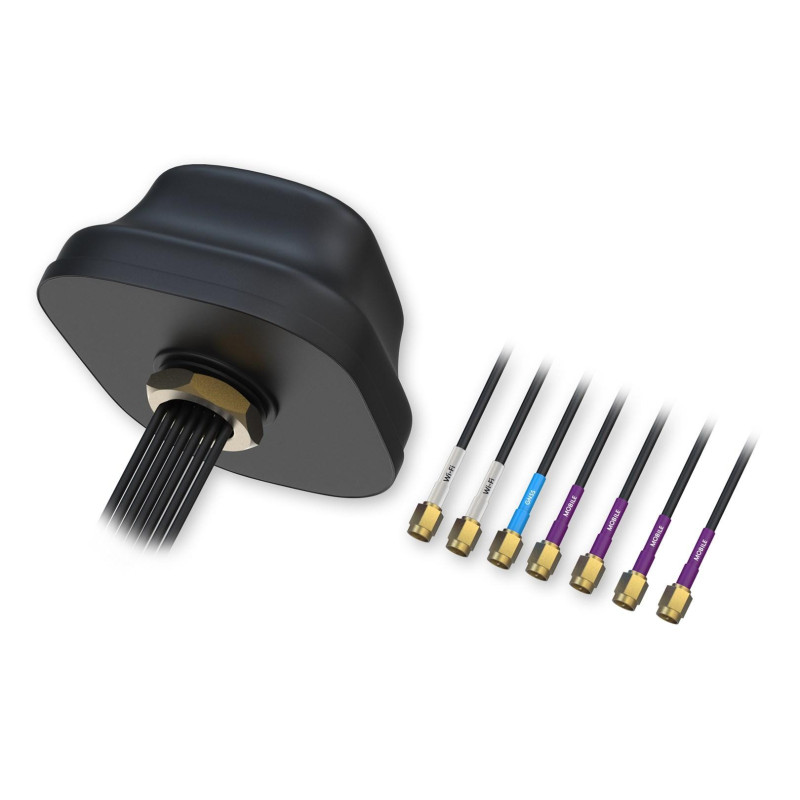

Antenna Teltonika PR1KC640 5G LTE (4xSMA, GNSS, Combo SISO, IP67)
Product reference: 26-LTEMIMOSMAPR1KC640
  • Type: 5G LTE antenna
  • Brand: Teltonika
  • Model: PR1KC640
  • Connectors: 4× SMA
  • GNSS support: Yes
  • Configuration: Combo SISO
  • Cable type: RG174
  • Cable length: 3 m
  • Gain: 3.5 dB (LTE), -2.5 dB (Wi-Fi)
  • Impedance: 50 Ω
  • Fastening: Screw (8 mm)
  • Frequency range: 617-960 / 1710-2690 / 2900-4200 MHz
  • Protection class: IP67
Antenna Teltonika PR1KC640 5G LTE (4xSMA, GNSS, Combo SISO, IP67)

Antenna Teltonika PR1KC640 5G LTE (4xSMA, GNSS, Combo SISO, IP67)

Product reference: 26-LTEMIMOSMAPR1KC640
  • Type: 5G LTE antenna
  • Brand: Teltonika
  • Model: PR1KC640
  • Connectors: 4× SMA
  • GNSS support: Yes
  • Configuration: Combo SISO
  • Cable type: RG174
  • Cable length: 3 m
  • Gain: 3.5 dB (LTE), -2.5 dB (Wi-Fi)
  • Impedance: 50 Ω
  • Fastening: Screw (8 mm)
  • Frequency range: 617-960 / 1710-2690 / 2900-4200 MHz
  • Protection class: IP67
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
117,17 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • General information
  • Product name 5G Mobile MIMO Antenna with GNSS WiFi
  • 5G frequency range 617 - 960 / 1710 - 2690 / 2900 - 4200 MHz
  • 5G polarization Linear
  • 5G reinforcement 4.0 dBi
  • 5G VSWR ≤3.0
  • 5G resistance 50 Ω
  • 5G connections 4x SMA Male
  • GNSS frequency range 1164 - 1300 / 1559 - 1610 MHz
  • GNSS polarization RHCP
  • GNSS power supply voltage 3 - 12 VDC
  • GNSS LNA amplification 40 ± 2 dB
  • GNSS VSWR ≤2.0
  • GNSS impedance 50 Ω
  • GNSS current consumption ≤60mA
  • GNSS connection 1x SMA Male
  • WiFi Frequency Range 2400 - 2483.5 / 4900 - 5925 MHz
  • WiFi Polarization Linear
  • WiFi Gain 4.0 dBi
  • WiFi VSWR ≤2.5
  • WiFi Impedance 50 Ω
  • WiFi Connectors 2x RP SMA Male
  • Mounting method Screw
  • Protection against dust and moisture IP67 (excluding cable outlet)
  • Material UV-Resistant ABS/PC
  • Weight 960 ± 30g
  • Housing dimensions 189 x 182 x 85 mm
  • Cable type 7 x LMR100
  • Cable length 3000mm
  • Mounting hole diameter ø28 mm (max panel thickness 8 mm)
  • Working temperature -40°C to +85°C
  • RoHS compliant ✓

ManufacturerTeltonika Networks
Manufacturer codeLTEMIMOSMAPR1KC640
Weight0.000000 kg
