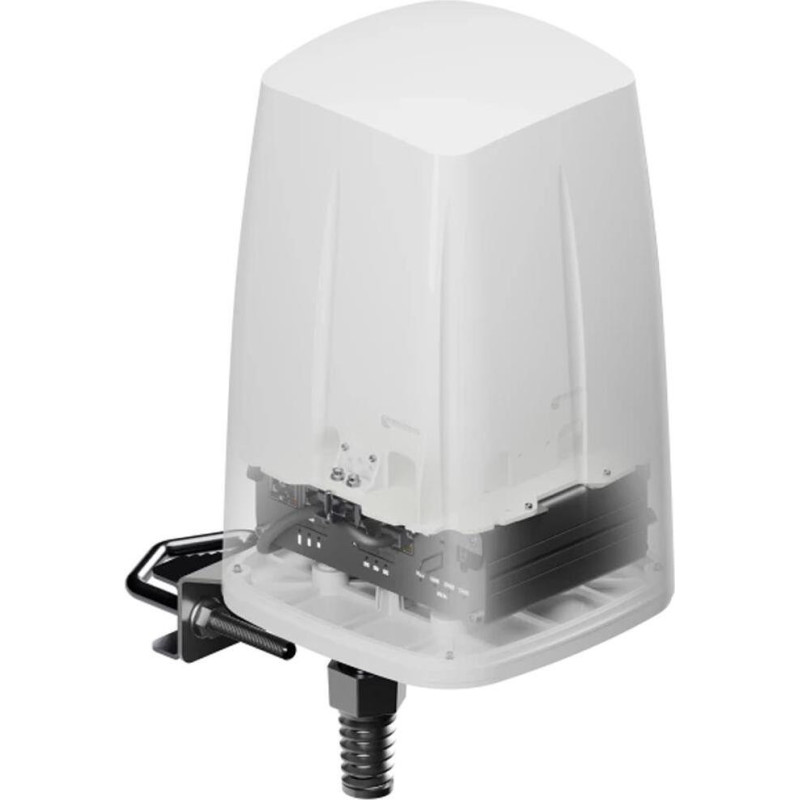

Antenna Teltonika PR1ICC60 for routers RUT9
Product reference: 26-TELTONPR1ICC60
  • Type: Antenna
  • Model: PR1ICC60
  • Compatible with: Teltonika RUT9 routers
  • Frequency range: 617~960, 1700~2700, 3300~4300 MHz
  • Gain: Max. 4.5 dBi
  • Connections: LTE 2xSMA, GNSS 1xSMA
  • Cables: 4xRG316, 1xRG174
  • Operating temperature: -40...5°C
Antenna Teltonika PR1ICC60 for routers RUT9

Antenna Teltonika PR1ICC60 for routers RUT9

Product reference: 26-TELTONPR1ICC60
  • Type: Antenna
  • Model: PR1ICC60
  • Compatible with: Teltonika RUT9 routers
  • Frequency range: 617~960, 1700~2700, 3300~4300 MHz
  • Gain: Max. 4.5 dBi
  • Connections: LTE 2xSMA, GNSS 1xSMA
  • Cables: 4xRG316, 1xRG174
  • Operating temperature: -40...5°C
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
128,46 €
Last product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • General data
  • Frequency range 617 ~ 960, 1700 ~ 2700, 3300 ~ 4300 MHz
  • Polarization Vertical
  • Radiation pattern type Omnidirectional
  • Strengthening Max 4.5 dBi
  • SVWR < 2.50
  • Resistance 50 Ω
  • Connector type and number 2x SMA male
  • GNSS ANTENNA Frequency Range 1560~1610MHz
  • GNSS ANTENNA Polarization RHCP
  • GNSS ANTENNA Gain 28 dBi
  • GNSS ANTENNA VSWR < 2.00
  • GNSS ANTENNA Impedance 50 Ω
  • GNSS ANTENNA Connector type and count 1x SMA male
  • GNSS ANTENNA Current consumption 2.5 - 6.5 mA
  • GNSS ANTENNA Supply voltage 2.5 - 6.5 VDC
  • WI-FI ANTENNA Frequency Range 2400~2500, 4700~6000MHz
  • WI-FI ANTENNA Polarization Vertical
  • WI-FI ANTENNA Radiation pattern type Omnidirectional
  • WI-FI ANTENNA Gain Max 7.5 dBi
  • WI-FI ANTENNA VSWR < 2.00
  • WI-FI ANTENNA Impedance 50 Ω
  • WI-FI ANTENNA Connector type and count 2x RP-SMA male
  • Cable 4x RG316, 1x RG174
  • Operating temperature -40°C to 75°C
  • Installation method Wall, ceiling, mast
  • IP class IP67
  • Weight 1500g
  • RoHS compliant Yes

ManufacturerTeltonika Networks
Manufacturer codeTELTONPR1ICC60
Weight0.000000 kg
