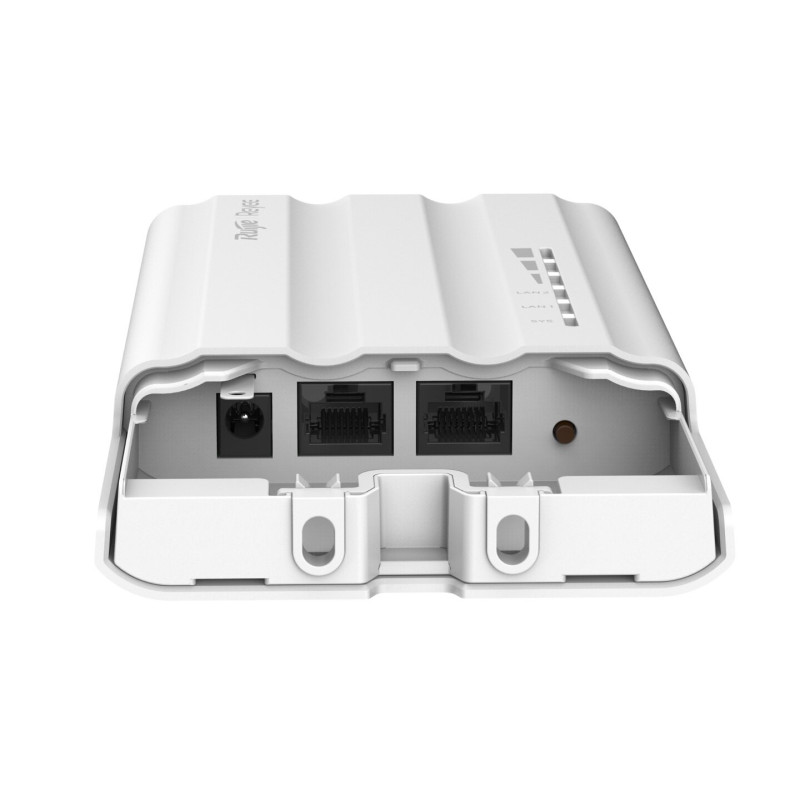

Antenna Ruijie RG-AirMetro 550G-B
Product reference: 26-RUIJIERGAIRMETRO550GB
  • Type: Wireless antenna
  • Model: Ruijie Reyee RG-AirMetro550G-B
  • Operating distance: 10 km
  • Frequency: 5GHz
  • Speed: 867 Mbps
  • Protection: IP55
  • Can be used with additional antennas
  • Connectors: 2x 10/100/1000M ports, 1x 12V DC port
  • Supports installation with antenna
  • Single station support: Up to 32 CPEs
Antenna Ruijie RG-AirMetro 550G-B

Antenna Ruijie RG-AirMetro 550G-B

Product reference: 26-RUIJIERGAIRMETRO550GB
  • Type: Wireless antenna
  • Model: Ruijie Reyee RG-AirMetro550G-B
  • Operating distance: 10 km
  • Frequency: 5GHz
  • Speed: 867 Mbps
  • Protection: IP55
  • Can be used with additional antennas
  • Connectors: 2x 10/100/1000M ports, 1x 12V DC port
  • Supports installation with antenna
  • Single station support: Up to 32 CPEs
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
111,21 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • Home
  • Radio design 5 GHz dual-stream, 2.4 GHz single-stream, 2.4 GHz Band Yes, 5 GHz Band Yes
  • Protocol and Standard 5 GHz: 802.11ac/n/a, 2.4 GHz: 802.11b/g/n, Wi-Fi 4/5/6/7: Wi-Fi 5
  • Spatial flows 5 GHz dual-stream, 2x2; 2.4 GHz single-stream
  • MIMO 2.4G Channel Width: Auto/20/40 MHz; 5G Channel Width: Auto/20/40/80 MHz
  • Receiver sensitivity 11a: -89 dBm (6 Mbps), -80 dBm (24 Mbps), -76 dBm (36 Mbps), -71 dBm (54 Mbps); 11n: -83 dBm@MCS0, -65 dBm@MCS7, -83 dBm@MCS8, -65 dBm@MCS15; 11ac: -86 dBm (MCS0), -63 dBm (MCS9)
  • Nominal Receive Sensitivity @20 MHz Channel: -91 dBm (MCS0) to -57 dBm (MCS9), @40 MHz Channel: -83 dBm (MCS0) to -57 dBm (MCS9), @80 MHz Channel: -76 dBm (MCS0) to -51 dBm (MCS9)
  • Power supply 24 V passive PoE/12 V DC
  • Local Power Supply Yes
  • PoE output No
  • Supported PoE standards No (Note: Passive PoE input)
  • Antenna shape N/A
  • Antenna type Built-in antenna (horizontal/vertical): 90°/7°, 120°/10°, 360°/7°
  • Hardware Button 1 x reset button
  • DC power connector size Inner Diameter: 2.10 ± 0.05 mm (0.08 ± 0.002 in.), Outer Diameter: 5.50 ± 0.05 mm (0.22 ± 0.002 in.), Depth: 9 mm (0.35 in.)
  • DC voltage/current 12 V/1 A
  • LED 1 x system LED, 2 x port LEDs, 3 x signal strength LEDs
  • Antenna amplification 2.4 GHz: 3 dBi, 5 GHz: No
  • Energy consumption ＜12W
  • IP class IP55
  • Color -
  • Working conditions (temperature) -30°C to +65°C (-22ºF to +149ºF); publicity materials state -40°C to +80°C (-40°F to +176°F)
  • Storage conditions temperature -40°C to +85°C (-22ºF to +185ºF)
  • Working conditions (humidity) 5% to 95% RH (non-condensing)
  • Storage conditions humidity 5% to 95% RH (non-condensing)
  • MTBF > 400,000 hours
  • Operating distance 15 km
  • Switching performance 200 Mbps/1 km (HT40), 180 Mbps/3 km (HT40), 100 Mbps/5 km (HT40) (Compared with competing products)
  • RSSI (dBm) -60/1 km, -68/3 km, -75/5 km (Compared with competing products; antenna gain 13 dBi or higher)
  • Throughput Camera Limits (3 MP) 35 Mbps/1 km, 30 Mbps/3 km, 16 Mbps/5 km
  • Throughput Camera Limits (4 to 5 MP) 20 Mbps/1 km, 16 Mbps/3 km, 10 Mbps/5 km
  • Throughput Camera Limits (6 to 7 MP) 15 Mbps/1 km, 12 Mbps/3 km, 6 Mbps/5 km
  • Throughput Camera Limits (7 to 8 MP) 10 Mbps/1 km, 8 Mbps/3 km, 5 Mbps/5 km
  • Control radio 2.412 GHz-2.472 GHz
  • Number of PtMP links 32
  • ESD protection Tolerance: ±24 kV Contact/Air
  • MCS modulation levels MCS0 (BPSK) to MCS9 (256QAM)
  • Wi-Fi protocols (2.4 GHz) Wi-Fi 4 (IEEE 802.11b/g/n)
  • Wi-Fi protocols (5 GHz) Wi-Fi 5 (IEEE 802.11ac)
  • Wireless data speed 867Mbps (5GHz)
  • Frequency bands 2.4 GHz: 802.11b/g/n: 2.4000 GHz to 2.483 GHz; 5 GHz: 802.11a/n/ac: 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz (Note: Country-specific restrictions apply)
  • Maximum transmission power 2.4 GHz: 20 dBm, 5 GHz: 26 dBm
  • Surge protection Common mode: ±6 kV, Differential mode: ±2 kV
  • Size (W x D x H) 200 mm x 98.5 mm x 29 mm (7.87 in. x 3.88 in. x 1.14 in.) (without bracket)
  • Weight 0.68 kg
  • Number of fixed LAN ports 2
  • Maximum LAN port speed 1000Mbps
  • 10/100/1000BASE-T number of ports 2
  • Reloading Yes
  • Status LED Yes
  • Certificates CE
  • Operating mode Base Station/CPE
  • Channel range 20MHz
  • TDMA Fixed Mode/Flexible Mode
  • WLAN security WPA2-PSK
  • Management SSID @Ruijie-bxxxx, SSID Hiding Yes, Spectrum Scan Yes, Antenna Alignment Yes, One-Touch Pairing Yes, WMM Yes, Storm Control Yes, VLAN Packet Transmit Yes, DHCP Server Yes, DHCP Client Yes
  • Network diagnostics Ping/TraceRoute/DNS
  • Time Date Yes
  • Software update Yes
  • Backup/Restore Yes
  • Cloud management Yes
  • Energy configuration Yes
  • Country/Region Code Yes
  • Remote restart Yes
  • SON Self-organizing Networking with Bridges
  • SNMP Yes
  • Link aggregation No
  • Throughput Camera Limits See reference performance recommendation table
  • Ping Yes
  • Traceroute Yes
  • Artificial Intelligence Heat Map Yes

ManufacturerRuijie Networks
Manufacturer codeRUIJIERGAIRMETRO550GB
Weight0.68 kg
