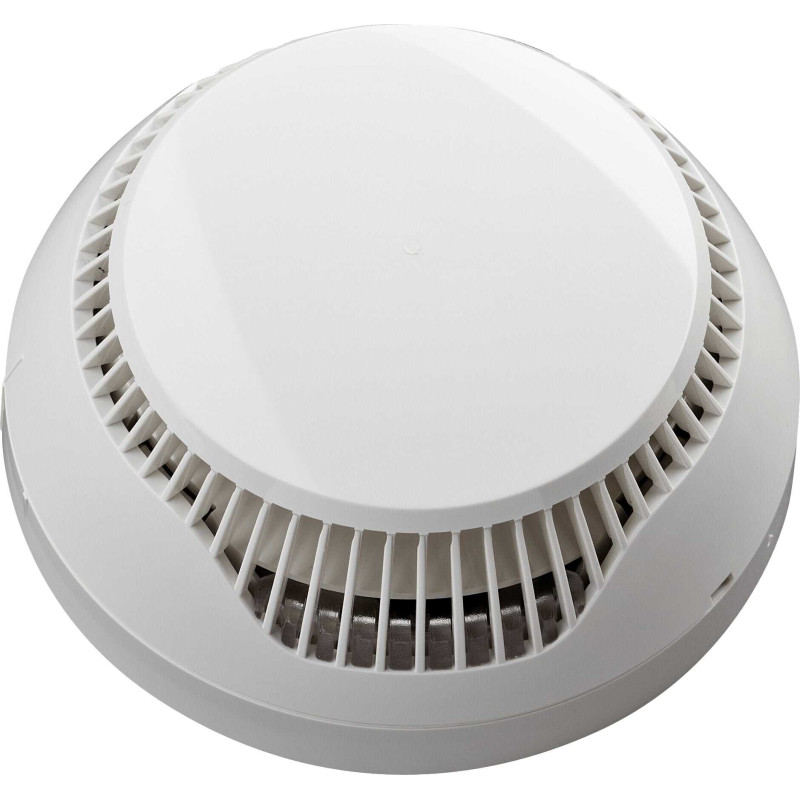

Addressable temperature sensor Teletek Sensor IRIS T110
Product reference:
26-IRISS130TEMP
- Can operate as a fixed temperature or ascent rate detector
- Class selected from the control panel - A1R, A2S, BS
- Low profile design
- LED indicator with 360° visibility
- EN54-5 certificate
- Version with built-in insulator - SensoIRIS T110 IS
Addressable temperature sensor Teletek Sensor IRIS T110
Product reference:
26-IRISS130TEMP
- Can operate as a fixed temperature or ascent rate detector
- Class selected from the control panel - A1R, A2S, BS
- Low profile design
- LED indicator with 360° visibility
- EN54-5 certificate
- Version with built-in insulator - SensoIRIS T110 IS
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
Not available
- Home
- Operating voltage range 15-32VDC (Nom. 27VDC)
- Electricity consumption, connection not working < 130μA@27VDC
- Electricity consumption, connection is working < 180μA@27VDC
- Electricity consumption during alarm 6.5mA
- Output in alarm state on terminal RI (terminals 4/1) 7.5 mA (max)/ 7.5V
- Wire gauge for terminals 0.4mm² - 2.0mm²
- Operating temperature -10°C to +65°C
- Protection IP30
- Weight (with base) ~110g
- Size (with base) 103x42mm
| Manufacturer | Teletek |
| Manufacturer code | IRISS130TEMP |
| Weight | 0.11 kg |
