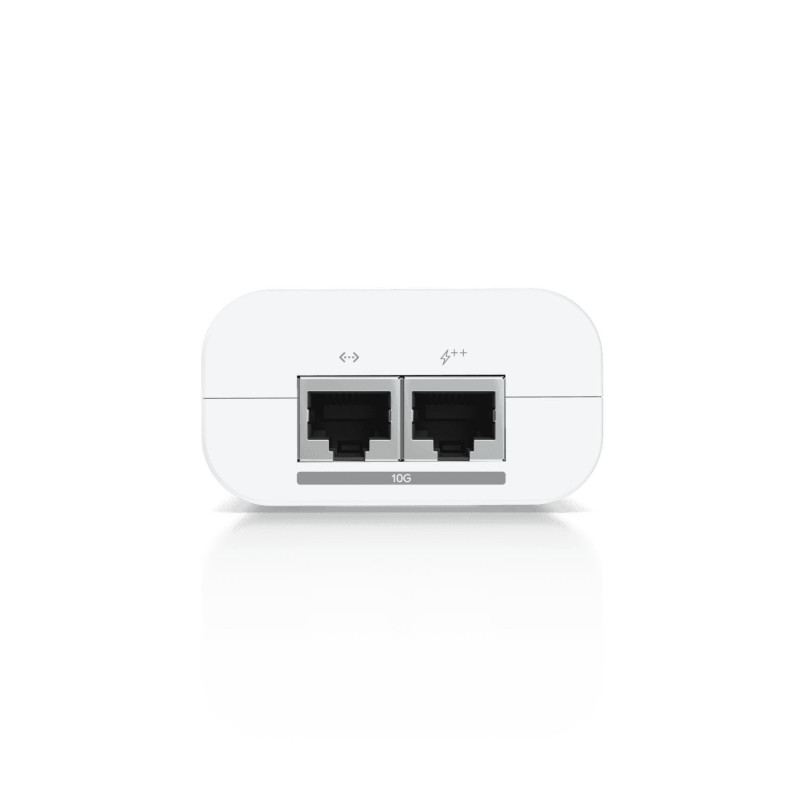

Adapter UBIQUITI UACC-PoE++-10G
Product reference: 26-810084699515
  • Type: Adapter
  • Model: UACC-PoE++-10G
  • Brand: UBIQUITI
  • Maximum power: Up to 60W PoE++
  • Output voltage: 54V DC, 1.12A
  • LAN speed: Up to 10GbE
  • Switching frequency: 65 kHz
  • Efficiency: > 88%
  • Operating temperature: 0...40°C
Adapter UBIQUITI UACC-PoE++-10G

Adapter UBIQUITI UACC-PoE++-10G

Product reference: 26-810084699515
  • Type: Adapter
  • Model: UACC-PoE++-10G
  • Brand: UBIQUITI
  • Maximum power: Up to 60W PoE++
  • Output voltage: 54V DC, 1.12A
  • LAN speed: Up to 10GbE
  • Switching frequency: 65 kHz
  • Efficiency: > 88%
  • Operating temperature: 0...40°C
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
47,38 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • Home
  • Size 106 x 63 x 34 mm (4.2 x 2.5 x 1.3")
  • Weight 210g (7.4oz)
  • Output voltage 54V DC @ 1.12A
  • LAN activity indicator No
  • Gigabit LAN port Yes, up to 10 GbE
  • Remote reset option No
  • Reset button No
  • Rated voltage 100—240V AC @ 50/60Hz
  • Input current strength 1.5A max.
  • Inrush current lt;150A peak @ 230V AC
  • Efficiency > 88%
  • Output ripple 1% max.
  • Switching frequency 65 kHz
  • Line adjustment ≤ 2%
  • Load regulation ≤ 5%
  • Feeding 2 couples No
  • Feeding 4 couples Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
  • Data input / PoE RJ45 shielded socket
  • Surge protection Difference and common mode
  • Pressure protection 11V date, 60V power
  • Maximum surge discharge 1500A (8/20 μs) power
  • Maximum impulse current 36A (10/1000 μs) date
  • Shunt capacitance lt;5 pF date
  • Response time lt;1 ns
  • Maximum PoE+ power per port according to PSE 60W
  • Operating ambient temperature 0 to 40°C (32 to 104°F)
  • Storage conditions temperature -30 to 70°C (-22 to 158° F)
  • Ambient humidity 10 to 95% non-condensing
  • Certificates CE, FCC, IC, UL, UKCA, KC, CCC, RoHS

ManufacturerUbiquiti
Manufacturer codeUBIQUACCPOE10G
Weight0.305 kg
