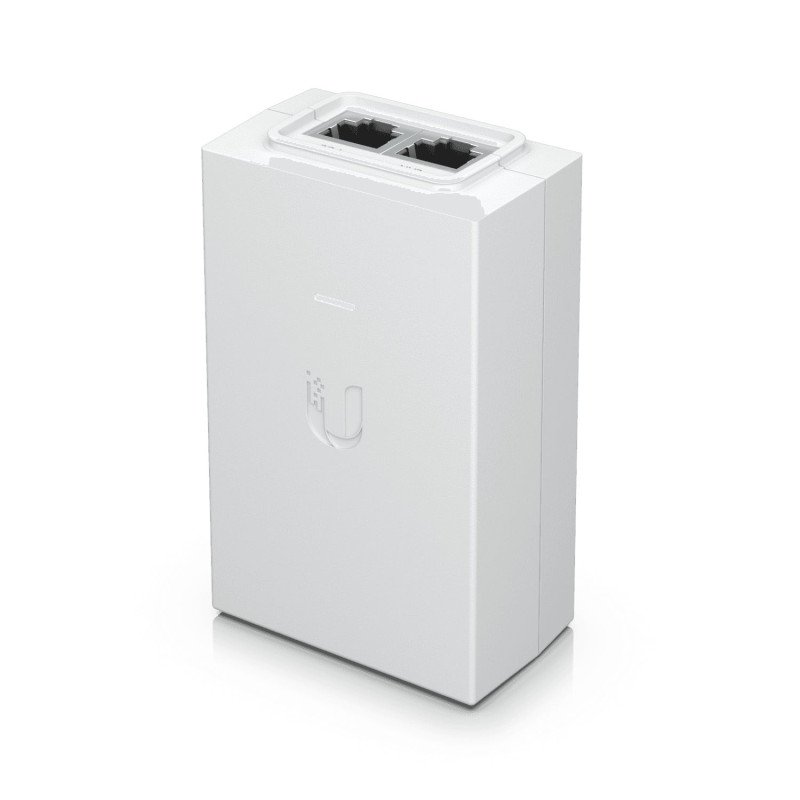

Adapter UBIQUITI POE-24-30W
Product reference: 26-810354023545
  • Type: Power adapter (injector)
  • Model: Ubiquiti POE-24-30W
  • Voltage: 24V DC
  • Current: 1.25A
  • Input: 240V AC, 50/60Hz
  • Frequency: 65 kHz
  • Surge protection
  • Operating temperature: 0...40°C
  • Connections: LAN
Adapter UBIQUITI POE-24-30W

Adapter UBIQUITI POE-24-30W

Product reference: 26-810354023545
  • Type: Power adapter (injector)
  • Model: Ubiquiti POE-24-30W
  • Voltage: 24V DC
  • Current: 1.25A
  • Input: 240V AC, 50/60Hz
  • Frequency: 65 kHz
  • Surge protection
  • Operating temperature: 0...40°C
  • Connections: LAN
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
19,05 €
Last product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
Not available
  • General information
  • Model POE-24-30W-G-WH
  • Dimensions 94 x 60 x 33 mm (3.70 x 2.36 x 1.30")
  • Weight 156g (5.5oz)
  • Output voltage 25VDC @ 1.25A
  • LAN Activity Indicator No
  • Gigabit LAN port Yes
  • Remote reset option No
  • Reset button No
  • Rated voltage 100-240VAC @ 50/60Hz
  • Input current 0.6A @ 120VAC, 0.4A @ 240VAC
  • Inrush current <60A Peak @ 120VAC, <120A Peak @ 230VAC
  • Efficiency 83+%
  • Output ripple 1% Max.
  • Switching frequency 65kHz
  • Linear regulation ≤ 3%
  • Load regulation ≤ 5%
  • Feeding two couples Pins 4, 5 (+) and Pins 7, 8 (-)
  • 4-Pair Powering -
  • Operating temperature 0 to 40°C (32 to 104°F)
  • Storage temperature -30 to 70° C (-22 to 158° F)
  • Operating humidity 35 to 95% Non-condensing
  • AC connector IEC-320 C6
  • Data IN / PoE RJ45 Shielded Socket
  • Surge protection Difference and Common Mode
  • Clamping Protection 11V Data, 60V Power
  • Maximum surge discharge 1500A (8/20 µs) Power
  • Maximum pulse current 36A (10/1000 µs) Date
  • Shunt Capacitance <5 pF date
  • Reaction time <1ns
  • Certificates CE, FCC, IC, UL
  • NDAA compliant Yes

Manufacturer codeUBIQUITIPOE2430W
ManufacturerUbiquiti
Weight0.288 kg
