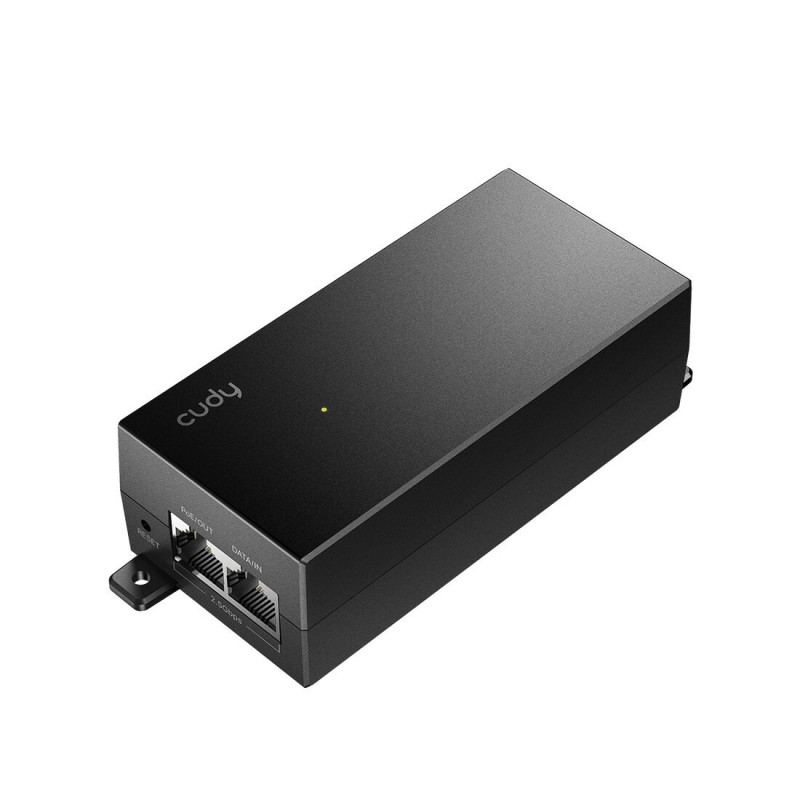

Adapter PoE Cudy POE200H (2.5GbE, 30W, 802.3at / af)
Product reference: 26-CUDYPOE200H
  • Type: PoE injector
  • Brand: CUDY
  • Model: POE200H
  • Network interface: 2 x 2.5 Gigabit Ethernet
  • PoE standard: IEEE 802.3af/at
  • PoE power: 30W
  • Data transmission up to 100 m
  • Power supply: AC
  • Operating temperature: -10 °C to +40 °C
Adapter PoE Cudy POE200H (2.5GbE, 30W, 802.3at / af)

Adapter PoE Cudy POE200H (2.5GbE, 30W, 802.3at / af)

Product reference: 26-CUDYPOE200H
  • Type: PoE injector
  • Brand: CUDY
  • Model: POE200H
  • Network interface: 2 x 2.5 Gigabit Ethernet
  • PoE standard: IEEE 802.3af/at
  • PoE power: 30W
  • Data transmission up to 100 m
  • Power supply: AC
  • Operating temperature: -10 °C to +40 °C
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
17,62 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
Not available
  • General information
  • Model version POE200H 1.0
  • 802.3 Protocols 802.3i 10 Mbps over Twisted Pair, 802.3u 100 Mbps over Twisted Pair, 802.3ab 1 Gbps over Twisted Pair, 802.3bz 2.5 Gbps over Twisted Pair, 802.3af PoE, 802.3at PoE
  • Uplink ports 1 × 2.5GbE
  • Downlink ports 1 × 2.5GbE, 802.3at/af PoE
  • Downlink Pin Assignment Mode A
  • Transmission distance Cat. 5e or higher cable: 100 m at Gigabit, Cat. 5e or higher cable: 100 m at 2.5 Gbps, total cable length from uplink switch through the PoE adapter to the downlink device is measured as one segment
  • Physical buttons Reset Button
  • LED Power
  • Power Interfaces AC Inlet
  • Feeding methods AC
  • Power input 100-240V AC, 50/60Hz, 0.8A
  • Maximum output power 30W, 54V DC, 0.56A
  • Power Protection Surge Protection, ESD Protection, Overvoltage Protection, Short-Circuit Protection
  • EMC IEC/EN 61000-4-2 Level 3 ESD: Contact 6 kV, Air 8 kV; IEC/EN 61000-4-5 Above Level 4 Surge: Power DM 4 kV, CM 4 kV, RJ45 CM 4 kV
  • Grounding Methods Three-Prong Plug
  • Ambient operating temperature −10 °C to 40 °C (14 °F to 104 °F)
  • Storage temperature −40 °C to 70 °C (−40 °F to 158 °F)
  • Working humidity 10% to 90% non-condensing
  • Storage humidity 10% to 95% non-condensing
  • Certificates FCC, CE
  • Installation Desktop, Wall-mount
  • Dimensions 123 × 51 × 35 mm (4.84 × 2.01 × 1.38 in)
  • Housing material Plastic
  • Product weight 150g (5.29oz)
  • Package contents POE200H, Power Cord, Mounting Kit, Installation Guide

ManufacturerCudy
Manufacturer codeCUDYPOE200H
Weight0.3 kg
