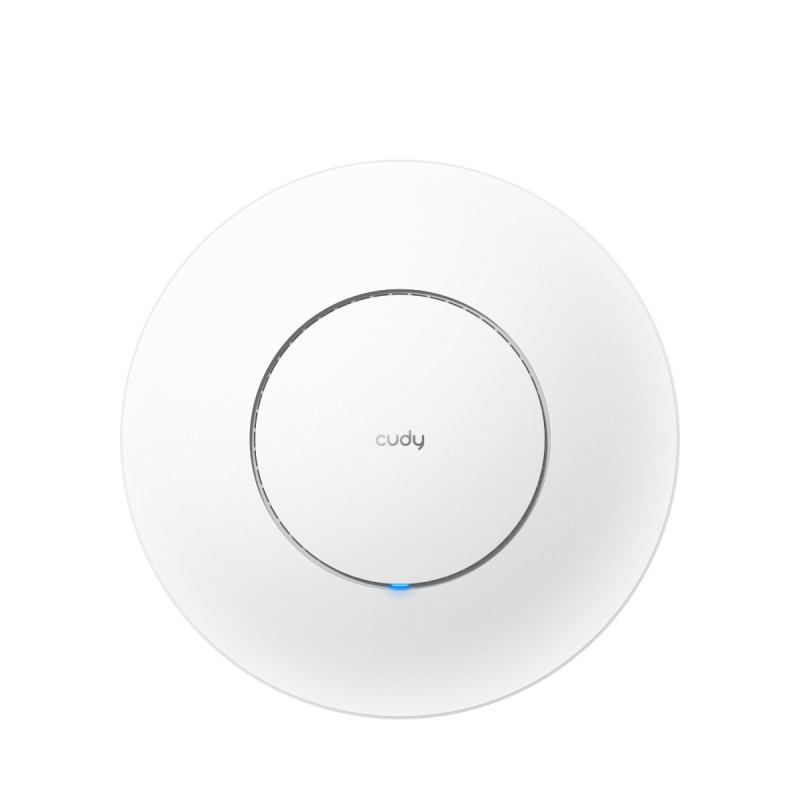

Access Point Cudy AP3600_P (Wi-Fi 7, 3570 Mbps, 2.5GbE PoE)
Product reference: 26-CUDYAP3600P
  • Type: Access Point
  • Brand: CUDY
  • Model: AP3600_P
  • Technology: Wi-Fi 7
  • Connection: 2.4GHz, 5GHz
  • Data transfer rate: up to 3570 Mbps (2882 + 688 Mbps)
  • Channel width: 160 MHz
  • Network interface: 2.5 Gigabit Ethernet
  • Power supply: PoE 48-57V
  • Memory: 512 MB RAM
  • Support: IPv4, IPv6
  • Operating temperature: 0 °C to +40 °C
Access Point Cudy AP3600_P (Wi-Fi 7, 3570 Mbps, 2.5GbE PoE)

Access Point Cudy AP3600_P (Wi-Fi 7, 3570 Mbps, 2.5GbE PoE)

Product reference: 26-CUDYAP3600P
  • Type: Access Point
  • Brand: CUDY
  • Model: AP3600_P
  • Technology: Wi-Fi 7
  • Connection: 2.4GHz, 5GHz
  • Data transfer rate: up to 3570 Mbps (2882 + 688 Mbps)
  • Channel width: 160 MHz
  • Network interface: 2.5 Gigabit Ethernet
  • Power supply: PoE 48-57V
  • Memory: 512 MB RAM
  • Support: IPv4, IPv6
  • Operating temperature: 0 °C to +40 °C
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
109,30 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • General information
  • Model version AP3600 1.0
  • CPU 2.0 GHz Quad-Core ARM Cortex-A7
  • Flash/ROM 128MB (1Gbit) NAND
  • DDR/RAM 512 MB (4 Gbit) DDR3L
  • 5GHz Wi-Fi speed 2882 Mbps
  • 2.4 GHz Wi-Fi speed 688 Mbps
  • 5 GHz Wi-Fi streams 2 Spatial Streams
  • 2.4 GHz Wi-Fi streams 2 Spatial Streams
  • Wi-Fi antennas 4 × Internal
  • Max. 5 GHz antenna gain 5.5 dBi
  • 2.4 GHz antenna gain (max.) 5.4 dBi
  • FEM or PA/LNA 5 GHz: 2 × Internal, 2.4 GHz: 2 × Internal
  • Beamforming Yes
  • Operating range Max. 220 m (722 ft), tested in open-space environments with minimal interference; actual range may vary depending on layout and wall materials
  • Wall permeability Two wooden walls with thickness < 10 cm (4 in), One concrete wall with thickness < 20 cm (7 in) or two concrete walls with thickness < 10 cm (4 in)
  • 2.5G RJ45 Ports 1
  • Gigabit RJ45 Ports 1
  • Ethernet notes Accepts PoE powering
  • LED System
  • Physical buttons Reset Button
  • Power Input Type DC Jack, PoE via Ethernet Port
  • Feeding methods DC, Passive PoE, 802.3at/af PoE
  • Power input DC: 12V DC 1A, Passive PoE: 48-57V DC, PoE: 802.3at/af
  • Power Adapter In The Box AP3600: No adapter included, AP3600_P: PoE adapter included (Input: 100-240V AC, 50/60Hz; Output: 48V Passive PoE)
  • Maximum power consumption 10W
  • Advanced Reliability Hardware Watchdog
  • EMC ESD Contact: 4 kV, Air: 8 kV
  • Operating temperature 0 °C to 40 °C (32 °F to 104 °F)
  • Storage temperature −40 °C to 70 °C (−40 °F to 158 °F)
  • Working humidity 10% to 90% non-condensing
  • Storage humidity 5% to 95% non-condensing
  • Certificates FCC, CE
  • Installation Wall-mount, Ceiling-mount
  • Dimensions 231.9 × 231.9 × 57.1 mm (9.13 × 9.13 × 2.25 in)
  • Product weight 435g (15.34oz)
  • Package contents AP3600, Mounting Kit, Installation Guide, PoE Adapter (_P model only), Ethernet Cable (_P model only)
  • Compatible Products C200P 1.0
  • Compatible accessories POE400H 1.0, POE200H 1.0, POE52-30W 1.0, POE48-18W 1.0
  • Note Choose compatible accessories carefully; some suggested models may not deliver the device's maximum supported speeds

ManufacturerCudy
Manufacturer codeCUDYAP3600P
Weight0.8 kg
