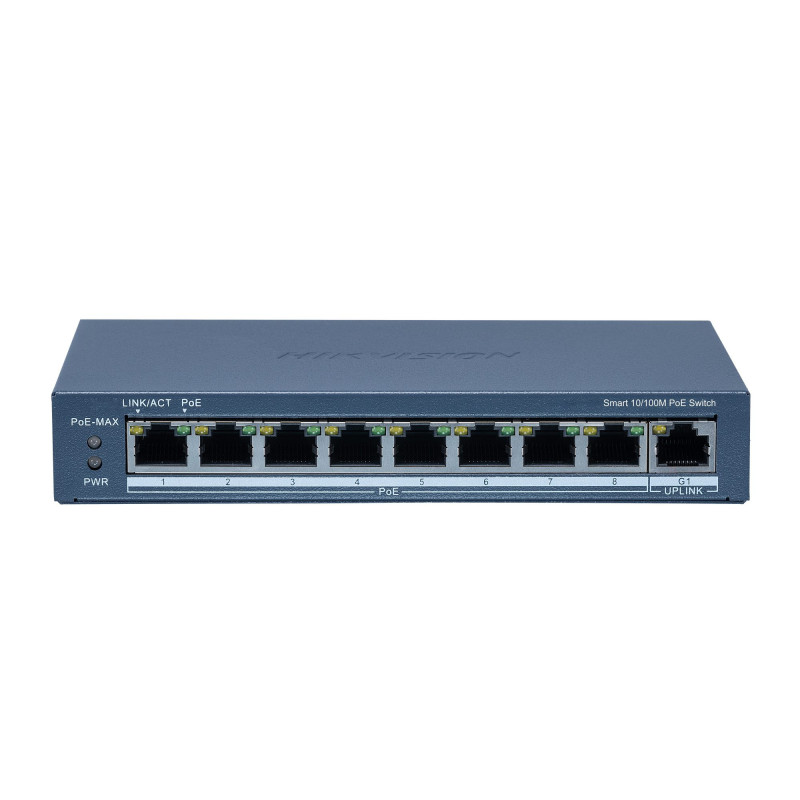

9-port, 8-PoE switch Hikvision DS-3E1309P-EI(B)
Product reference: 26-6942160495750
  • 8 × 10/100M PoE ports, 1 × Gigabit RJ45 port
  • Total PoE power output: 110 W
  • 802.1Q VLAN support
  • PoE watchdog function - detects and restarts unresponsive cameras
  • STP/RSTP cycle prevention support
  • Cable damage detection function
  • PoE transmission distance up to 300 m
  • 6 kV surge protection
9-port, 8-PoE switch Hikvision DS-3E1309P-EI(B)

9-port, 8-PoE switch Hikvision DS-3E1309P-EI(B)

Product reference: 26-6942160495750
  • 8 × 10/100M PoE ports, 1 × Gigabit RJ45 port
  • Total PoE power output: 110 W
  • 802.1Q VLAN support
  • PoE watchdog function - detects and restarts unresponsive cameras
  • STP/RSTP cycle prevention support
  • Cable damage detection function
  • PoE transmission distance up to 300 m
  • 6 kV surge protection
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
70,45 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • Approvals
  • Certification of chemical components CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
  • EMC CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
  • Security CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
  • General
  • Dimensions (W × H × D) 170.00 mm × 27.60 mm × 93.10 mm (6.69'' × 1.09'' × 3.67'')
  • Total weight 1.114 kg (2.45 lb)
  • Installation Mode Desk-Mounted,Wall-Mounted
  • Max. power consumption 120W
  • Net weight 0.35 kg (0.77 lb)
  • Working humidity 5% to 95% (no condensation)
  • Operating temperature 0 °C to 40 °C (32 °F to 104 °F)
  • Power consumption in sleep mode 10W
  • Power source 54VDC，2.22A
  • Relative humidity 5% to 95% (no condensation)
  • Frame Metal material, fan-free design
  • Storage temperature -40 °C to 85 °C (-40 °F to 185 °F)
  • Surge protection 6 kV
  • Network settings
  • Internal cache memory 4 Mbit
  • MAC address table 8 K
  • Packet transfer rate Whole-Device Performance: 4.17 MppsPort Performance: 2.68 Mpps
  • Ports 8 × 10/100 Mbps PoE port,1 × Gigabit RJ45 port
  • Switching performance Whole-Device Performance: 5.6 GbpsPort Performance: 3.6 Gbps
  • PoE
  • Max PoE port power 30W
  • PoE port PoE: Ports 1 to 8
  • PoE power budget 110W
  • PoE power connector 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
  • PoE standard IEEE 802.3af,IEEE 802.3at
  • Software features
  • ACL \
  • HPP Support one-click activation and remote management via Hik-Partner Pro. Functions supported:1. Display the port rate.2. Display the port bandwidth utilization rate.3. Display the PoE power usage.4. Display topology information.5. Display the alarm status.6. Restart ports and devices.7. Enable port long-rage mode.8. Remotely upgrade the device.
  • IPSG \
  • Long range mode Ports 1 to 8: up to 300 m. Long range performance may vary depending on camera model or cable condition.
  • Loop Prevention Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. Support 802.1w RSTP.
  • PoE Watchdog Ports 1 to 8: auto detect and restart the cameras that do not respond.
  • Port isolation Ports 1 to 8: port isolation mode to improve network security Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
  • Port speed limit \
  • Quality of Service (QoS) \
  • System Maintenance Support device management via web. Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. Support Super IP, which is a fixed IP address (10.180.190.200) for direct access. Support management via Hik-Central Pro. Support remote management via Hik-Partner Pro. Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. Supports 802.1ab LLDP for peer device discovery. Support port mirroring for fault locating.
  • VIP Port \
  • VLANs VLAN is used for network scale planning and network health improvement. Support 802.1Q.Configurable VLAN ID from 1-4094.Support Trunk, Access port mode. Support Max. 4094 VLANs.

ManufacturerHikvision
Manufacturer codeSWITCHDS3E1309PEIB
Weight0.28 kg
