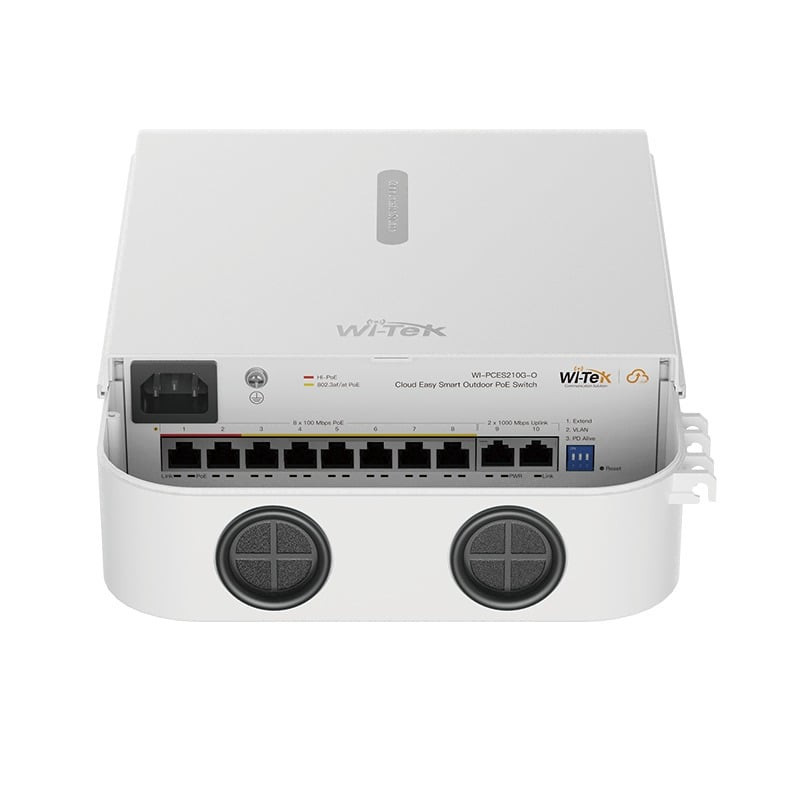

8-port switch Wi-Tek WI-PCES210G-O
Product reference: 26-SWITCHWIPCES210GOO
  • Type: Switch
  • Model: WI-PCES210G-O
  • Brand: Wi-Tek
  • Ports: 8 PoE (100 Mbps), 2 Uplink (1000 Mbps)
  • PoE power: 100W
  • Hi-PoE: 1-2 ports up to 45 W, 3-8 ports up to 30 W
  • Transfer rate: 5.6 Gbps
  • Packet throughput: 4.17 Mpps
  • MAC address capacity: 4K
  • Operating temperature: -30°C to +60°C
8-port switch Wi-Tek WI-PCES210G-O

8-port switch Wi-Tek WI-PCES210G-O

Product reference: 26-SWITCHWIPCES210GOO
  • Type: Switch
  • Model: WI-PCES210G-O
  • Brand: Wi-Tek
  • Ports: 8 PoE (100 Mbps), 2 Uplink (1000 Mbps)
  • PoE power: 100W
  • Hi-PoE: 1-2 ports up to 45 W, 3-8 ports up to 30 W
  • Transfer rate: 5.6 Gbps
  • Packet throughput: 4.17 Mpps
  • MAC address capacity: 4K
  • Operating temperature: -30°C to +60°C
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
73,24 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • General information
  • Model WI-PCES210G-O
  • Hardware version V1
  • PoE ports 8 x 10/100Mbps RJ45 PoE Ports (Ports 1-8)
  • PoE standard Port 1-2: Hi-PoE 45W, Port 3-8: 802.3af/at 30W
  • PoE pin assignment 1/2(+), 3/6(-)
  • Uplink ports 2 x 10/100/1000Mbps Ethernet Ports
  • PoE power budget 100W
  • Standards and protocols IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3ab (Gigabit Ethernet), IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
  • Forwarding mode Store and Forward
  • Switching capacity 5.6Gbps
  • Packet forwarding rate 4.17Mpps
  • MAC address table 4k
  • Packet buffer memory 4Mbit
  • Jumbo package 9216 Bytes
  • Input power 100~240V AC 50/60Hz
  • Energy consumption Idle: 2.4W, Full Load: 102.4W
  • LED indicators PWR(Green): On=Normal, Off=Power off/failure; PoE(Orange): On=Enabled, Off=Disabled; Link(Orange): On=Connected, Off=Disconnected, Blinking=Data Transmission
  • DIP switch 1. Extend (PoE up to 250m @10Mbps), 2. VLAN (PoE ports to Uplink only), 3. PD Alive (PoE watchdog for auto reboot)
  • Reset button Hold > 5 sec. to restore factory defaults
  • Number of fans Fanless
  • Dimensions 314 × 210 × 89mm
  • Package dimensions 405 × 253 × 97mm
  • Weight Net: 1.06kg, Package: 1.77kg
  • Installation Wall-mounted, Pole-mounted
  • Surge protection IEC 61000-4-5: Common mode 4kV, Differential mode 2kV
  • ESD protection IEC 61000-4-2: Contact discharge 6kV, Air discharge 8kV
  • Certification CE, FCC, RoHS, UKCA, RCM
  • Work environment -30 to 60 (-22 to 140); 10-90% RH non-condensing
  • Storage environment -40 to 70 (-40 to 158); 5-90% RH non-condensing
  • Software features Port Statistics, Cable Diagnostics, Port Mirroring, Port Isolation, Jumbo Frame, MAC Search/List, Port Reboot, Storm Control, Bandwidth Control, VLAN (1-4094), PD Alive, Extend PoE
  • Cloud computing management Wi-Tek Cloud APP management, Remote Access, Intelligent Network Monitoring, Automatic Device Discovery
  • Package contents Switch x1, Power Cord x1, Rubber Plug x2, Wall Hanging Sticker x1, Metal Tie x2, Quick Installation Guide x1, Optional: M36 Waterproof Gland x2

ManufacturerWi-Tek
Manufacturer codeSWITCHWIPCES210GOO
Weight1.32 kg
