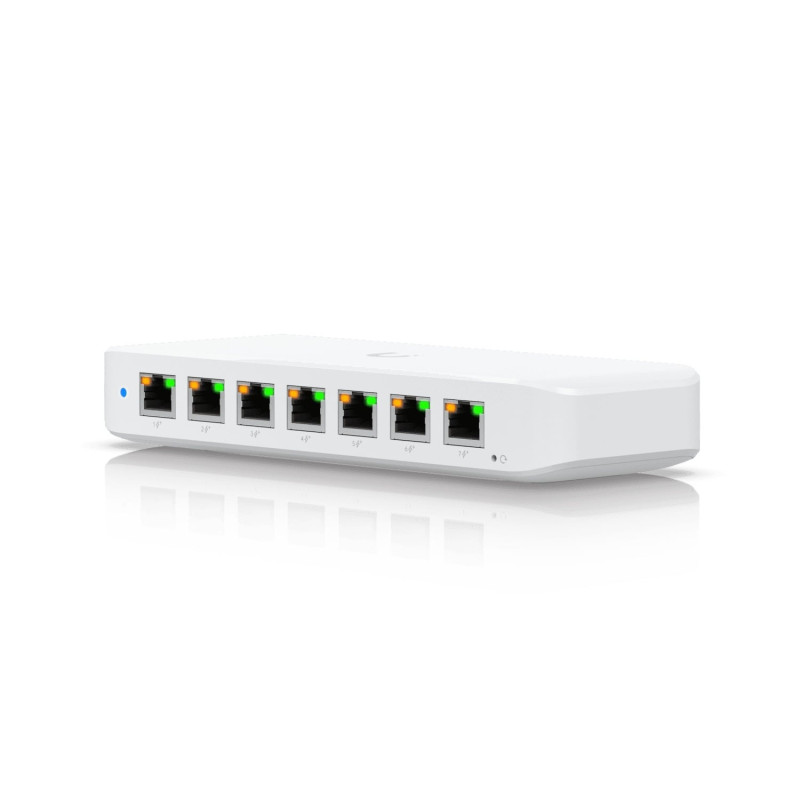

8-port switch Ubiquiti UniFi USW-Ultra
Product reference: 26-810084693698
  • Type: Switch
  • Model: Ubiquiti Unifi USW-Ultra
  • Number of ports: 8
  • PoE+ ports: 7
  • PoE++ ports: 1
  • Total bandwidth: 16 Gbps
  • Transmission rate: 8 Gbps
  • Switching rate: 12 Mpps
  • VLAN support: 256
  • MAC address table: 4000
  • Maximum PoE power: 30 W
  • Power supply: 50-57V DC / PoE
  • Operating temperature: -30...60°C
8-port switch Ubiquiti UniFi USW-Ultra

8-port switch Ubiquiti UniFi USW-Ultra

Product reference: 26-810084693698
  • Type: Switch
  • Model: Ubiquiti Unifi USW-Ultra
  • Number of ports: 8
  • PoE+ ports: 7
  • PoE++ ports: 1
  • Total bandwidth: 16 Gbps
  • Transmission rate: 8 Gbps
  • Switching rate: 12 Mpps
  • VLAN support: 256
  • MAC address table: 4000
  • Maximum PoE power: 30 W
  • Power supply: 50-57V DC / PoE
  • Operating temperature: -30...60°C
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
120,19 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • Home
  • Size 203 x 76 x 33 mm (8 x 3 x 1.3")
  • Port layout 1 GbE RJ45, 8 (7 PoE+; 1 PoE++ input)
  • Maximum PoE output Up to PoE+
  • Total PoE Availability PoE++ input: 42W, PoE+ input: 16W, 60W PoE adapter input: 42W, 60W AC adapter input: 52W, 210W AC adapter input: 202W
  • Form Factor Compact desktop, wall, magnetic
  • Switching capacity 16Gbps
  • Total non-blocking bandwidth 8 Gbps
  • Transmission frequency 12 Mpps
  • Supported VLANs 256
  • MAC address table size 4,000
  • Layer 2 Features STP RSTP, Egress Rate Limit, Flow Control, Storm Control, Multicast Broadcast Rate Limiting, Port Isolation, Port Mirroring, Jumbo Frames, Loop Protection
  • PoE ports PoE+: 7, PoE++: 1
  • Maximum PoE power per port according to PSE PoE+: 30W
  • Max. power consumption 9W (Excluding PoE Output) with PoE input, 8W (Excluding PoE Output) with adapter input, 210W (Including PoE Output) with 210W AC adapter input
  • Power method (1) AC/DC adapter (Excluded), (1) PoE++
  • Power input method DC Input, PoE
  • Supported voltage range 50—57V DC/PoE
  • Management Network
  • Heat dissipation (without PoE) 30,708 BTU/hr, 27,296 BTU/hr
  • Weight Device: 320 g (11.3 oz), Wall mount: 45 g (1.6 oz)
  • Housing material Polycarbonate
  • Ambient operating temperature PoE++ input: -30 to 60° C (-22 to 140° F), 60W AC adapter input: -20 to 45° C (-4 to 113° F), 210W AC adapter input: -20 to 60° C (-4 to 140° F)
  • Ambient operating humidity 10 to 90% non-condensing
  • Certificates CE, FCC, IC

ManufacturerUbiquiti
Manufacturer codeSWITCHUSWULTRA
Weight0.332 kg
