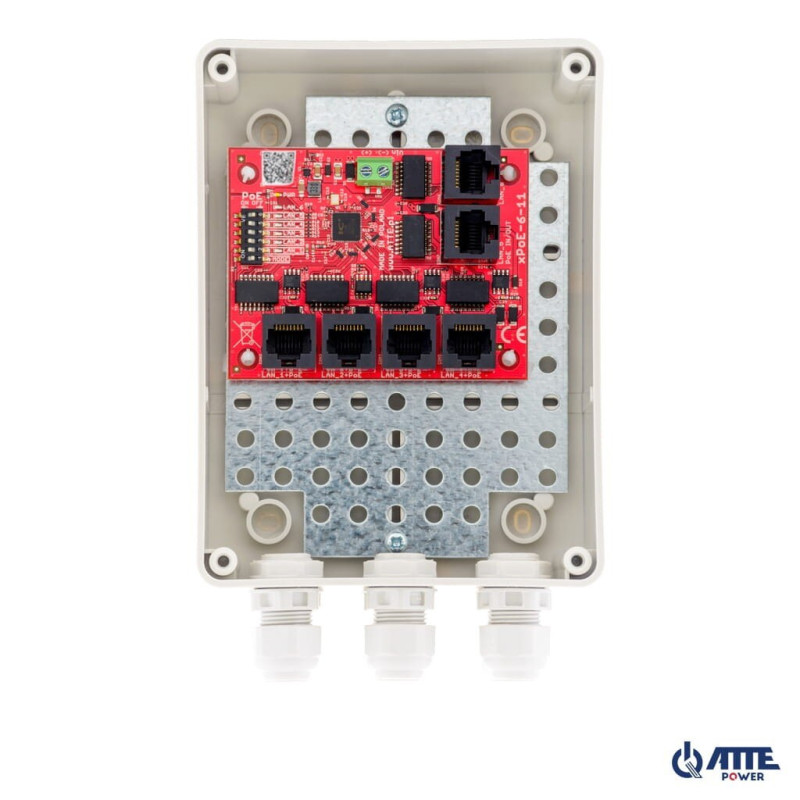

6-port switch ATTE XPOE-6-11-S2 (5x PoE, 100Mbps, IP56)
Product reference: 26-ATTEXPOE611S2
  • Type: Switch
  • Model: ATTE XPOE-6-11-S2
  • Connectors: 5x RJ45 PoE, 1x RJ45 Uplink
  • Data transfer rate: 100 Mbps
  • PoE: Input LAN1: 802.3af, passive PoE; output LAN1-5: PoE
  • Power supply: 56V
  • Energy consumption: lt;1.5 W
  • Protection class: IP56
  • Operating temperature: -25...+65 °C
  • Surge protection
6-port switch ATTE XPOE-6-11-S2 (5x PoE, 100Mbps, IP56)

6-port switch ATTE XPOE-6-11-S2 (5x PoE, 100Mbps, IP56)

Product reference: 26-ATTEXPOE611S2
  • Type: Switch
  • Model: ATTE XPOE-6-11-S2
  • Connectors: 5x RJ45 PoE, 1x RJ45 Uplink
  • Data transfer rate: 100 Mbps
  • PoE: Input LAN1: 802.3af, passive PoE; output LAN1-5: PoE
  • Power supply: 56V
  • Energy consumption: lt;1.5 W
  • Protection class: IP56
  • Operating temperature: -25...+65 °C
  • Surge protection
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
58,53 €
Last product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • General information
  • Total number of ports 5 PoE Ports, 1 UpLink Port
  • PoE OUT ports LAN 1 ... LAN 5 PoE Passive
  • PoE IN/OUT LAN 5 PoE Passive
  • LAN Ports 10/100Mbps LAN 1 ... LAN 6
  • LAN + PoE OUT Ports 10/100Mbps LAN 1 ... LAN 5
  • LAN Long Range Ports LAN 1 ... LAN 4 - 10Mbps range up to 280 m
  • Input voltage 10 ... 56 V
  • PoE output voltage Vout = Vin
  • Maximum output power per port PoE Passive LAN 1 ... LAN 4 - 40 W, LAN 5 - 70 W
  • Power control at output PoE ON/OFF switch - positions 1...5 (LAN 1...LAN 5)
  • Surge protection LAN 1 ... LAN 6
  • Overload protection LAN 1 ... LAN 4 Overload protection 0.75A LAN 5 Overload protection 1.25A
  • Energy indication LED PWR (white) - power presence
  • PoE indication LED LAN 1 ... LAN 5 (red) - PoE power presence
  • Transmission indication LED LAN 1 ... LAN 6 (green) - link and data transmission
  • Operating temperature range -25°C...+65°C
  • Dimensions (W × H × D) 110 x 150 x 70 mm
  • Weight 0.39 kg
  • Degree of protection IP56
  • Housing ABOX-S2 / plastic / gray / cable glands 6 x M16
  • Installation Wall-mounted, mounting brackets
  • EAN code 5902143690498
  • PKWiU code 26.30.23.0
  • HS code 8517 62
  • CN2020 code 8517 62 00

ManufacturerATTE
Manufacturer codeATTEXPOE611S2
Weight0.347 kg
