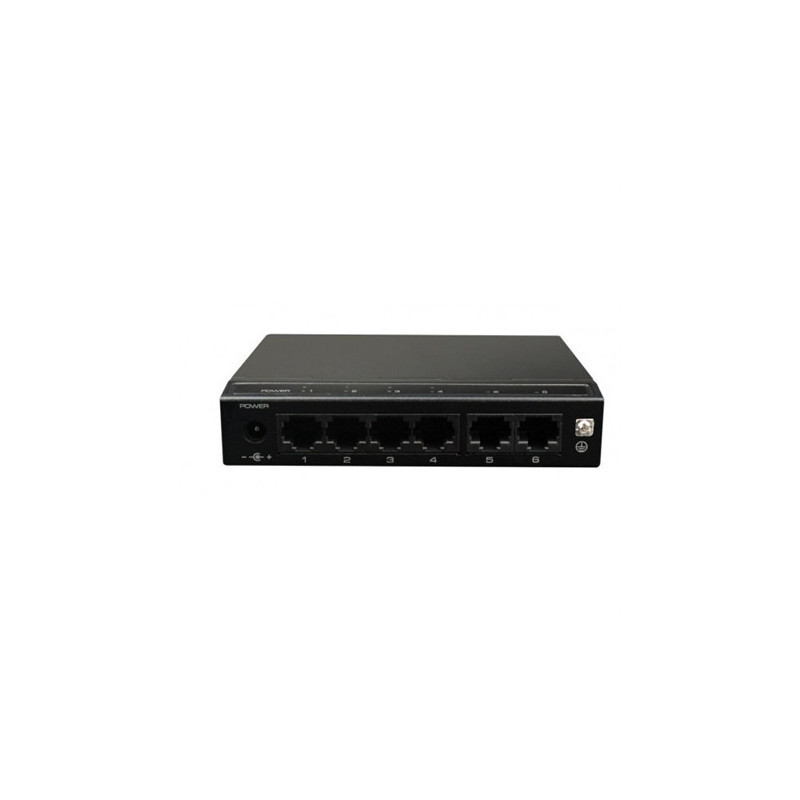

6-port 4 PoE port switch UTEPO SF6P-FHM

Model

SF6P-FHM

Ethernet ports

4*10/100Base-TX (PoE)

2*10/100Base-TX Ethernet Ports

Standards

IEEE 802.3, IEEE802.3u, IEEE 802.3x, IEEE802.3af, IEEE802.3at

Switch capacity

1.2Gbps

Packet transfer speed

0.89Mpps

Transmission modes

Store and Forward

MAC table

1k

Three operating modes

DEFAULT. All ports are free to communicate.

VLAN. 1~4 ports are isolated from each other,

but can communicate with uplink ports.

CCTV. The transmission distance can be up to 250m,

but the rate is limited to 10Mbps.

Assigning PoE ports

1/2 (+), 3/6 (-)

PoE power output

One prievadas≤30W (DC 54V)

PoE capacity ≤60W

Discharge resistance

4kV, Standards IEC61000-4-5

ESD protection

6kV contact discharge/8kV air discharge. Standards IEC61000-4-2

Input voltage

DC 54V 1.11A

Energy consumption

＜4W

Operating temperature

0 ~40

Storage temperature

-40 ~70

Moisture resistance during operation

5%~95% (no condensation)

Dimensions (W*D*H)

122mm * 92mm * 25mm

Total weight

564.0g

Net weight

216.6g

Certificates

CE, FCC, RoHS
