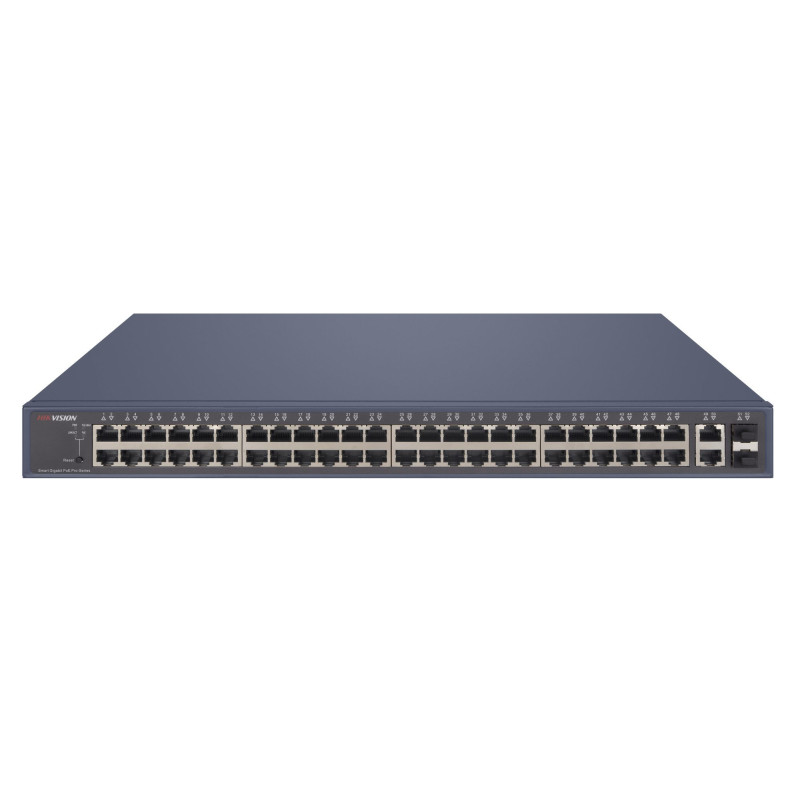

52-port, 48 PoE-port switch Hikvision DS-3E1552P-SI
Product reference:
26-6931847195250
- 52 ports
- 48 × 1000 Mbps PoE LAN ports, 2 × 1000 Mbps PoE LAN ports 2 × 1000 Mbps SFP ports
- PoE ports: 48
- Maximum power: 470W
- Total bandwidth: 104 Gbps
- Packet throughput rate: 77.38 Mpps
- MAC address table: 16K
- Current: 5 A
- Mounting: Rackmount
- Operating temperature range: 0°C ~ 45°C
52-port, 48 PoE-port switch Hikvision DS-3E1552P-SI
Product reference:
26-6931847195250
- 52 ports
- 48 × 1000 Mbps PoE LAN ports, 2 × 1000 Mbps PoE LAN ports 2 × 1000 Mbps SFP ports
- PoE ports: 48
- Maximum power: 470W
- Total bandwidth: 104 Gbps
- Packet throughput rate: 77.38 Mpps
- MAC address table: 16K
- Current: 5 A
- Mounting: Rackmount
- Operating temperature range: 0°C ~ 45°C
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
- Approvals
- Certification of chemical components CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
- EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (AS/NZS CISPR 32: 2015)
- Security UL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
- Call function
- Long range mode Up to 300 m transmission
- General data
- Size 440.00 mm × 44.00 mm × 323.80 mm (17.32'' × 1.73'' × 12.71'')
- Total weight 4.5 kg (9.92 lb)
- Max. power consumption 500W
- Net weight 4.35 kg (9.59 lb)
- Working humidity 5% to 95% (no condensation)
- Working temperature 0 °C to 45 °C (32 °F to 113 °F)
- Power consumption in sleep mode 30W
- Energy source 220VAC, 50/60Hz
- Relative humidity 5% to 95% (no condensation)
- Frame Metal material
- Storage temperature -40 °C to 85 °C (-40 °F to 185 °F)
- Network settings
- Forwarding mode Store-and-forward switching
- Internal cache memory 12 Mbit
- MAC address table 16 K
- Packet forwarding speed 77.376 Mpps
- Port type RJ45 port, full duplex, MDIMDI-X adaptive
- Connectors 48 × 1 Gigabit PoE port,2 × 1 Gigabit fiber optical port,2 × 1 Gigabit RJ45 port
- Standard IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3ab,IEEE 802.3z
- Switching capacity 104 Gbps
- Working mode Standard mode (default), Extend mode
- PoE
- Max PoE port power 30W
- PoE port PoE: Ports 1 to 48
- PoE power budget 470W
- PoE power connector End-span: 1/2/7/8(-)，3/4/5/6(+)
- PoE standard IEEE 802.3af,IEEE 802.3at
- Software features
- DHCP DHCP supported
- Device maintenance Support remote upgrade, default parameter restoration, logs viewing, basic network parameter configuration, import and export configuration, and time synchronization.
- LLDP LLDP supported for port configuration, global configuration, and neighbor discovery
- Connecting connections Support static link aggregation.
- PoE configuration PoE watchdog: Ports 1 to 48 auto detect and restart the cameras that do not respond. PoE enabling: supported
- Port configuration Support port rate configuration, flow control, and ports enabling.
- Port insulation Ports in an isolation group cannot communicate with each other.
- Port mirroring Supported
- Port speed limit Rate-limiting for ingress and egress ports
- Quality of Service (QoS) WRR and SP scheduling and port priority
- SNMP SNMPv1 and SNMPv2c supported for obtaining node information of the system and interfaces
- STP STP and RSTP
- Storm Control Storm control of unknown unicast, multicast, and broadcast
- VLANs Supported
| Manufacturer | Hikvision |
| Manufacturer code | SWITCHDS3E1552PSI |
| Weight | 4.24 kg |
