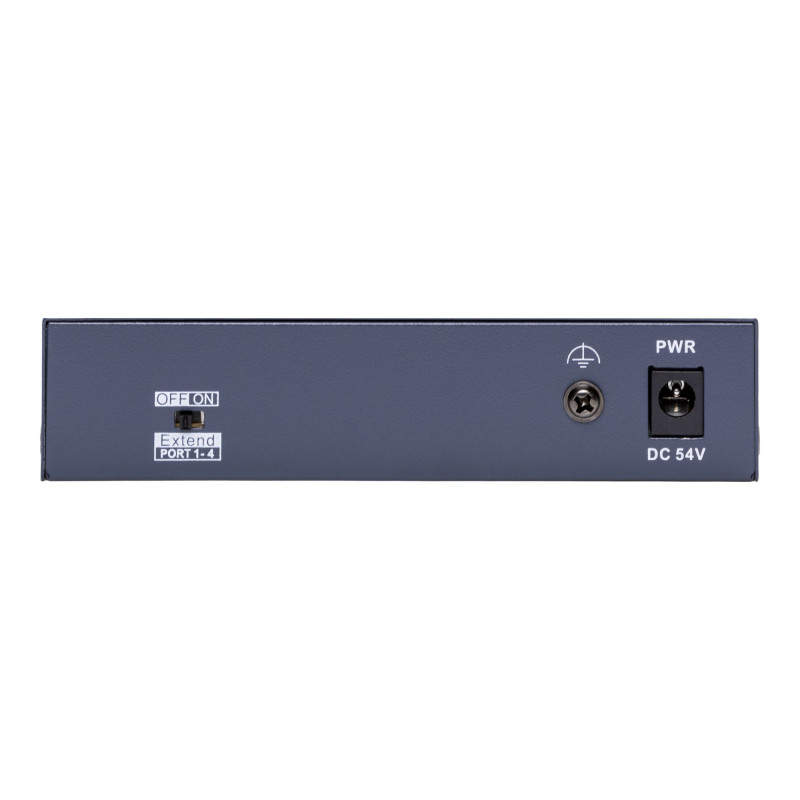

5 ports, 4 PoE switch Hikvision DS-3E0105P-E / M(C)
Product reference: 26-6942160446820
  • Type: Switch
  • Brand: Hikvision
  • Model: DS-3E0105P-E/M(C)
  • Ports: 5 (4 PoE, 1 Uplink 100 Mbps)
  • PoE power: 58W
  • Transmission distance: up to 250 m (10 Mbps)
  • Priority ports
  • Protection: 6 kV
  • Network level: L2
  • Operating temperature: 0°C ~ 40°C
5 ports, 4 PoE switch Hikvision DS-3E0105P-E / M(C)

5 ports, 4 PoE switch Hikvision DS-3E0105P-E / M(C)

Product reference: 26-6942160446820
  • Type: Switch
  • Brand: Hikvision
  • Model: DS-3E0105P-E/M(C)
  • Ports: 5 (4 PoE, 1 Uplink 100 Mbps)
  • PoE power: 58W
  • Transmission distance: up to 250 m (10 Mbps)
  • Priority ports
  • Protection: 6 kV
  • Network level: L2
  • Operating temperature: 0°C ~ 40°C
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
35,29 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
Not available
  • Approvals
  • Certification of chemical components CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
  • EMC CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),RCM (AS/NZS CISPR 32: 2015),IC (ICES-003: Issue 7:2020)
  • Security CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017),UL (UL 60950-1)
  • Call function
  • Long range mode Ports 1 to 4: up to 300 m. Long range performance may vary depending on camera model or cable condition.
  • General information
  • Dimensions (W × H × D) 121.1 mm × 27.6 mm × 83.1 mm (4.77'' × 1.08'' × 3.27'')
  • Total weight 0.5 kg (1.1 lb)
  • Installation Mode Desk-Mounted,Wall-Mounted
  • Max. power consumption 50W
  • Net weight 0.2 kg (0.44 lb)
  • Working humidity 5% to 95% (no condensation)
  • Working temperature 0 °C to 40 °C (32 °F to 104 °F)
  • Power consumption in sleep mode 5W
  • Power source 54 V DC, 0.92 A
  • Relative humidity 5% to 95% (no condensation)
  • Frame Metal material, fan-free design
  • Storage temperature -40 °C to 85 °C (-40 °F to 185 °F)
  • Surge protection 6 kV
  • Network settings
  • Internal cache memory 768 Kbits
  • MAC address table 2 K
  • Packet transfer rate 0.744 Mpps
  • Ports 4 × 10/100 Mbps PoE port,1 × 10/100 Mbps RJ45 port
  • Switching performance 1 Gbps
  • PoE
  • Max PoE port power 30W
  • PoE port PoE: Ports 1 to 4
  • PoE power budget 45W
  • PoE power connector End span: 1/2(-), 3/6(+)
  • PoE standard IEEE 802.3af,IEEE 802.3at

ManufacturerHikvision
Manufacturer codeSWITCHDS3E0105PEMC
Weight0.205 kg
