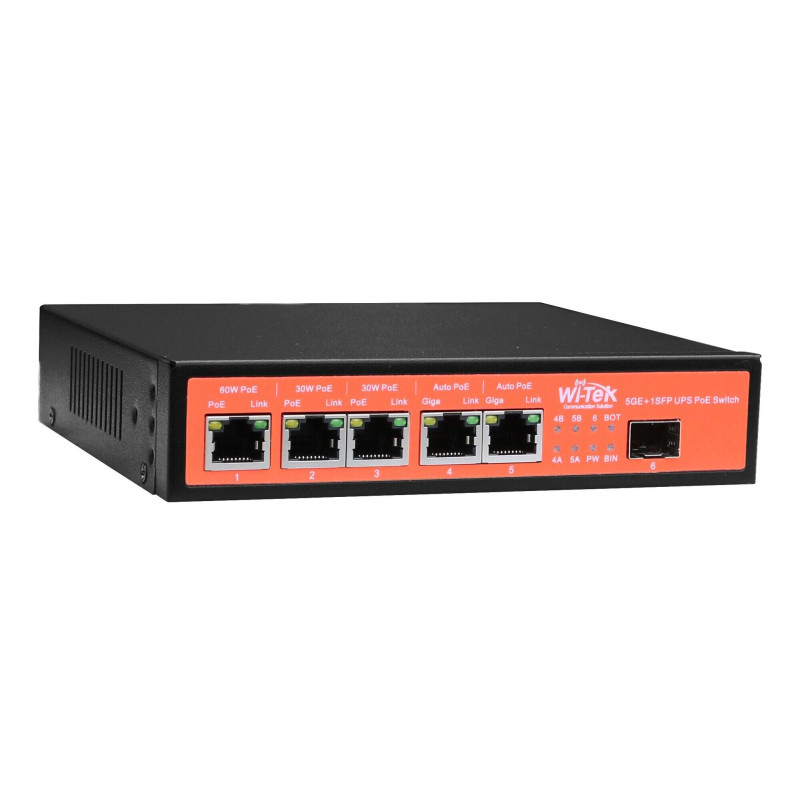

5-port, 5 PoE switch Wi-Tek WI-PS306GF-UPS
Product reference: 26-SWITCHWIPS306GFUPS
  • 5GE+1SFP Full Gigabit switch with 5 PoE ports
  • 60W high output PoE port
  • Internal solar controller and battery controller
5-port, 5 PoE switch Wi-Tek WI-PS306GF-UPS

5-port, 5 PoE switch Wi-Tek WI-PS306GF-UPS

Product reference: 26-SWITCHWIPS306GFUPS
  • 5GE+1SFP Full Gigabit switch with 5 PoE ports
  • 60W high output PoE port
  • Internal solar controller and battery controller
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
131,33 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
Interface5 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 1 1000Mbps SFP Slots
Network media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e, 6 or above cable (maximum 100m) 1000BASE-X: MMF, SMF 1000Base-L X:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)
VentilationFanless
Energy consumption120W (max. with PoE device connected) 5W Max (without PoE output)
DC energy sourceFor 12V Battery: DC 18-30V For 24V Battery: DC: 30-36V
Solar panel energy inputFor 12V Battery: 15-30V(12V standard ) For 24V Battery: 30-44V(24V standard ) 250W Max
Battery inputInput 12/24V 50AH Max
PoE prievadai(RJ45)Port1: 48V 802.3af/at bt PoE 60W (1245+, 3678-) Port 2-3: 48V 802.3af/at PoE 30W Port 4-5: 48V 802.3af/at PoE 30W or 24V Passive PoE 24W AUTO DETECT
Exchange capacity12Gbps
Packet transfer speed8.94Mpps
Mac address table2K
Packet buffer memory1Mb
Jumbo frame10240 Bytes
DimensionsProduct Size： 158mm* 142mm*35mm （L*W*H）
CertificatesCE, FCC, RoHS
Package contentsPOE Switch Electric Line Guide Book/Warranty Card
Environmental conditionsWorking Temperature： -20～60 Storage temperature： -30～70 Working Humidity： 10%～90% RH non-condensing Storage Humidity： 5%～90% RH non-condensing

ManufacturerWi-Tek
Manufacturer codeSWITCHWIPS306GFUPS
Weight1.263 kg
