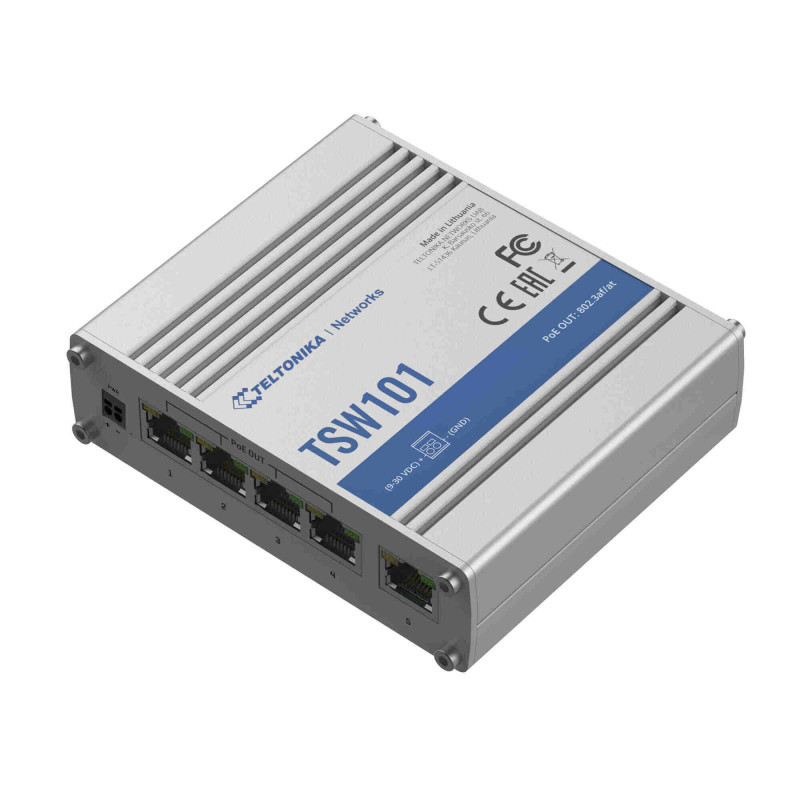

5-port, 4 PoE port switch TELTONIKA TSW101
Product reference: 26-SWITCHTELTSW101
  • 5 x Gigabit Ethernet up to 1000 Mbps speed
  • 4x PoE ports with 802.3af and 802.3at support
  • Uplink 1Gb
  • Total power PSE up to 60W
5-port, 4 PoE port switch TELTONIKA TSW101

5-port, 4 PoE port switch TELTONIKA TSW101

Product reference: 26-SWITCHTELTSW101
  • 5 x Gigabit Ethernet up to 1000 Mbps speed
  • 4x PoE ports with 802.3af and 802.3at support
  • Uplink 1Gb
  • Total power PSE up to 60W
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
69,15 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • Interfaces
  • Network 5 x RJ45 ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
  • PoE
  • PoE ports Ports 1- 4
  • PoE standards 802.3af and 802.3at
  • PoE maximum power per port (at PSE) 30W
  • Total PoE Power Budget (PSE) 60W
  • Maximum Ethernet cable length 100 m
  • Performance specifications
  • Throughput (non-blocking) 10Gbps
  • Packet buffer 128KB
  • Mac address size 2K entries
  • Jumbo frame support 9216 bytes
  • System parameters
  • Connectors 2-pin industrial DC power socket
  • Input voltage range 9-30VDC
  • PoE input voltage range 9-30VDC
  • Energy consumption Idle: 0.64 W / Max: 2.31 W / PoE Max: 60 W
  • Physical interfaces (PORTS, LEDS)
  • Network 5 x RJ45 ports, 10/100/1000 Mbps
  • Status LED lights 1 x Power LED, 10 x LAN Status LED's
  • System parameters 1 x 2-pin industrial DC power socket
  • Grounding 1 x Grounding screw
  • Physical specifications
  • Housing Aluminum housing
  • Size 115 x 32 x 95 mm
  • Weight 354 g
  • Installation DIN rail or wall mounting (additional kit needed), flat surface placement
  • Working environment
  • Operating temperature -40°C to +75°C
  • Humidity 10% to 90% non-condensing
  • IP rating IP30
  • Certificates
  • Regulatory CE, REACH, RoHS, WEEE
  • TSW101 CE
  • TSW101 UKCA
  • TSW101 FCC
  • TSW101 IC
  • TSW101 CB
  • TSW101 RCM
  • E-Mark
  • Security
  • Standards EN IEC 62368-1:2020+A11:2020

ManufacturerTeltonika Networks
Manufacturer codeSWITCHTELTSW101
Weight0.384 kg
