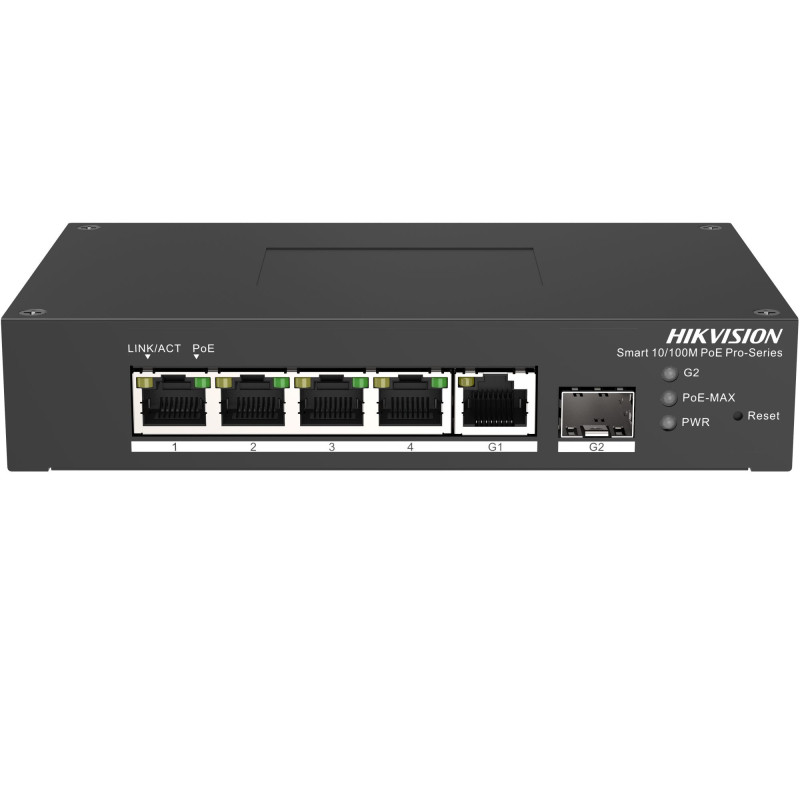

5-port, 4 PoE port switch Hik-vision DS-3T1306P-SI / HS
Product reference:
26-6931847175498
- Visualized topology management.
- Network health monitor.
- Layer 2 functions: PoE monitor, STP/RSTP, VLAN, SNMP, QoS, ERPS, etc.
- -30°C to 65°C wide temperature range in harsh environments.
5-port, 4 PoE port switch Hik-vision DS-3T1306P-SI / HS
Product reference:
26-6931847175498
- Visualized topology management.
- Network health monitor.
- Layer 2 functions: PoE monitor, STP/RSTP, VLAN, SNMP, QoS, ERPS, etc.
- -30°C to 65°C wide temperature range in harsh environments.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
- Network settings
- Port 4 × 10/100 Mbps PoE port,1 × 1 Gigabit RJ45 port,1 × 1 Gigabit fiber optical port
- Port type RJ45 port, full duplex, MDIMDI-X adaptive
- Standard IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
- Transmission mode Store-and-forward switching
- Working mode Standard mode (default)
- MAC address table 2 K
- Switching capacity 4.8 Gbps
- Packet forwarding speed 3.57 Mpps
- Internal cache memory 1 Mbit
- PoE
- PoE standard IEEE 802.3af,IEEE 802.3at
- PoE power connector
End span: 1/2(-), 3/6(+)
Mid-span: 4/5(+), 7/8(-)
8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
- PoE port PoE: Ports 1 to 4
- Max PoE port power 30W
- PoE available power 60W
- Software features
- Device maintenance Support remote upgrade, default parameter restoration, logs viewing, basic network parameter configuration, import and export configuration, and time synchronization.
- Port configuration Support port rate configuration, flow control, and ports enabling.
- Long range mode Ports 1 to 4: up to 300 m
- PoE configuration
PoE watchdog: Ports 1 to 4 auto detect and restart the cameras that do not respond.
PoE enabling: supported
- Port speed limit Rate-limiting for ingress and egress ports
- Storm control Storm control of unknown unicast, multicast, and broadcast
- Port mapping Supported
- Port insulation Ports in an isolation group cannot communicate with each other.
- QoS WRR and SP scheduling and port priority
- VLANs 4094 VLANs
- STP STP and RSTP
- SNMP SNMPv1 and SNMPv2c supported for obtaining node information of the system and interfaces
- LLDP LLDP supported for port configuration, global configuration, and neighbor discovery
- DHCP Supported
- ERPS Supported
- Home
- Frame Metal material
- Weight without packaging 0.4 kg (0.8 lb)
- Weight with packaging 1.0 kg (2.2 lb)
- Size 158.00 mm × 101.20 mm × 31.60 mm (6.20'' × 3.90'' × 1.20'')
- Working conditions humidity -30 °C to 65 °C (-22 °F to 149 °F)
- Storage conditions temperature -40 °C to 85 °C (-40 °F to 185 °F)
- Working conditions humidity 5% to 95% (no condensation)
- Relative humidity 5% to 95% (no condensation)
- Power supply Power adapter: 48 VDC (working temperature: 0°C to 45°C); Grounding terminal: 48-57 VDC (working temperature: -30°C to 65°C)
- Max. power consumption 65W
- Power consumption in sleep mode < 5W
- Approvals
- EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (AS/NZS CISPR 32: 2015)
- Security UL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 + A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
- Chemical analysis CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
| Manufacturer | Hikvision |
| Manufacturer code | SWITCHDS3T1306PSIHSPOE |
| Weight | 0.395 kg |
