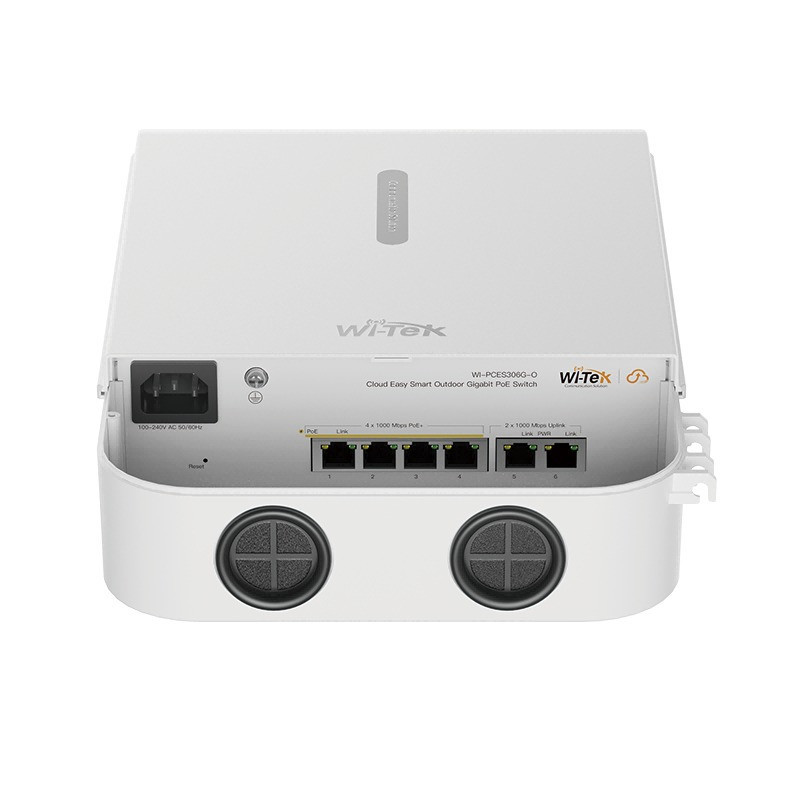

4-port switch Wi-Tek WI-PCES306G-O
Product reference: 26-SWITCHWIPCES306GO
  • Type: Switch
  • Model: WI-PCES306G-O
  • Brand: Wi-Tek
  • Ports: 4 PoE (100/1000 Mbps), 2 Uplink (1000 Mbps)
  • Transmission rate: 12 Gbps
  • Packet throughput: 8.93 Mpps
  • MAC address capacity: 8000
  • Buffer: 4.1 Mbit
  • Jumbo packets: up to 9216 Bytes
  • Operating temperature: -30°C to +60°C
4-port switch Wi-Tek WI-PCES306G-O

4-port switch Wi-Tek WI-PCES306G-O

Product reference: 26-SWITCHWIPCES306GO
  • Type: Switch
  • Model: WI-PCES306G-O
  • Brand: Wi-Tek
  • Ports: 4 PoE (100/1000 Mbps), 2 Uplink (1000 Mbps)
  • Transmission rate: 12 Gbps
  • Packet throughput: 8.93 Mpps
  • MAC address capacity: 8000
  • Buffer: 4.1 Mbit
  • Jumbo packets: up to 9216 Bytes
  • Operating temperature: -30°C to +60°C
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
62,61 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • General information
  • Model WI-PCES306G-O
  • Hardware version V1
  • PoE ports 4 x 10/100/1000Mbps RJ45 PoE Ports (Ports 1-4)
  • PoE standard 802.3af/at 30W via port
  • PoE Power 30W max per port, Total PoE budget: 60W
  • PoE pin assignment 1/2(+), 3/6(-)
  • Uplink ports 2 x 10/100/1000Mbps Ethernet Ports
  • Standards and protocols IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, 802.3ad, 802.3af, 802.3at
  • Forwarding mode Store and Forward
  • Switching capacity 12Gbps
  • Packet forwarding rate 8.93Mpps
  • MAC address table 8k
  • Packet buffer memory 4.1Mbit
  • Jumbo package 9216 Bytes
  • Memory and Flash Memory: 128KB, Flash: 16MB
  • Input power 100~240V AC 50/60Hz
  • Energy consumption Idle: 5W, Full Load: 65W
  • LED indicators PWR(Orange): On=Normal, Off=Power off/failure; PoE(Orange): On=Enabled, Off=Disabled; Link(Orange): On=Connected, Off=Disconnected, Blinking=Data Transmission
  • Reset button Hold > 5 sec. to restore factory defaults
  • Number of fans Fanless
  • Dimensions 314 × 210 × 89mm
  • Package dimensions 405 × 253 × 97mm
  • Weight Net: 1.12kg, Package: 1.80kg
  • Installation Wall-mounted, Pole-mounted
  • Surge protection IEC 61000-4-5: Common mode 4kV, Differential mode 2kV
  • ESD protection IEC 61000-4-2: Contact discharge 6kV, Air discharge 8kV
  • Certification CE, FCC, RoHS, UKCA, RCM
  • Work environment -30 to 60 (-22 to 122); 10-90% RH non-condensing
  • Storage environment -40 to 70 (-40 to 158); 5-90% RH non-condensing
  • DIP switch 1. Extend (PoE up to 250m @10Mbps), 2. VLAN (PoE ports to Uplink only), 3. PD Alive (PoE watchdog for auto reboot)
  • Software features Port Statistics, Cable Diagnostics, Loop Guard, Ping Test, Port Mirroring, Port Isolation, Jumbo Frame, Static/Filter/Search MAC, DHCP Snooping, Port Aggregation, Port Rate Control, Storm Control, VLAN (1-4094), PD Alive, Extend PoE
  • Cloud computing management Wi-Tek Cloud APP management, Remote Access, ONVIF detection, Intelligent Monitoring, Auto Discovery
  • Package contents Switch x1, Power Cord x1, Rubber Plug x2, Wall Hanging Sticker x1, Metal Tie x2, Quick Installation Guide x1, Optional: M36 Waterproof Gland x2

ManufacturerWi-Tek
Manufacturer codeSWITCHWIPCES306GO
Weight1.32 kg
