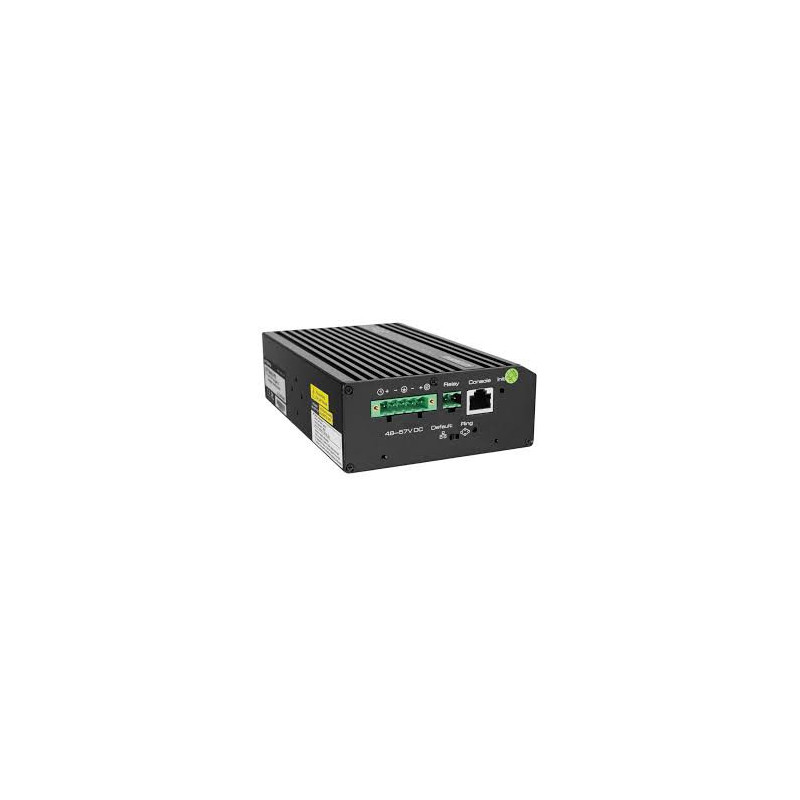

4-port industrial switch UTEPO UTP7304GE

Model

UTP7304GE

Copper connectors

4* 10/100/1000Base-T RJ45(Auto-MDI/MDI-X)

SFP connectors

2*1000 Base-X SFP(Mini-GBIC)

Console connector

1*RJ45-R232 serial port(115200,8,N,1)

Home button

Short press: restart;

> 5s restore factory settings

Alarm snooze

Support relay alarm for power off, ports network link-off （Set by Web Software）

Network standard

IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3Z, IEEE802.3X, IEEE 802.1Q IEEE 802.1p IEEE 802.3ad, IEEE 802.1D, IEEE 802.1X

Switching capacity

24Gbps / non-blocking

Switching bandwidth

17.9Mpps

Switching architecture

Store and Forward

Amount of data shared

4Mbit

Address table

8K MAC address table with auto learning function

"Jumbo" frame

10K bytes

Lightning protection

6KV Execute：IEC61000-4-5

ESD

8KV Contact discharge

15KV Air discharge

Execute：IEC61000-4-2

Power supply

DC12V～57V

Power consumption

Self comsupmtion< 30W

Operating temperature

-40-75

Storage temperature

-40-85

Humidity

5%-95%(Non-condensing)

Dimensions (L×W×H)

159mm×110mm×46.5mm

Weight

1.5kg

Installation

On desk;Din-rail;Wall hung

MTBF

330000 Hours

Certificates

CE, FCC, ROHS

Software

Connection management

Support Port Enable/Disable;

Support Port Rate Settings;

Support Port Full-duplex Mode;

Support IEEE802.3x Flow Control;

Support Port Name Change;

VLANs

Support 4K VLAN

Support 802.1Q Protocol-Based VLAN;

Support Port-Based VLAN;

QoS

Support QoS;

Support 8-Level Priority management for switching;

Support WRR;

Support 820.1P and DSCP Priority;

Multi-stream management

Support SNMP V1/V2/V3 Protocol;

Support IGMP Snooping;

Alarm relay signal output

Support relay alarm for power off, ports network link-off, ports PoE off

Security

Support IP, MAC, Port, VLAN Combination and Binding;

Support MAC address auto-learning, aging filter;

Support Port Isolation, Port Speed-Limited;

Support RSTP;

Support Fast-Ring;

Support 5 groups of 8-Port trunk;

Support RADIUS Authentication 802.1X Authentication;

System maintenance and support

Support WEB Management, CLR Settings and telnet Settings;

Support CLR Settings;

Support FTP/TFTP/HTTP Web Upgrading;

Support Flow Calculate;

Support MAC address Form Search;

Support IP Address, DNS Server Change

Support Username Password Change;

Support History Record, Journal management;

Support System settings Backup;
