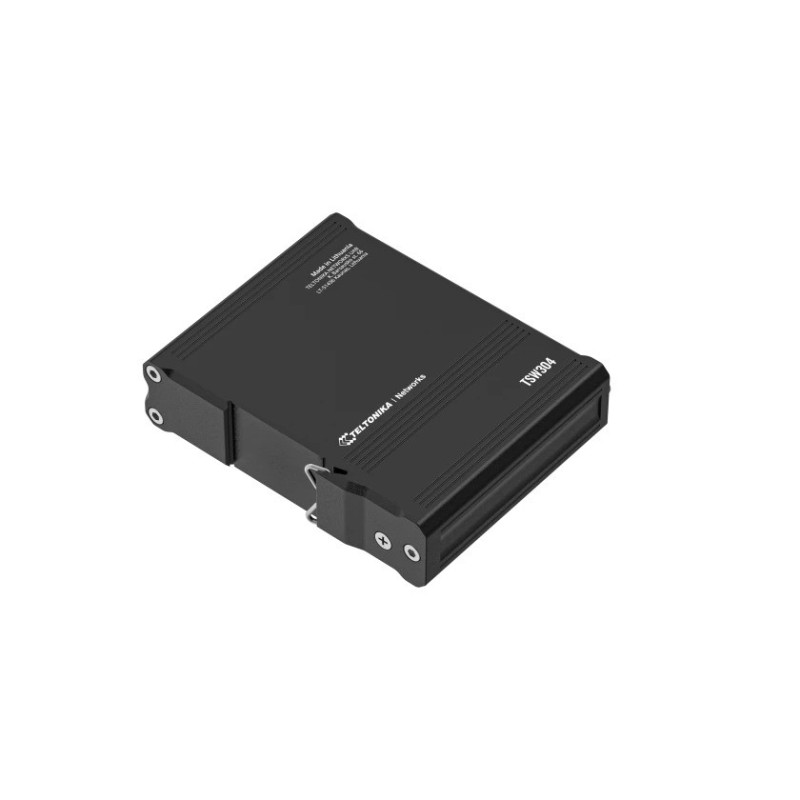

4-port industrial switch TELTONIKA TSW304
Product reference:
26-SWITCHTELTSW304
- 4 x Gigabit Ethernet up to 1000 Mbps speed
- Operating temperature: -40 °C to 75 °C
- Can be mounted on DIN rails
4-port industrial switch TELTONIKA TSW304
Product reference:
26-SWITCHTELTSW304
- 4 x Gigabit Ethernet up to 1000 Mbps speed
- Operating temperature: -40 °C to 75 °C
- Can be mounted on DIN rails
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
- Home
- ETH 4 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
- IEEE 802.3 series standards 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
- Throughput (non-blocking) 8 Gbps
- Packer buffer 128KB
- Mac address size 2K entries
- Jumbo frame support 9216 bytes
- Connectors 2-pin industrial DC power socket
- Input voltage range 7 - 57 VDC; 9 - 40 VAC
- PoE (passive) Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
- Energy consumption Idle: 0.26 W / Max: 1.44 W
- Network 4 x RJ45 ports, 10/100/1000 Mbps
- LED indicators 8 x ETH status LEDs, 1 x Power LED
- System parameters 1 x 2-pin industrial DC power socket
- Other 1 x Grounding screw
- Housing Aluminum housing
- Size 102 x 25 x 81.5 mm
- Weight 210 g
- Installation DIN rail or wall mounting
- Operating temperature -40°C to 75°C
- Humidity 10% to 90% non-condensing
- IP rating IP30
- Regulation CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM
- Standards EN IEC 62368-1:2020+A11:2020
| Manufacturer | Teltonika Networks |
| Manufacturer code | SWITCHTELTSW304 |
| Weight | 0.000000 kg |
