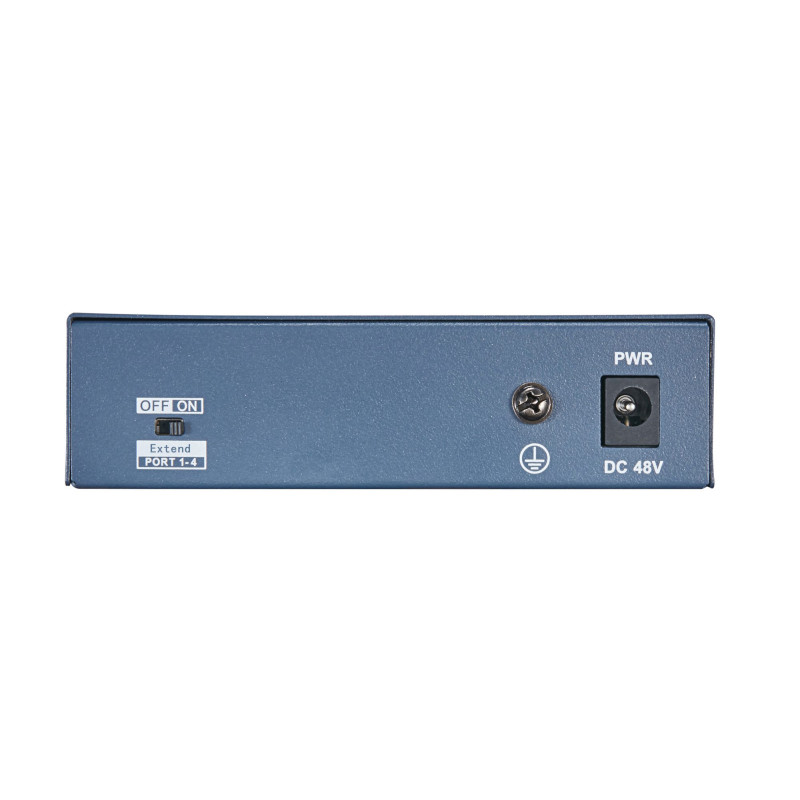

4 port, 4 PoE switch Hikvision DS-3E0105P-E
Product reference: 26-6941264012078
  • 4 × 100 Mbps PoE ports, and 1 × 100 Mbps port
  • IEEE 802.3at/af standard.
  • IEEE 802.3, IEEE 802.3u and IEEE 802.3x standard.
  • 8-branduolių power supply.
  • 6 KV PoE port surge protection.
  • PoE power supply.
  • Sturdy metal body
  • Reliable ventilation
4 port, 4 PoE switch Hikvision DS-3E0105P-E

4 port, 4 PoE switch Hikvision DS-3E0105P-E

Product reference: 26-6941264012078
  • 4 × 100 Mbps PoE ports, and 1 × 100 Mbps port
  • IEEE 802.3at/af standard.
  • IEEE 802.3, IEEE 802.3u and IEEE 802.3x standard.
  • 8-branduolių power supply.
  • 6 KV PoE port surge protection.
  • PoE power supply.
  • Sturdy metal body
  • Reliable ventilation
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
37,01 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
Not available
  • Network settings
  • Ports 4 × 10/100 Mbps PoE ports, and 1 × 10/100 Mbps RJ45 port
  • Port type RJ45 port, full duplex, MDI/MDI-X adaptive
  • Working mode Standard mode (default); Extend mode
  • Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x
  • Transmission mode Store-and-forward switching
  • High priority ports Ports 1 to 2
  • MAC address table 1 K
  • Switching capacity 1 Gbps
  • Packet forwarding speed 0.744 Mpps
  • Internal cache memory 448 Kbits
  • PoE
  • PoE standard IEEE 802.3af, IEEE 802.3at
  • PoE power connector

    End span: 1/2(-), 3/6(+)

    Mid-span: 4/5(+), 7/8(-)

    8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
  • PoE port Ports 1 to 4
  • Max PoE port power 30W
  • PoE available power 35W
  • Call function
  • Long range mode Ports 1 to 4: up to 300 m; and the speed rate of the port is 10 Mbps.
  • Home
  • Size 105 mm × 27.6 mm × 83.1 mm (4.1" × 1.1" × 3.3")
  • Frame Metal material, fan-free design
  • Weight with packaging 0.48 kg (1.06 lb)
  • Weight without packaging 0.20 kg (0.40 lb)
  • Working conditions humidity -10 °C to 55 °C (14 °F to 131 °F)
  • Working conditions humidity 5% to 95% (no condensation)
  • Storage conditions temperature -40 °C to 85 °C (-40 °F to 185 °F)
  • Storage conditions humidity 5% to 95% (no condensation)
  • Power supply 48 VDC, 0.8 A
  • Power consumption in sleep mode 3W
  • Approvals
  • EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
  • Security UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
  • Chemical analysis CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

ManufacturerHikvision
Manufacturer codeSWITCHDS3E0105PE
Weight0.2 kg
