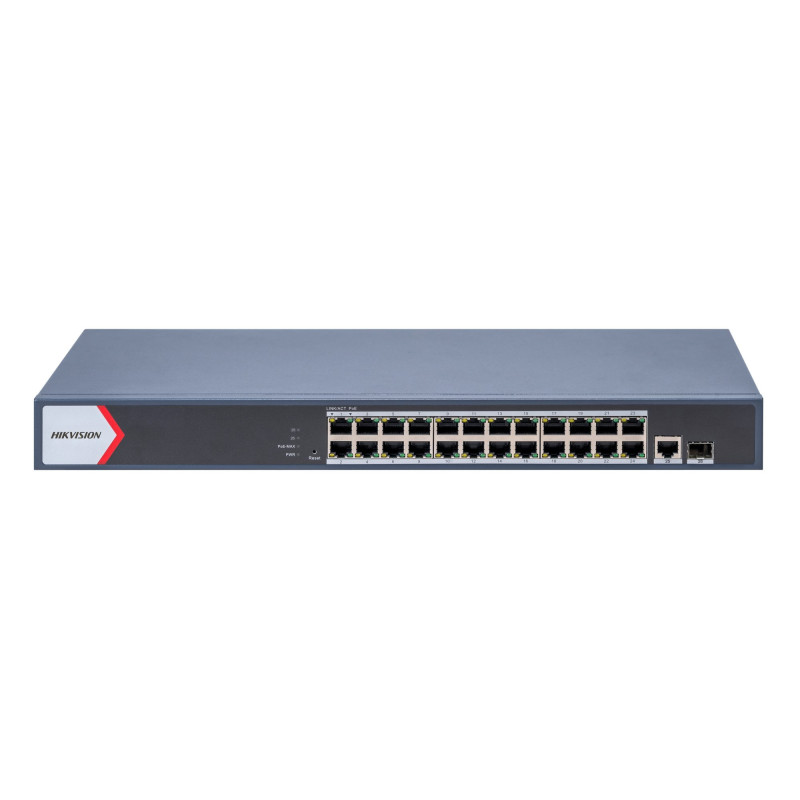

26-port, 24 PoE-port switch Hikvision DS-3E1526P-EI / M (managed, 1xSFP)
Product reference: 26-6942160430904
  • Connectors: 24 × Gigabit PoE, 1 × Gigabit RJ45, 1 × Gigabit optical
  • Total PoE power: 230 W
  • Protocol: IEEE 802.1Q VLAN, STP, RSTP, DHCP snooping
  • Power Management: Power Saving Mode, IEEE 802.3az EEE
  • Functions: cable fault detection
  • Protection: 6 kV surge protection
26-port, 24 PoE-port switch Hikvision DS-3E1526P-EI / M (managed, 1xSFP)

26-port, 24 PoE-port switch Hikvision DS-3E1526P-EI / M (managed, 1xSFP)

Product reference: 26-6942160430904
  • Connectors: 24 × Gigabit PoE, 1 × Gigabit RJ45, 1 × Gigabit optical
  • Total PoE power: 230 W
  • Protocol: IEEE 802.1Q VLAN, STP, RSTP, DHCP snooping
  • Power Management: Power Saving Mode, IEEE 802.3az EEE
  • Functions: cable fault detection
  • Protection: 6 kV surge protection
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
261,03 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • Approvals
  • Certification of chemical components CE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006)
  • EMC CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
  • Security CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
  • General information
  • Dimensions (W × H × D) 440.0 mm × 220.8 mm × 44.0 mm (17.32'' × 8.69'' × 1.73'')
  • Total weight 3.2 kg (7.05 lb)
  • Installation Mode Rack (equipped with mounting ears)
  • Max. power consumption 250W
  • Net weight 2.96 kg (6.52 lb)
  • Working humidity 5% to 95% (no condensation)
  • Operating temperature 0 °C to 45 °C (0 °F to 113 °F)
  • Power consumption in sleep mode 30W
  • Power source 100~240 VAC, 50/60 Hz, Max. 4 A
  • Relative humidity 5% to 95% (no condensation)
  • Frame Metal material
  • Storage temperature -40 °C to 85 °C (-40 °F to 185 °F)
  • Surge protection 6 KV
  • Network settings
  • Internal cache memory 4.1 Mbits
  • MAC address table 8 K
  • Packet transfer rate 41.66 Mpps
  • Ports 24 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port
  • Switching performance 56 Gbps
  • PoE
  • Max PoE port power 30W
  • PoE port PoE: Ports 1 to 24
  • PoE power budget 230W
  • PoE power connector 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
  • PoE standard IEEE 802.3af,IEEE 802.3at
  • Software features
  • DHCP monitoring DHCP Snooping can prevent unauthorized connections to DHCP servers from disrupting the network and affecting normal network communication, and only allow DHCP packets from trusted ports to pass through. Disabled by default.
  • HPP Support one-click activation and remote management via Hik-Partner Pro. Functions supported:1. Display the port rate.2. Display the port bandwidth utilization rate.3. Display the PoE power usage.4. Display topology information.5. Display the alarm status.6. Restart ports and devices.7. Enable port long-rage mode.8. Remotely upgrade the device.
  • Connection aggregation Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 8 aggregation groups.
  • Long range mode Ports 1 to 24: up to 300 m. Long range performance may vary depending on camera model or cable condition.
  • Loop Prevention Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. Support 802.1w RSTP.
  • PoE Watchdog Ports 1 to 24: auto detect and restart the cameras that do not respond.
  • Port isolation Ports 1 to 26: port isolation mode to improve network security Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
  • Quality of Service (QoS) QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance. Support port-based priority configuration. Support SP and WRR priority scheduling modes.
  • System Maintenance Support device management via web. Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. Support Super IP, which is a configurable IP address (default: 10.180.190.200) for direct access. Support management via Hik-Central Pro. Support remote management via Hik-Partner Pro. Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. Support 802.1ab LLDP for peer device discovery. Support port mirroring for fault locating.
  • VLANs VLAN is used for network scale planning and network health improvement. Support 802.1Q.Configurable VLAN ID from 1-4094.Support Trunk, Access port mode. Support Max. 32 VLANs.

ManufacturerHikvision
Manufacturer codeSWITCHDS3E1526PEIM
Weight2.675 kg
