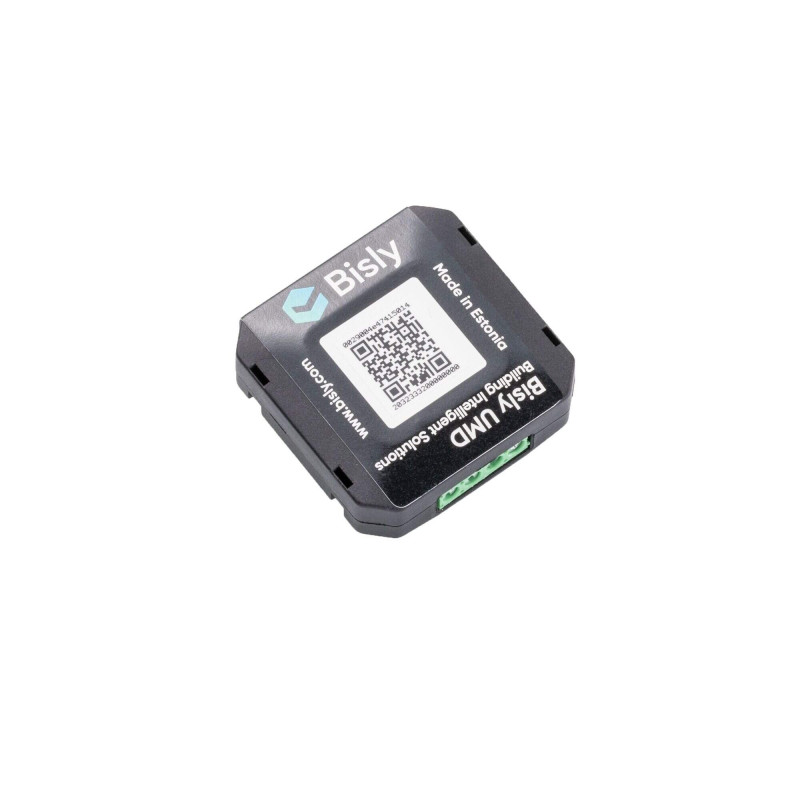

2-channel dimmer BISLY UMD (24VDC, IP40)
Product reference:
26-APUMD
- Type: Dimmer
- Brand: BISLY
- Model: UMD
- Channels: 2
- Power supply: 24 V DC
- Protection class: IP40
- For lighting control
2-channel dimmer BISLY UMD (24VDC, IP40)
Product reference:
26-APUMD
- Type: Dimmer
- Brand: BISLY
- Model: UMD
- Channels: 2
- Power supply: 24 V DC
- Protection class: IP40
- For lighting control
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
- Electrical data
- Supply voltage: 24VDC±25%
- Energy consumption: max. 1W @24V
- Overcurrent protection: approx. 1.2 A
- Communication interface: RS-485 (Bisly proprietary protocol)
- 1-Wire bus support: up to 20 x 1-Wire sensors
- Maximum channel load: 220W
- Inrush current limit: 6 A (< 100 ms)
- Entrances
- Digital inputs: 2 x (+24VDC tolerant)
- Connection resistor: 2kOhm to +5VDC
- Active low level: ≤ 2V
- Environmental operating conditions
- Temperature range: +5 to +40°C
- Humidity: max. 80% RH (non-condensing)
- Safety
- Communication encryption: Fully encrypted RS485
- Encryption keys: Unique AES128 for each device
- Software update: Over-The-Air Update capability
- Product features
- Installation type: Electrical backbox (68 mm diameter)
- Color finish: Black, Matte
- Flammability of the shell: Fire retardant according to UL94 v0
- Weight and dimensions
- Total weight: 31 grams
- Product dimensions: 49x49x18 mm
- Certificates and standards
- Environmental protection class: IP40
- Markings: CE, RoHS, WEEE
- Directive compliance: LVD, EMC, RoHS, WEEE
| Manufacturer | BISLY |
| Manufacturer code | APUMD |
| Weight | 0.031 kg |
