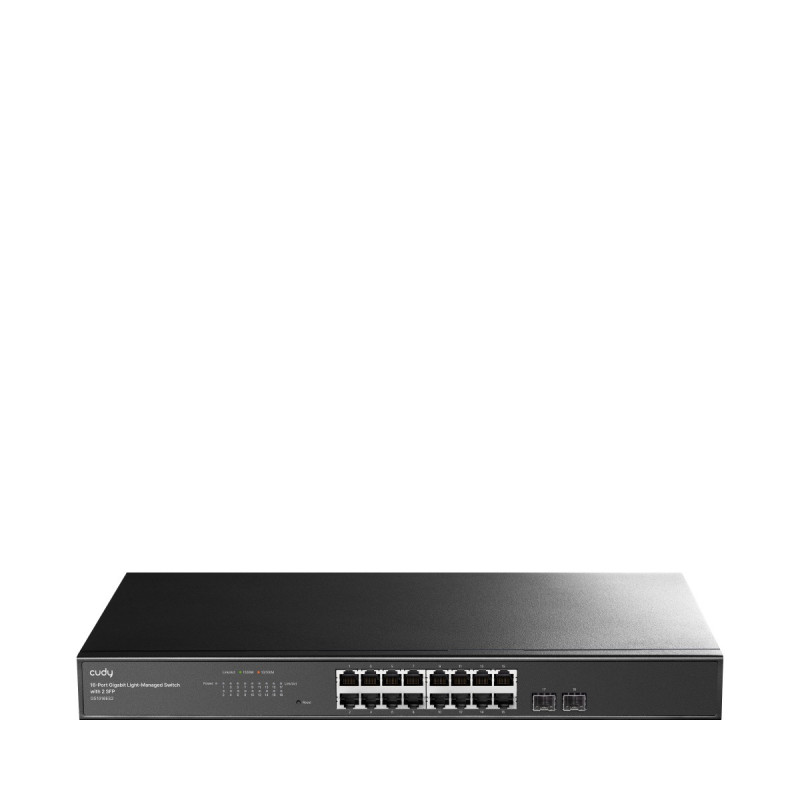

16-port switch Cudy GS1016ES2 (managed)
Product reference: 26-SWITCHCUDYGS1016ES2
  • Type: Managed network switch
  • Brand: CUDY
  • Model: GS1016ES2
  • Ports: 16 x Gigabit Ethernet, 2 x SFP
  • Management: Web, SNMP
  • Features: VLAN, QoS, Link Aggregation
  • Mounting: Rack
16-port switch Cudy GS1016ES2 (managed)

16-port switch Cudy GS1016ES2 (managed)

Product reference: 26-SWITCHCUDYGS1016ES2
  • Type: Managed network switch
  • Brand: CUDY
  • Model: GS1016ES2
  • Ports: 16 x Gigabit Ethernet, 2 x SFP
  • Management: Web, SNMP
  • Features: VLAN, QoS, Link Aggregation
  • Mounting: Rack
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
68,33 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • General information
  • Model version GS1016ES2 1.0
  • Flash/ROM 16 MB (128 Mbit) NOR
  • 1.25G SFP Slots 2
  • Gigabit RJ45 Ports 16
  • Advanced Mode Ports Configurable
  • VLAN mode ports Configurable
  • LED Power, Speed/Link/Activity of each Ethernet port
  • Physical buttons Reset Button
  • Max Copper Speed and Distance Cat. 3 or higher: 100 m at 10 Mbps, Cat. 5 or higher: 100 m at 100 Mbps, Cat. 5e or higher: 100 m at 1 Gbps, Cat. 5e or higher: 250 m at 10 Mbps
  • Copper speed and distance notes 250 m transmission available when port speed is set to 10 Mbps in software
  • Optical Specification and Distance Depends on installed optical module
  • MAC address table 8192 entries
  • VLANs 4096
  • Maximum switching capacity 36 Gbps
  • Maximum transfer speed 26.78 Mpps
  • Large frames 15 KB
  • Packet buffer 4 Mbit
  • Power Input Type AC Inlet
  • Basic Power Saving Yes
  • Feeding methods AC
  • Power input 100-240V AC, 50/60Hz
  • Maximum power consumption 7.8W
  • Standby power consumption 4.5W
  • 802.3 Protocols 802.3x Flow Control, 802.3i 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-T, 802.3z 1000BASE-X, 802.3az Energy Efficient Ethernet
  • 802.1 Protocols 802.1p QoS/CoS, 802.1q VLAN Bridge Operation, 802.1ab LLDP/LLDP-MED
  • Port management Port On/Off, Port Negotiation Speed, Static Link Aggregation, Port Mirroring, Data Rate Limiting, Jumbo Frame Settings, Storm Control, Traffic Monitoring, MAC Address Management, EEE (802.3az)
  • Port Mirror Sessions 4
  • Port Trunk Groups 4
  • Max Ports per Trunk Group 8
  • Level 2 (L2) features IGMP Snooping, Loop Prevention, Loop Detection, DHCP Snooping, LLDP Configuration and Neighbors, MTU VLAN, Port-Based VLAN, 802.1Q VLAN, DSCP QoS, 802.1p QoS, Port-Based QoS
  • Grounding Methods Three-Prong Plug, Grounding Point
  • Electromagnetic compatibility IEC/EN 61000-4-2 Level 3 ESD: Contact 6 kV, Air 8 kV; IEC/EN 61000-4-5 Surge: Power DM 4 kV, CM 4 kV; RJ45 CM 6 kV
  • Operating temperature 0 °C to 40 °C (32 °F to 104 °F)
  • Storage temperature −40 °C to 70 °C (−40 °F to 158 °F)
  • Working humidity 10% to 90% non-condensing
  • Storage humidity 10% to 95% non-condensing
  • Control Methods Web Configuration Interface, SNMP v1/v2, Cudy App
  • Software update Local Upgrade
  • Reliability Features Backup and Restore
  • Diagnostic tools Cable Status/Length Diagnosis, Ping
  • Languages English, Bengali, German, Spanish, French, Portuguese, Russian, Arabic, Indonesian, Hindi, Urdu, Traditional Chinese, Simplified Chinese
  • Dimensions 440 × 180 × 44 mm (17.32 × 7.09 × 1.73 in)
  • Product weight 1691.5 g (59.67 oz)
  • Housing material Metal
  • Installation Desktop, Rackmount via Brackets
  • Package contents GS1016ES2, Power Cord, Mounting Kit, Installation Guide

ManufacturerCudy
Manufacturer codeSWITCHCUDYGS1016ES2
Weight2 kg
