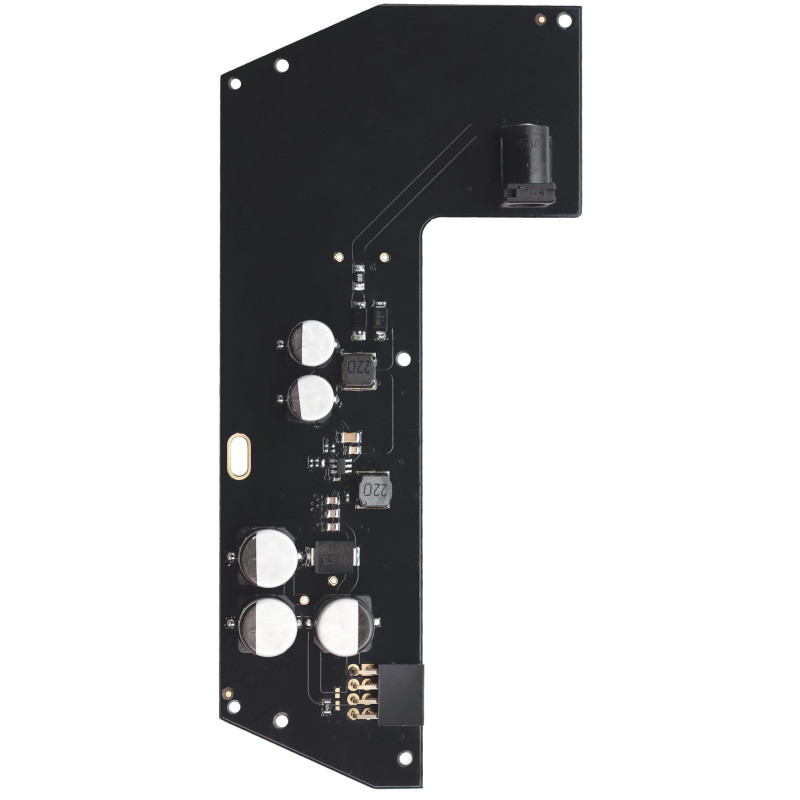

12-24V power supply for Ajax HUB 2 / HUB 2 Plus / ReX 2
Product reference:
26-4823114036989
- Type: 12-24V power supply
- Model: 59359.94.NC
- Compatibility: Hub 2, Hub 2 Plus, ReX 2
- Input voltage: 8-32 V⎓
- Output current: up to 1.5 A
- Installation: inside the housing
- Use: in cars, yachts, campers
12-24V power supply for Ajax HUB 2 / HUB 2 Plus / ReX 2
Product reference:
26-4823114036989
- Type: 12-24V power supply
- Model: 59359.94.NC
- Compatibility: Hub 2, Hub 2 Plus, ReX 2
- Input voltage: 8-32 V⎓
- Output current: up to 1.5 A
- Installation: inside the housing
- Use: in cars, yachts, campers
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
Not available
- Input
- Voltage 8-32 V⎓
- Rated current up to 1 A
- Turn-on voltage 8V⎓ ± 2.5%
- Turn-off voltage 7-7.5 V⎓, Depends on the load
- Output
- Voltage 4.8V⎓ ± 5%
- Rated current up to 1.5 A
- Installation
- Installation method into the hub or range extender enclosure by replacing the bundled power supply board
- Operating temperature range from 14 to 104
- Operating humidity up to 75%
- Connection to the power supply network
- Connector slot 0.26″ × 0.079″, Power jack (female)
- Connection 0.23″ × 0.083″, Power jack (male)
- Board
- Color N/A
- Dimensions 3.9″ × 2.8″ × 0.67″
- Weight 0.917 oz
| Manufacturer | Ajax |
| Manufacturer code | AJAXHHPRPWSUPV |
| Weight | 0.026 kg |
