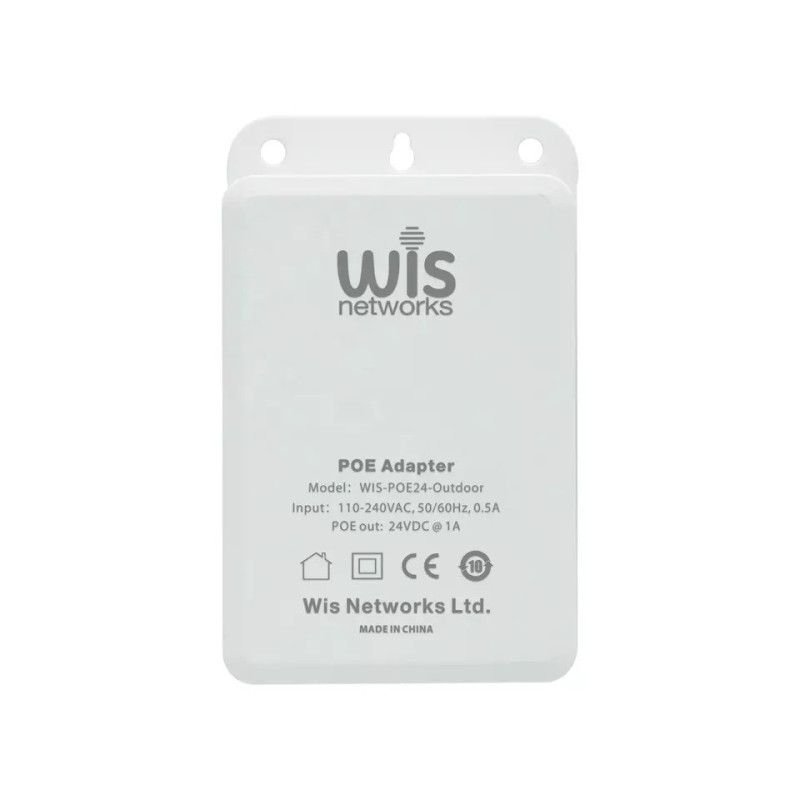

1 PoE port switch WISNET WIS-POE24-Outdoor
Product reference:
26-SWITCHWISWISPOE24O
- 1 PoE port 24V
- WLAN
- PoE power: 60W
- Input: 110-240VAC 1A
1 PoE port switch WISNET WIS-POE24-Outdoor
Product reference:
26-SWITCHWISWISPOE24O
- 1 PoE port 24V
- WLAN
- PoE power: 60W
- Input: 110-240VAC 1A
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
Not available
- Home
- Size 135*80*35mm
- Weight 100g
- Outgoing power supply 24VDC @ 1.0A
- LAN activity indicator NO
- LAN port 10/100Mbps
- Rated voltage 100-240VAC @ 50/60Hz
- Input current 0.4A @ 120VAC, 0.2A @ 240VAC
- Inrush current 60A Peak @ 120VAC, 90A Peak @ 230VAC
- Efficiency 80+%
- Output ripple 1% Max.
- Switching frequency 60kHz Max.
- Line regulation ≤ 3%
- Load regulation ≤ 3%
- Feeding 2 couples Pins 4, 5 (+) and Pins 7, 8 (-)
- Operating temperature 0 to 40°C (32 to 104°F)
- Storage Temperature -30 to 70° C (-22 to 158°F)
- Storage temperature 35 to 95% Non-condensing
- Data IN / POE RJ45 Socket
- Surge protection Difference and Common Mode
- Pinch protection 11V Date, 60V Power
- Max. surge discharge 1500A (8/20 µs) Power
- Maximum impulse current 38A (10/1000 µs) Date
- Shunt capacitance 5 pF date
- Response time 1 ns
| Manufacturer | WIS |
| Manufacturer code | SWITCHWISWISPOE24O |
| Weight | 0.000000 kg |
