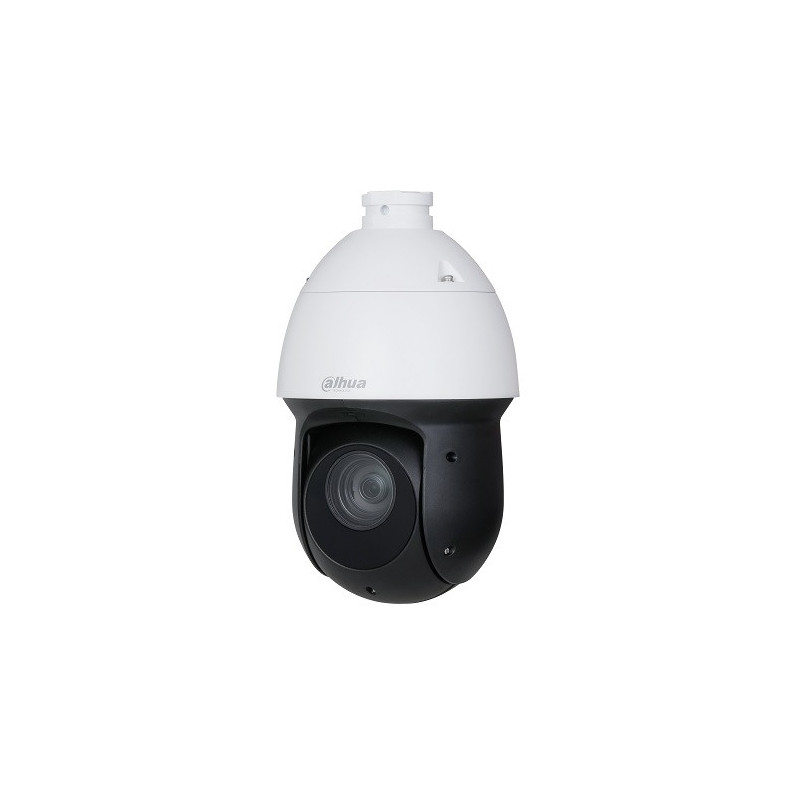

Camera - 8MP PTZ SD49825XB-HNR 25x Zoom IR 100m 360° Pan / Tilt
Product reference:
14-6923172529770
8 megapixel resolution with a maximum resolution of 3840 × 2160 pixels. Key features: 25× optical zoom, IR illumination up to 100 m and 360° panoramic and -15° to +90° tilt angle.
Camera - 8MP PTZ SD49825XB-HNR 25x Zoom IR 100m 360° Pan / Tilt
Product reference:
14-6923172529770
8 megapixel resolution with a maximum resolution of 3840 × 2160 pixels. Key features: 25× optical zoom, IR illumination up to 100 m and 360° panoramic and -15° to +90° tilt angle.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Europe in
4 - 5
business days
8 Megapixel PTZ Camera SD49825XB-HNR
8 megapixel resolution with a maximum resolution of 3840 × 2160 pixels. Features: 25× optical zoom, IR illumination up to 100 m and 360° pan/tilt range from -15° to +90°.
- High-resolution 8 MP images with 4K (3840 × 2160) maximum resolution level, ensuring crystal clear image quality.
- Versatile pan/tilt capabilities with 360° infinite rotation and tilt range from -15° to +90° for comprehensive coverage.
- Advanced features including facial recognition, virtual line, and intrusion detection for improved security monitoring.
- Durable construction with IP66 protection level, weatherproof, operating in temperatures from -40 °C to +70 °C.
Features | |
|---|---|
| Image sensor | 1/2.8' CMOS |
| ROM | 4GB |
| RAM | 1GB |
| Electronic shutter speed | 1/1s-1/30,000s |
| Min. lighting | Color: 0.005 lux@F1.6; B/W: 0.0005 lux@F1.6; 0 lux (IR light on) |
| Number of lights | 4 (AND) |
| Focal length | 5mm-125mm |
| Max aperture | F1.6-F3.6 |
| Field of view | H: 53.1°-3.4°; W: 30.4°-1.9°; D: 59.3°-3.9° |
| Close focus distance | 0.1 m-1.5 m (0.33 ft-4.92 ft) |
| DORI distance | Detect: 2,161.4 m; Track: 864.6 m; Recognize: 432.3 m; Identify: 216.1 m |
| Manual speed | Pan: 0.1°-200°/s; Tilt: 0.1°-120°/s |
| Preset speed | Pan: 240°/s; Tilt: 200°/s |
| PTZ protocol | DH-SD; Pelco-P/D (automatic recognition) |
| Image compression | Smart H.265+; H.265; Smart H.264+; H.264B; H.264M; H.264H; MJPEG (Sub Stream 1) |
| Broadcasting option | 3 streams |
| Video frame rate | Main stream: 4K/4MP/1080p/1.3M/720p (1-25/30 fps); Sub stream 1: D1/CIF (1-25/30 fps) |
| Day/Night mode | Automatic (ICR); Color; B/W |
| Power source | 12 VDC, 3 A (± 10%); PoE+ (802.3at) |
| Power | Basic: 9.8 W; Max.: 20 W (lighting) |
| Operating temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Protection | IP66; TVS 6000 V lightning protection; surge protection; voltage fluctuation protection |
| Product dimensions | 269.9mm × 160mm (10.62' × 6.30') |
| Net weight | 3.0 kg (6.61 lb) |
| Gross weight | 4.3 kg (9.48 lb) |
