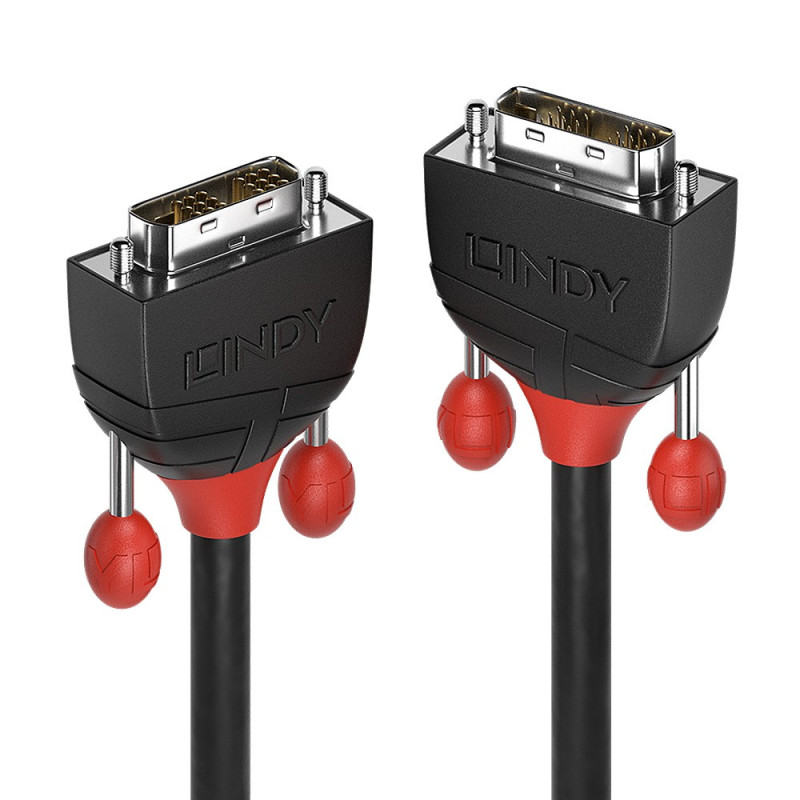

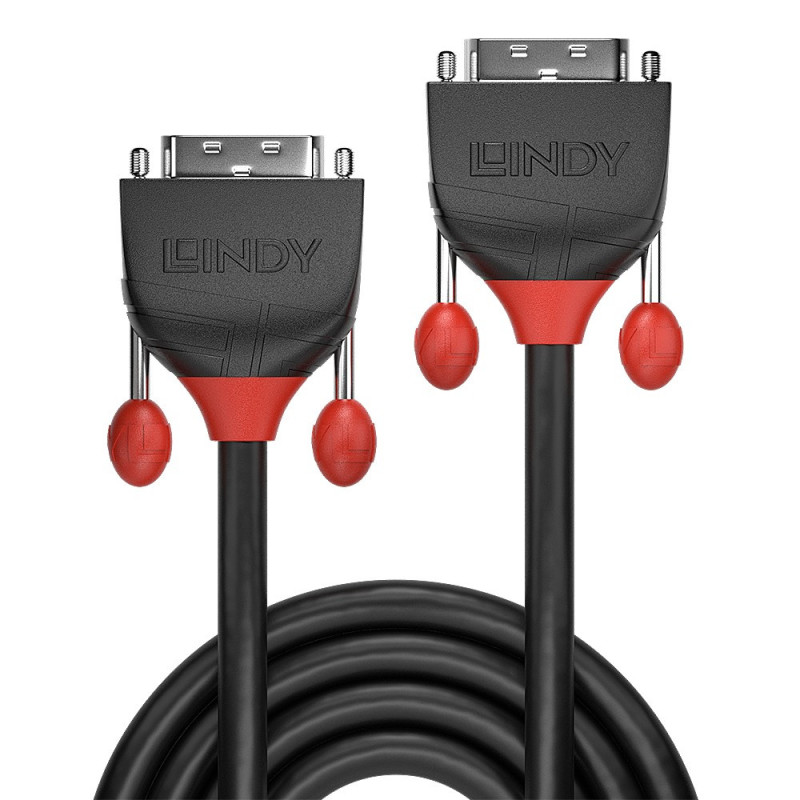

The 1 meter DVI-D Single Link Male to Male cable supports a maximum resolution of 1920x1200 at 60Hz and a bandwidth of 4.95 Gbps. The cable has nickel-plated connectors, tinned copper wires and a PVC jacket.
The 1 meter DVI-D Single Link Male to Male cable supports a maximum resolution of 1920x1200 at 60Hz and a bandwidth of 4.95 Gbps. The cable has nickel-plated connectors, tinned copper wires and a PVC jacket.
Guarantee
24 month
Delivery from Lithuania in
2 - 3
business days
The 1m DVI-D Single Link Male to Male cable supports a maximum resolution of 1920x1200 at 60Hz and a bandwidth of 4.95 Gbps. The cable has nickel-plated connectors, tin-plated copper conductors and a PVC jacket.
Features | |
|---|---|
| Product type | Video cable |
| Model | DVI-D Single Link Cable |
Specifications | |
| Connector A | DVI-D Male (Single Link) |
| Connector B | DVI-D Male (Single Link) |
| Housing material | PVC |
| Pin construction | Brass |
| Pin coating | 24K Gold |
| Cable length | 1m (3.28ft) |
| Shell diameter | 7.3mm (0.29in) |
| Conductor material | Tinned copper |
| Conductor thickness | 28AWG |
| Armor | Aluminum/Magnesium braid 85% |
| Operating temperature | -20°C to 80°C (-4°F to 176°F) |
| Storage temperature | -25°C to 85°C (-13°F to 185°F) |
Additional information | |
| Supported bandwidth | 4.95 Gbps |
| Maximum resolution | 1920x1200@60Hz |
| Nominal attenuation | 1 - 825MHz < 8dB |
| Minimum bending radius | 120mm (4.72in) |
| Packaging type | Poly bag |
| Product compliance | RoHS, REACH, UL |
