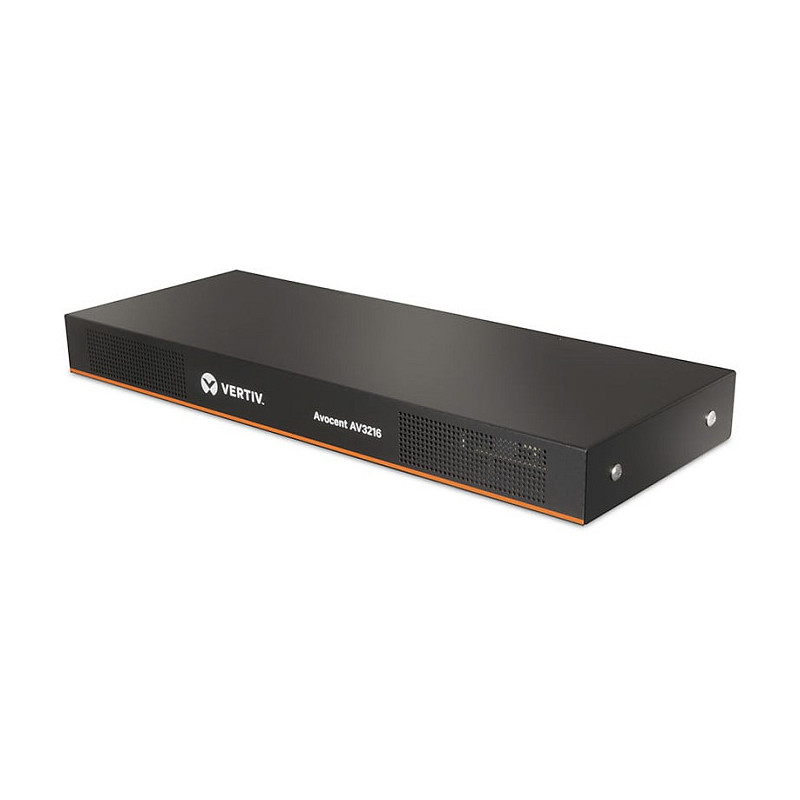

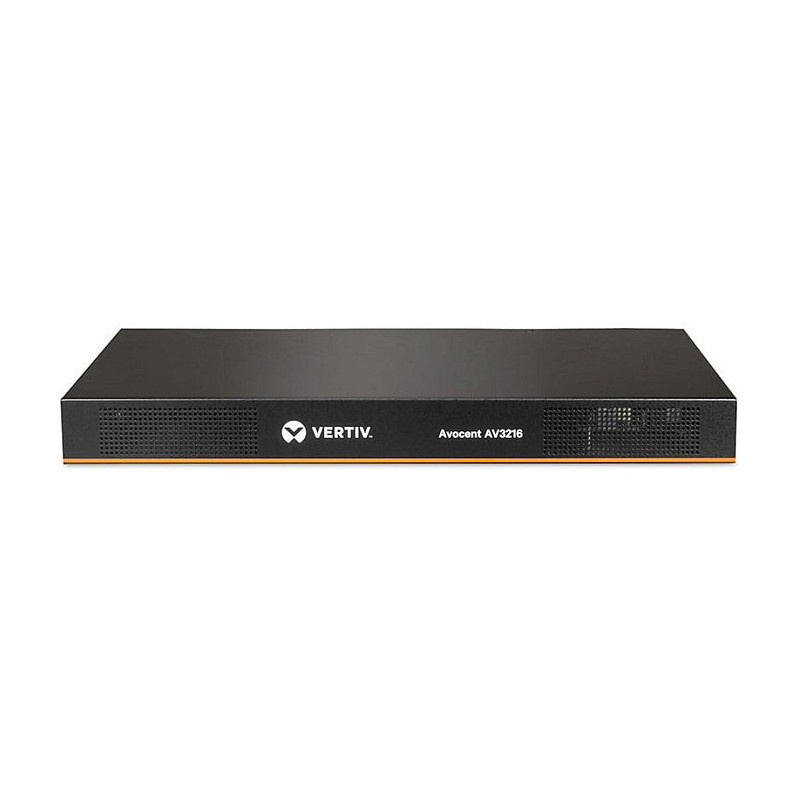

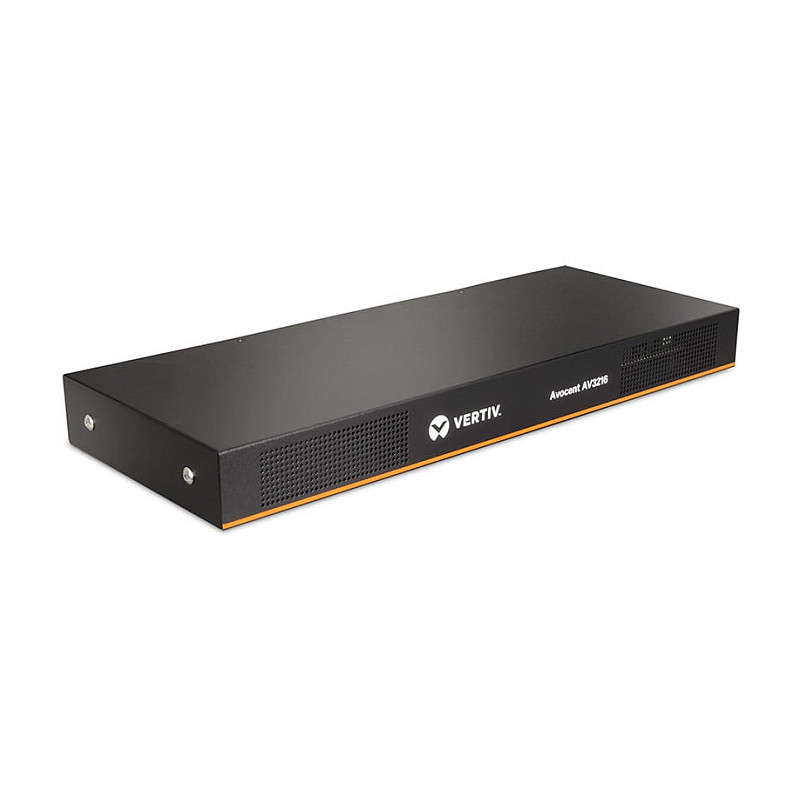

Vertiv Avocent AV 3216 KVM switch

Vertiv Avocent AV 3216. Keyboard port type: USB, Mouse port type: USB, Console ports: RJ-45. Cabling technology: 10/100Base-T(X), Security algorithms: 3DES, AES, 128-bit SSL, DES. Maximum resolution: 1680 x 1050 pixels. Product colour: Black, Rack capacity: 1U, Certification: UL, FCC Class A, cUL, ICES Class A, CE, EAC, VCCI Class A, KCC Class A, C-Tick, BSMI. Power source: AC, Input voltage: 100 - 240 V, AC input frequency: 50/60 Hz

Built for small data centers and remote/branch office environments, the AV 3000 series KVM over IP switch provides consolidated, streamlined access to server resources. Centralize the management of the switches with DSView 4 Management software.

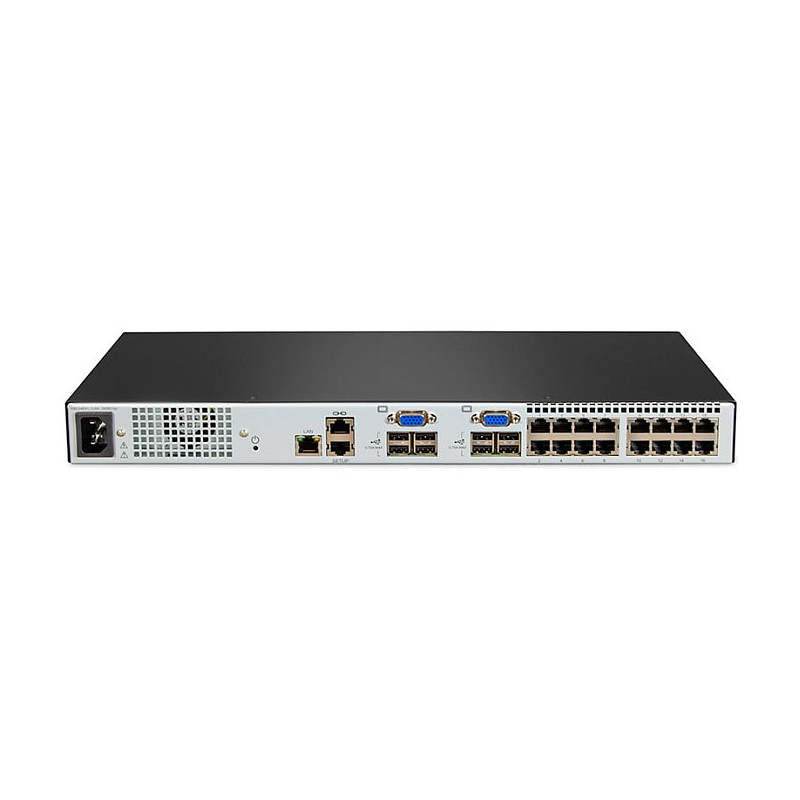

Ports & interfaces

Number of computers controlled: 16
Keyboard port type: USB
Mouse port type: USB
Console ports: RJ-45

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Cabling technology: 10/100Base-T(X)
Security algorithms: 3DES, AES, 128-bit SSL, DES

Performance

Maximum resolution: 1680 x 1050 pixels
Feature: Firmware upgradeable

Design

Feature: Rack mounting
Rack capacity: 1U
Product colour: Black
Certification: UL, FCC Class A, cUL, ICES Class A, CE, EAC, VCCI Class A, KCC Class A, C-Tick, BSMI

Power

Power source: AC
Input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 5 A
Power consumption (typical): 18 W

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 70 °C

Weight & dimensions

Width: 432 mm
Depth: 165 mm
Height: 43.7 mm
Weight: 2 kg

Packaging content

Cables included: AC
Feature: Quick installation guide
Feature: Rack mount kit
